Drive motor assembly – ADC AD-464 User Manual
Page 49
47
Telephone: (508) 678-9000
Fax: (508) 678-9447
Illus. No.
Part No.
Qty.
Description
1
100704
1
1/4” x 1/4” x 1-3/4” Key
2
101144
1
SH x 1-1/8” Bushing
3
101187
1
2B x 3.6 Pulley (for 60 Hz models Only)
101195
1
2B x 4.4 Pulley (for 50 Hz models Only)
4*
100143
2
A29 V-Belt (motor to basket [tumbler] drive shaft)
For 60 Hz Models ONLY
100177
2
AX-29 V-Belt - Heavy Duty (motor to basket [tumbler] drive shaft)
For 60 Hz Models ONLY
100138
2
A30 V-Belt (motor to basket [tumbler] drive shaft)
For 50 Hz Models ONLY
5**
181020
1
5 HP Drive Motor (208-230 240v 3ø 60 Hz)
(230-380 416v 3ø 50 Hz)
6
150508
4
3/8-16 x 3/4” Hex Head Bolt
7
153005
4
3/8” Lock Washer
8
153004
4
3/8” Flat Washer
*
Replace in matched sets (both belts).
** Specify voltage when ordering.

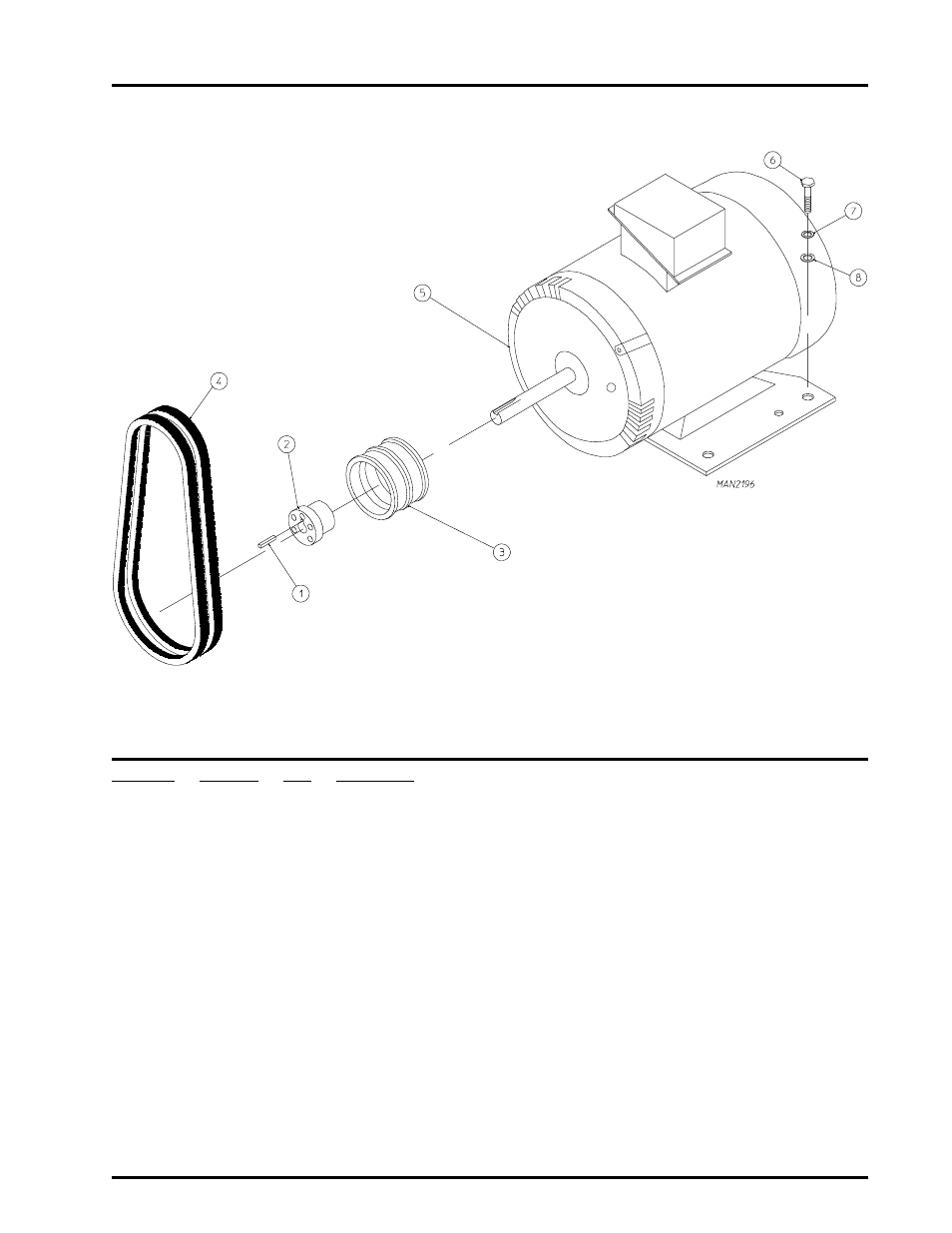

Drive Motor Assembly
