Lower console left hand door assembly, For gas models only – ADC AD-464 User Manual
Page 28
26
American Dryer Corporation
88 Currant Road / Fall River, MA 02720-4781

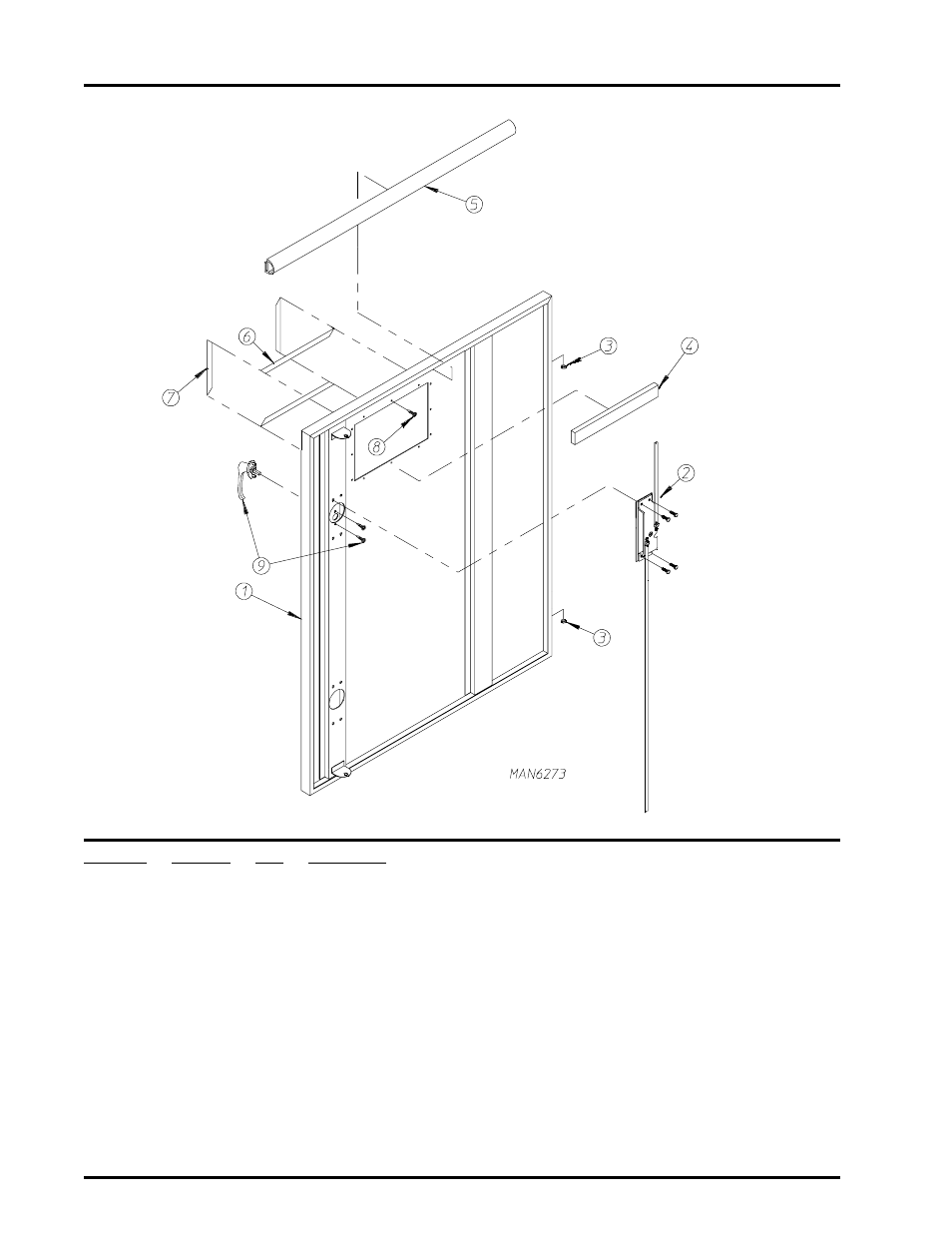

Lower Console Left Hand Door Assembly
Illus. No.
Part No.
Qty.
Description
1*
846779
1
Lower Console Left Door Assembly Complete
(includes illus. nos. 1 through 9)
881365
1
Lower Console Left Door Assembly with Gasket ONLY
(includes illus. nos. 1 and 5)
2
160205
1
2-Point Dead Bolt Latch
3
153068
2
Brass Washer
4
102350
1
68-1/2” Gasket
5
102312
10
Gray Extruded Gasket (sold by the foot)
6
180307
2
Horizontal Trim (sold by the foot)
7
180308
2
Vertical Trim (sold by the foot)
8
150201
12
#10-32 x 1/4” Slotted Pan Head TEK Screw
9
170217
1
Door Handle
* Specify color when ordering.
For Gas Models ONLY
