External pullup resistor, External pullup resistor 8, Tion (see – Badger Meter K-Factor Scaler User Manual

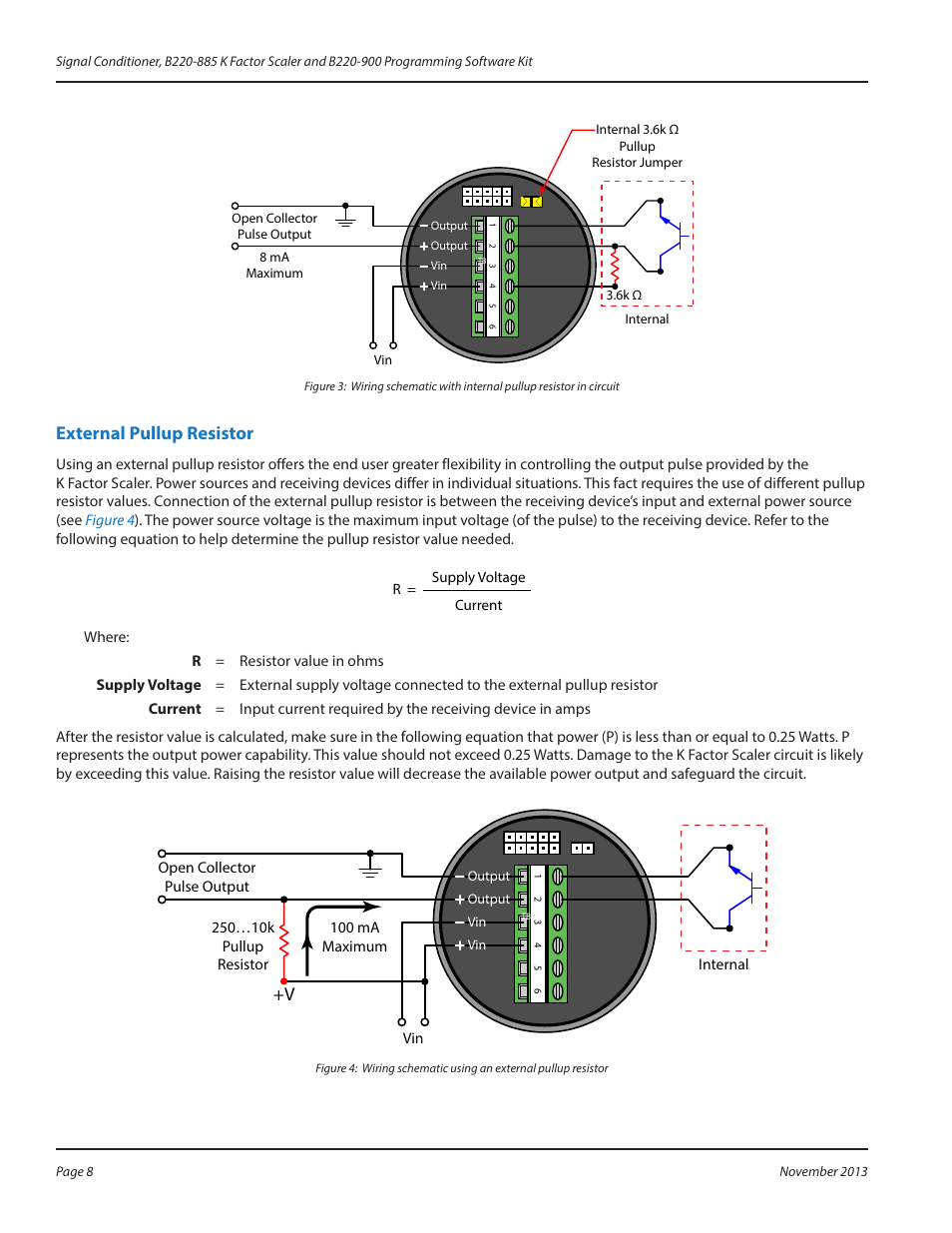

Page 8: Figure 3
