OPERATION
Display Types
34675890 R 2345

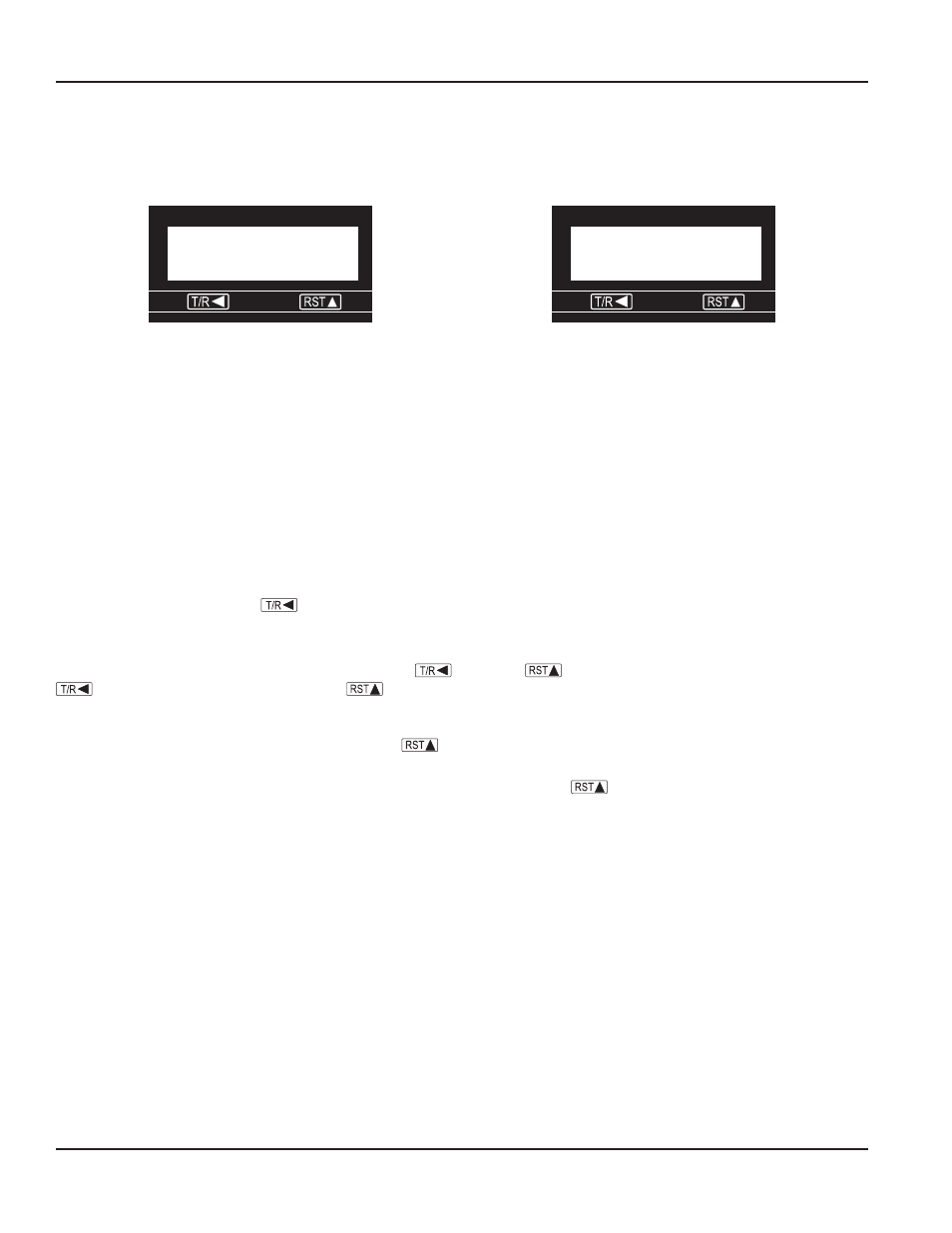

Figure 4: Total display Figure 5: Rate display
Total Display
Total Display indicates the present count value, which is equal to the number of pulses received (since the last reset)
multiplied by the Totalizer Scaler Value in Program Mode 1
Rate Display
Rate Display indicates the rate value, which is equal to the input frequency multiplied by the Rate Prescale Value in
Program Mode 3 If no pulses are received for 2 seconds, the rate value goes to zero
Control Keys
Total/Rate Key
Normal operating mode
When you press the Total/Rate key during normal operation, the ER-10 toggles the display between the Flow Total and
the Flow Rate The letter R on the left of the screen indicates that the Flow Rate is being displayed
Programming mode
To scroll through the menu items, press and hold down then press After choosing a menu item to edit, press
to move through the digits, then press to set the value for the currently selected (flashing) digit
Reset/Select Key
While the Total Value displays, press the Reset/Select key to reset the value to zero The front panel Reset function
works only when Program Mode 6 is preset to enable
When the program input is active (see
“WIRING INSTRUCTIONS” on page 7 ), press to select a menu item for editing
