Wiring instructions, Wiring terminals, Transmitter connections – Badger Meter Test Equipment User Manual

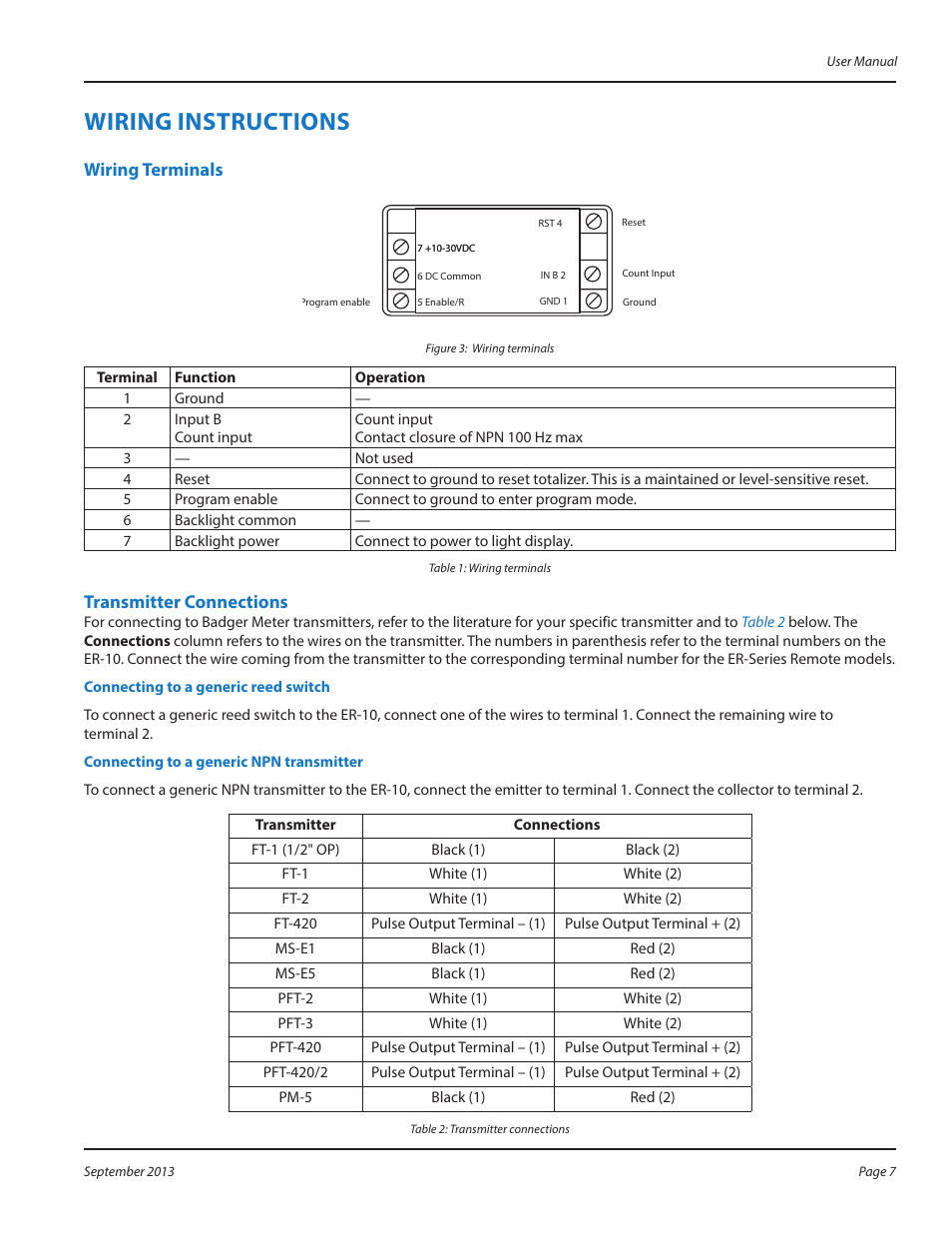

Page 7: Wiring instructions 7, Wiring terminals 7 transmitter connections 7
