ULTIMA WATER COOLED Chillers
32
Chillers
Technical Manual : Part No 6259477 V1.4.0_07_2014
Installation Data

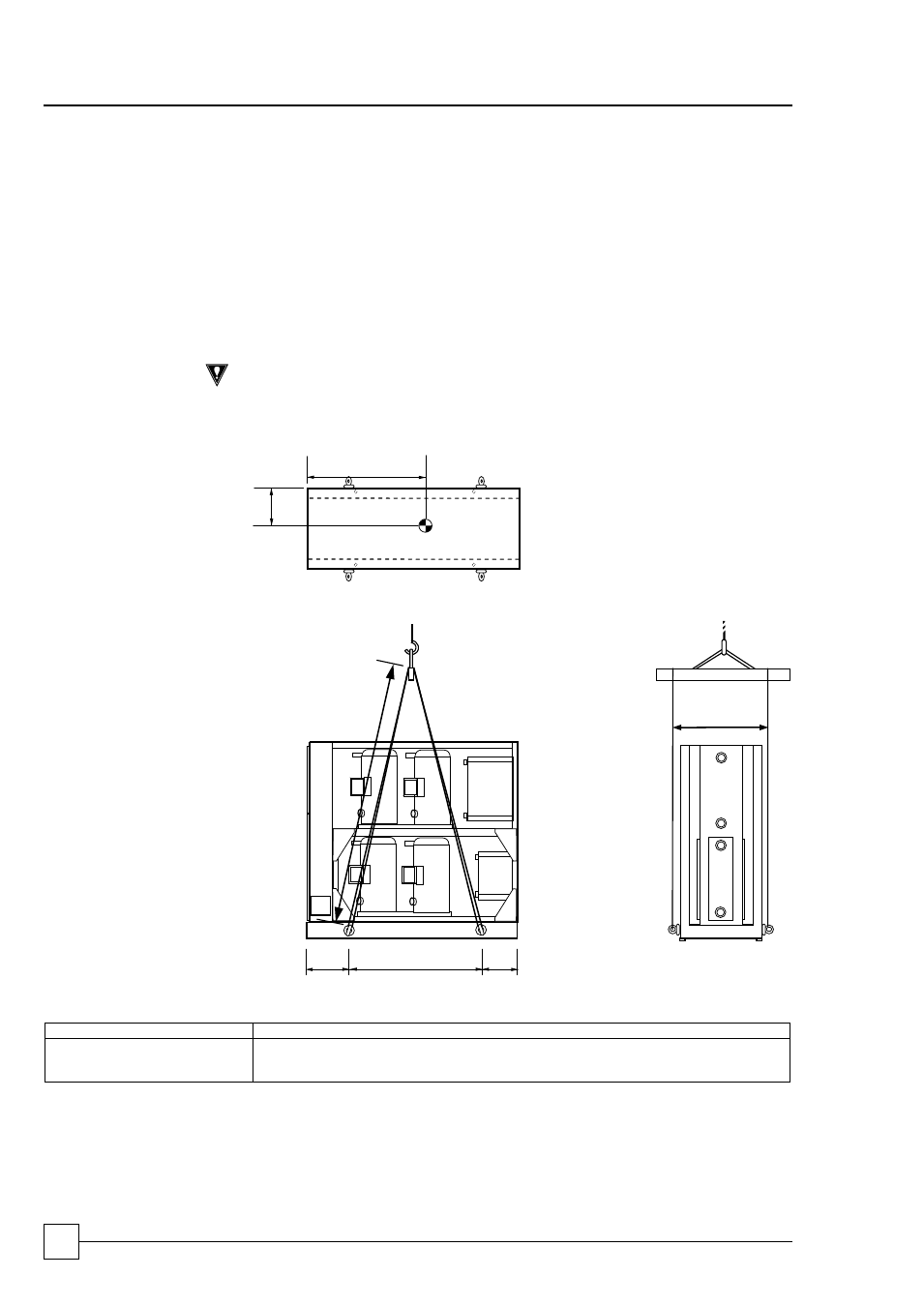

UNIT LIFTING 
Employ lifting specialists.

Local codes and regulations relating to the lifting of this type of equipment should
be observed.

Use the lifting eye bolts provided.

Use the appropriate spreader bars/lifting slings with the holes/lugs provided.

Attach lifting chains to the 4 lifting eye bolts, each chain and eye bolt must be
capable of lifting the whole chiller.

Lift the unit slowly and evenly.

If the unit is dropped, it should immediately be checked for damage and reported
to Airedale Service.
CAUTION Only use lifting points provided.
The unit should be lifted from the base and where possible, with all packing and
protection in position. If any other type of slinging is used, due care should be taken to
ensure that the slings do not crush the casework or coil.
K L M
P1
P2
P3
P4
C of G2
C of
G
1
P N
LIFTING DIMENSIONS
K L M N P
UWC 75 - 125 mm 370 1060 370 2100 850
UWC 150 - 250 (Ex. 240) mm 370 1260 370 2100 850
UWC 240 - 450 (Ex. 250) mm 885 1900 415 2100 990
