ULTIMA WATER COOLED Chillers
30
Chillers
Technical Manual : Part No 6259477 V1.4.0_07_2014
General Specification

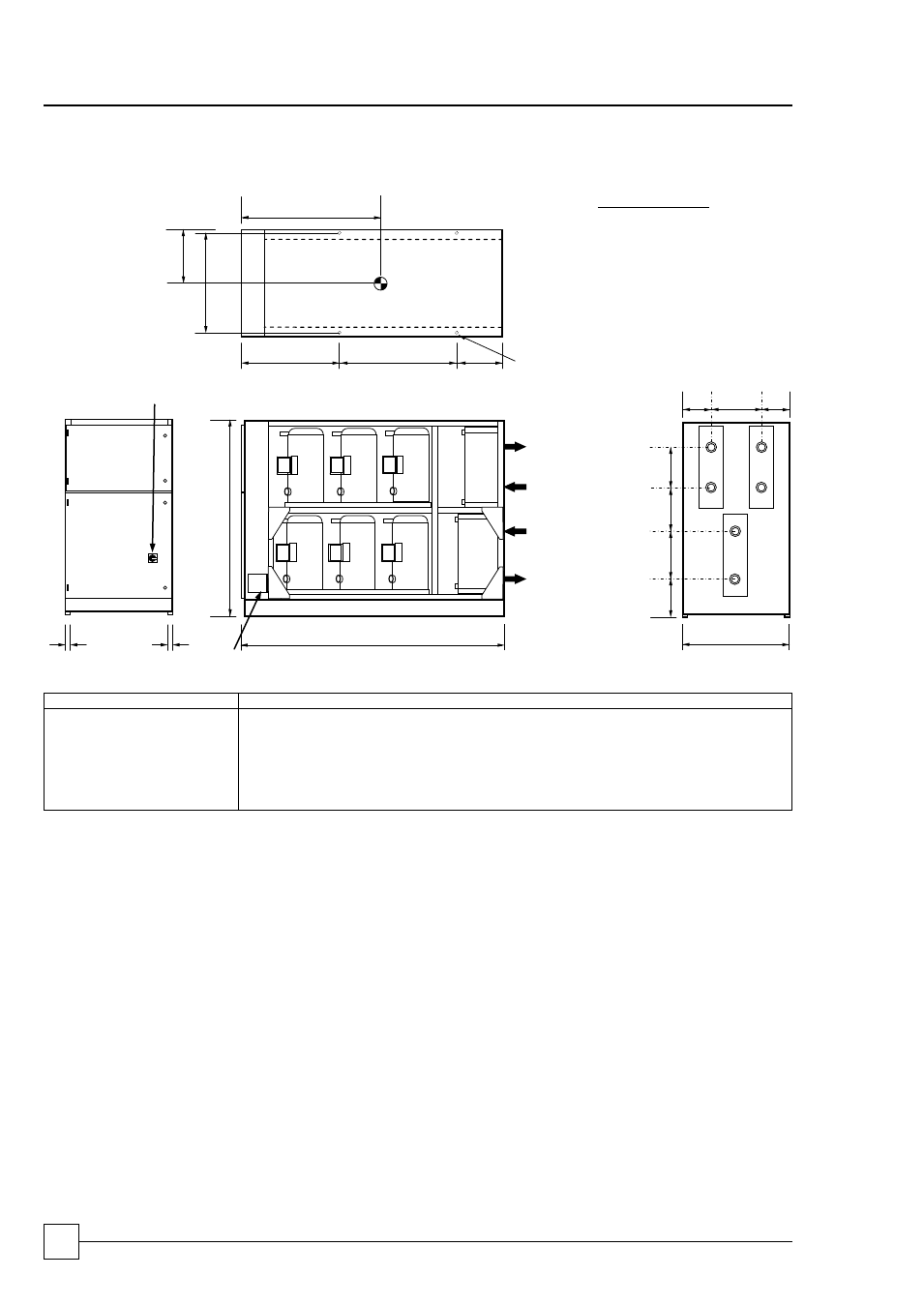

DIMENSIONS UWC240 – UWC450 (EXCEPT UWC250)
20mm Ø
Mounting Holes
Condenser
Water Out
Condenser
Water in
Evaporator
Water Out
Evaporator
Water in
A 900
1900
F
E
D
C
B
G H J
P1
P2
P3
P4
C of G2
C of
G
1
Mains Electric
Isolator
Mains Cable
Entry
Controls
Panel
Water Connections
UWC240 - 450 Evap 80mm
(Ex. 250) Cond 80mm x 2
50 50
250 250 400
Model Size A B C D E F G H J
UWC240 mm 3200 256 628 269 628 850 970 1730 500
UWC270 mm 3200 256 628 269 628 850 970 1730 500
UWC300 mm 3200 256 628 269 628 850 970 1730 500
UWC330 mm 3200 256 628 269 628 850 970 1730 500
UWC360 mm 3200 256 628 269 628 850 970 1730 500
UWC400 mm 3200 256 628 269 628 850 970 1730 500
UWC450 mm 3200 256 628 269 628 850 970 1730 500
