Page 32
28

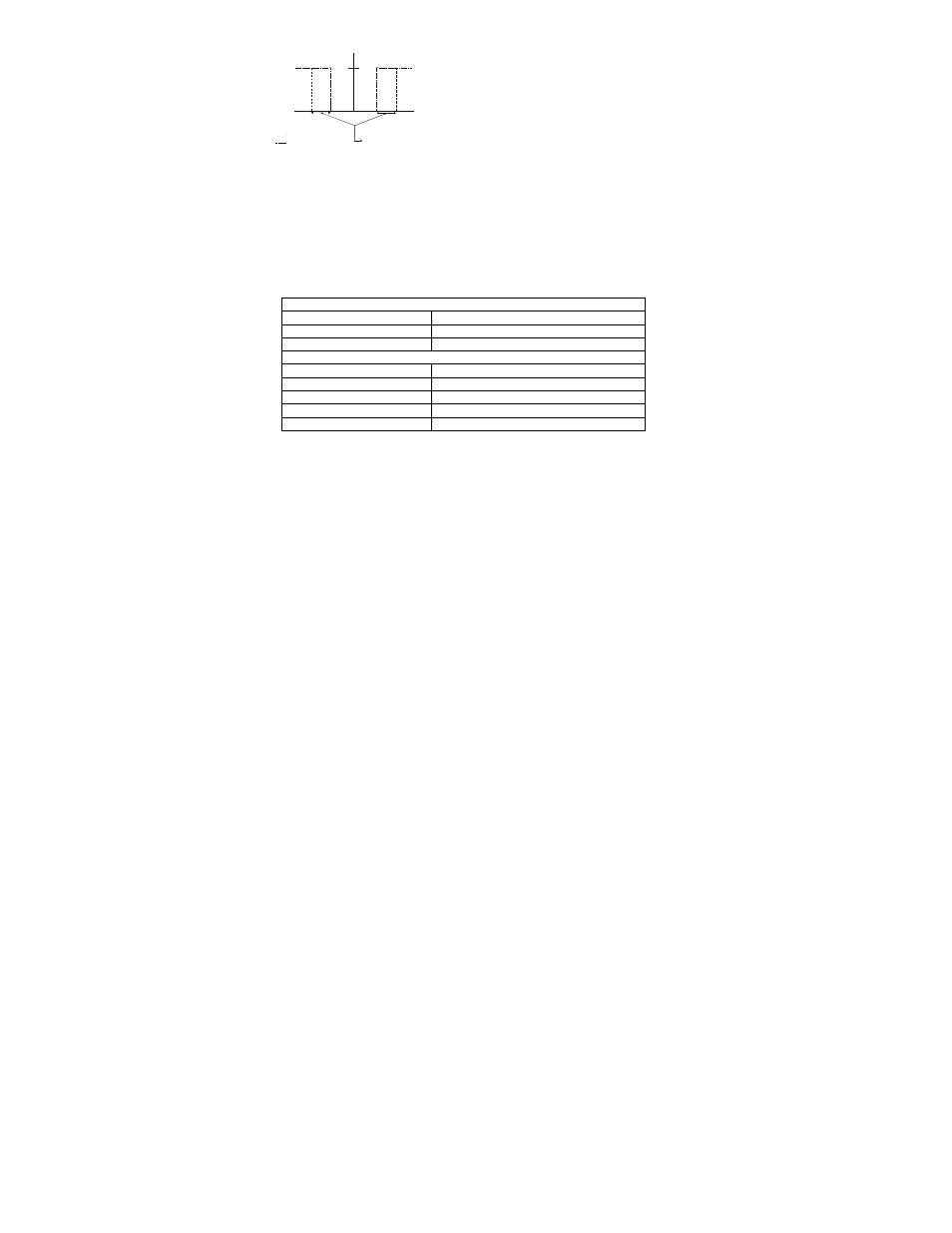

Appendix 1: Simple Explanation on the Function of Hysteresis
The controller relay activates when the set-point is
reached. In the reverse direction, it does not de-
activate when the value reaches the set-point. Instead,
it continues to be active till the value reaches the
amount set by the Hysteresis band.
Appendix 2: Factory Defaults
Resetting the controller to factory default settings (See program P8.0) clears all
calibration data and most other setup functions.
The following settings will remain unchanged:
1.
Measurement range
2.
Temperature compensation mode (ATC or MTC)
3.
Temperature offset calibration value, if in ATC mode.
Conductivity Defaults
TDS range
Remains unchanged at last selected range
Set point 1
10% full scale / Hyst. 5% full scale / Low
Set point 2
90% full scale / Hyst. 5% full scale / High
Temperature Defaults
Temp. Compensation mode
remains unchanged
MTC mode
reset to 25
o
C if in MTC mode
ATC mode
remains at last calibration if in ATC mode
Temperature Coefficient
2.10 %
Normalization Temperature
25.0
o
C
1 0 0
1 2 0
1 8 8 0 1900
R E L A Y O F F
H Y S T E RESIS BAND
F
O
R
W
A
R
D
D
I
R
E
C
T
I
O
N
R
E
V
E
R
S
E
D
I
R
E
C
T
I
O
N
S
P 1
S
P 2
R E L A Y O N
S P 1 S e t t o L O
S P 2 S e t t o H I
μS
