6
3.4 Panel-mounting the controller
The supplied mounting hardware allows surface mounting to all panels and protective
enclosures. Mounting cut-out size is 91 x 45 mm.
To attach the mounting to the controller:
1. Align the catch to the side of the controller, and insert threaded rods through catch.
2. Screw the threaded-rod through the catch in a clock-wise direction. Tighten until the
catch holds the controller firmly against the back of the panel or protective housing.
Repeat on the other side.

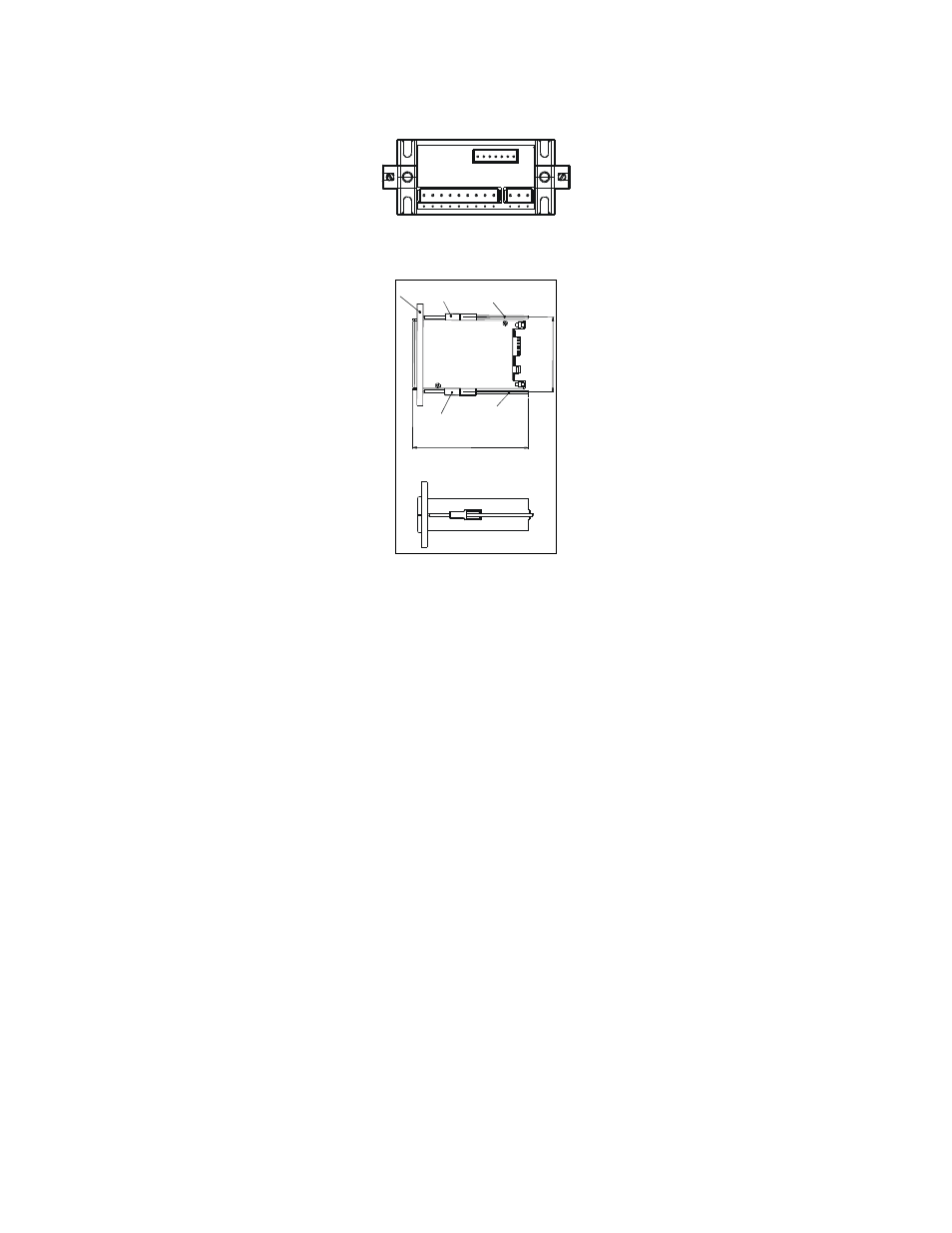

SIDE VIEW
TOP VIEW
ap pro x. 15 4.2 0
a p p ro
x . 1
0 0
W
a ll
p a
C
a tc
h
T h re
a d e d
C
a tc
h
T
h re
a d e d r o d
