13
How to change the HI and LO values from the TNP torque meter?
• To set the HI and LO limits from the TNP torque meter access the function
mode. (See section VII).
• Power off the torque meter

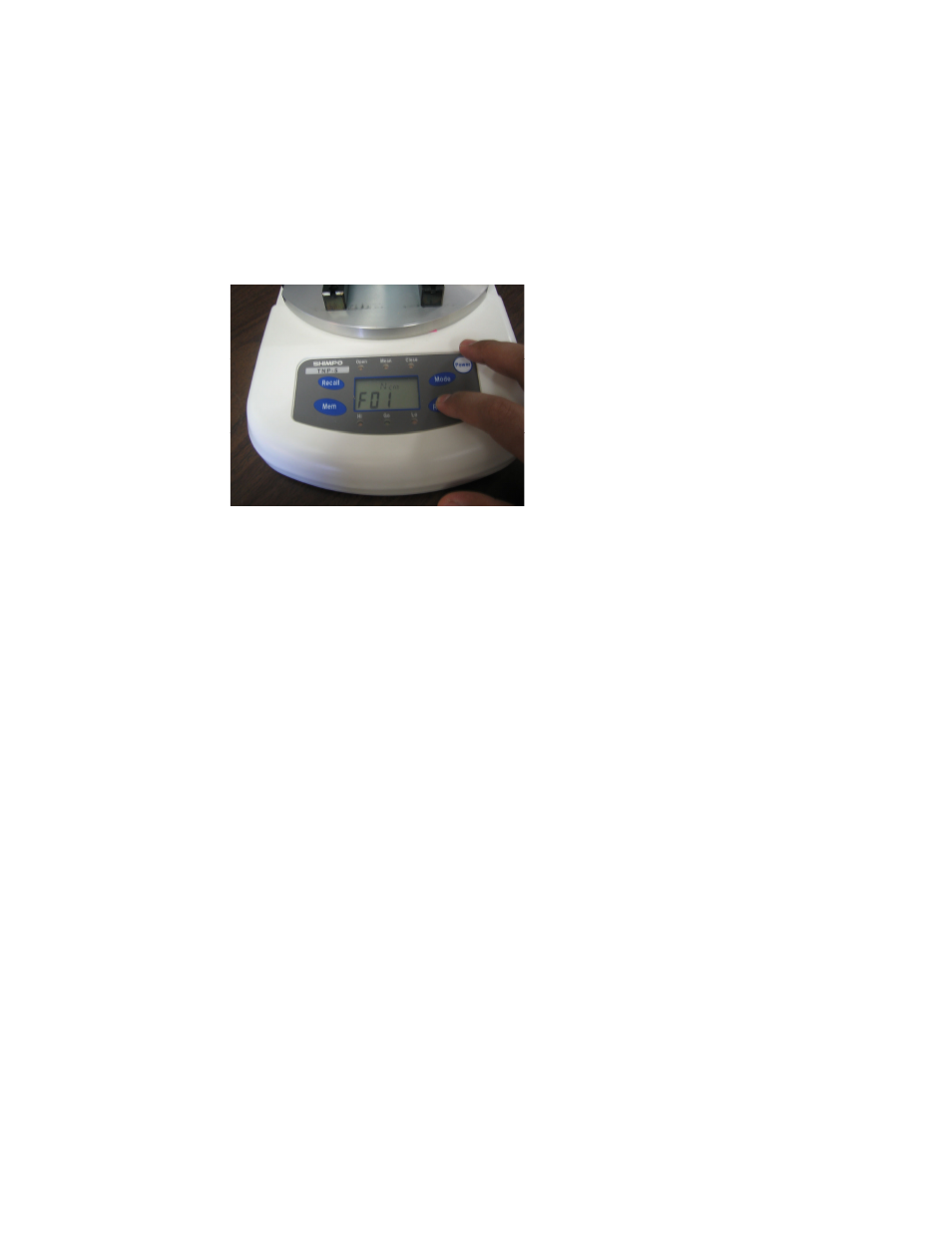

• Press and hold the Zero/RST key then power on the torque meter.
• Continue to hold on the Zero/RST key until the main display shows F01
• Press the Zero/RST key until the main display shows HI limit
• Using the Recall key we can increment the highlighted digit from 0-9.
• Press the Mem key to move from left to right or to the next digit.
• Entering values that are invalid the display will blink momentarily indicating
wrong values entered to the HI and LO limits. (HI>LO, HI=LO).
After entering the LO limit value and pressing the Zero/RST button the
torque tester will go back to normal operation.
