Physical Features

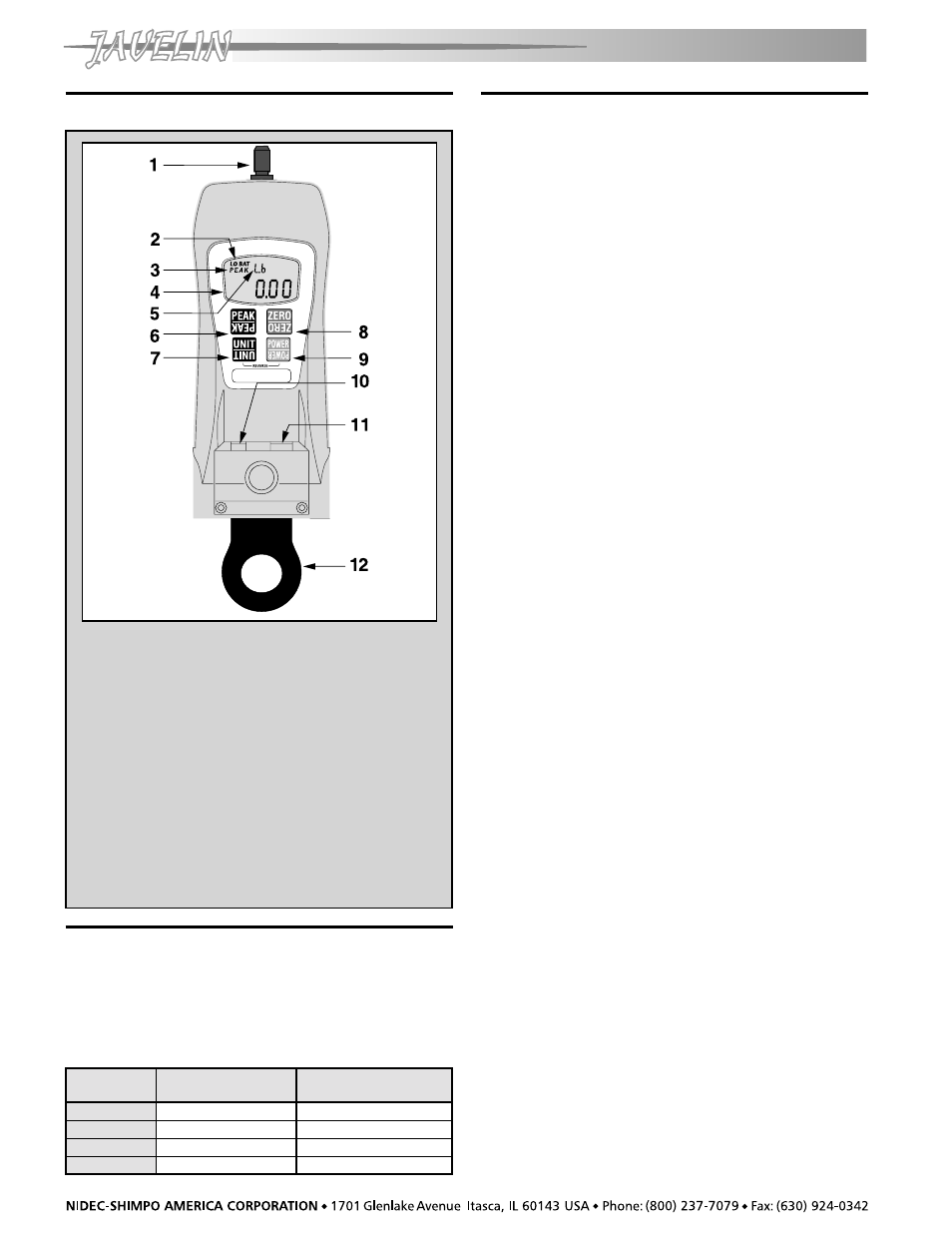

NO. DESIGNATION
1. Sensor Shaft
2. Low Battery Indicator
3. Peak Indicator
4. Main Display
5. Small Display
6. Peak Button
7. Unit Button
8. Tare and Zero Button
9. Power (ON, OFF) switch
10. AC Adapter Port
11. Data Output Port (FGV-HX only)
12. Hanger
Factory Setting
The FGE/V-HX will revert to factory setting when the
gauge is first powered on. Consult the “Function Setting”
section to customize these default settings.
The following chart reflects the default settings as
programmed by the factory:
FUNCTION FUNCTION FUNCTION FUNCTION FUNCTION DEF DEF DEF DEF DEFAAAAAUL UL UL UL ULT F T F T F T F T FACTORY ACTORY ACTORY ACTORY ACTORY
NUMBER NUMBER NUMBER NUMBER NUMBER DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION SET SET SET SET SETTING TING TING TING TING
f01 Plus or Minus sign 0001 (plus for compression)
f02 Display update time 3 (3 times/sec)
f03 Auto power off 10 (min)
f04 Baud rate of RS-232C 2400 (bps)
Operation
1. Charge the batteries for approximately 18 hours before
using the gauge (Batteries come discharged from the
factory). The BAT indicator is on when batteries are
charging, off when the batteries are fully charged.
2. Hand tighten appropriate attachment to unit’s
measuring shaft (do not use a wrench or any other
device to tighten the attachment).
3. Press POWER and release. The unit will display model
name in small display and capacity in main display and
then will show some zeros with the last one or two
digits changing to some random numbers. Also the
unit of measurement (lb, Kg or N) will appear above
the digits and stay as long as the instrument is on.
Change Display Units
To change the display units, just press UNIT and the units
will change every time the button is pressed.
Reverse the Display
If unit is used with the hanger or mounted on a test stand
and the display must be reversed, follow this procedure:
1. Press POWER and hold it; display will go blank.
2. Press and hold UNIT.
3. Release POWER while you are still holding UNIT;
display is still blank.
4. Press POWER once more and release it while still holding
UNIT. At this point you should see the display reversed.
5. Release UNIT; the display stays in that mode.
To go back to normal mode repeat steps 1 through 5.
Select Average or Peak
If you want to measure force in real time (average) the
display will show only the digits and units of the force
being measured. If you want to measure “peak” force:
1. Press PEAK; the word PEAK will appear in the upper
left corner of the display. (If you need a minus peak,
press PEAK again.)
2. The display will freeze after capturing the peak force.
3. Press ZERO to cancel previous peak and continue with
your tests.
If you want to go back to average mode press PEAK again.
The word PEAK will disappear from the display.
NOTE: It is very important that you measure forces
(tension or compression) that are in line with the
measuring shaft and not at any angle (see figure 1).
Failure to observe this directive will damage the
instrument. Also, after the gauge is positioned and ready
to take a measurement (with the proper attachment in
place) tare the unit by pressing ZERO. To clear the display
for another measurement (in PEAK mode), press ZERO.
lb ! N ! Kg !
