NOSHOK 800 Series Electronic Indicating Pressure Transmitter/Switch User Manual
Page 4

3

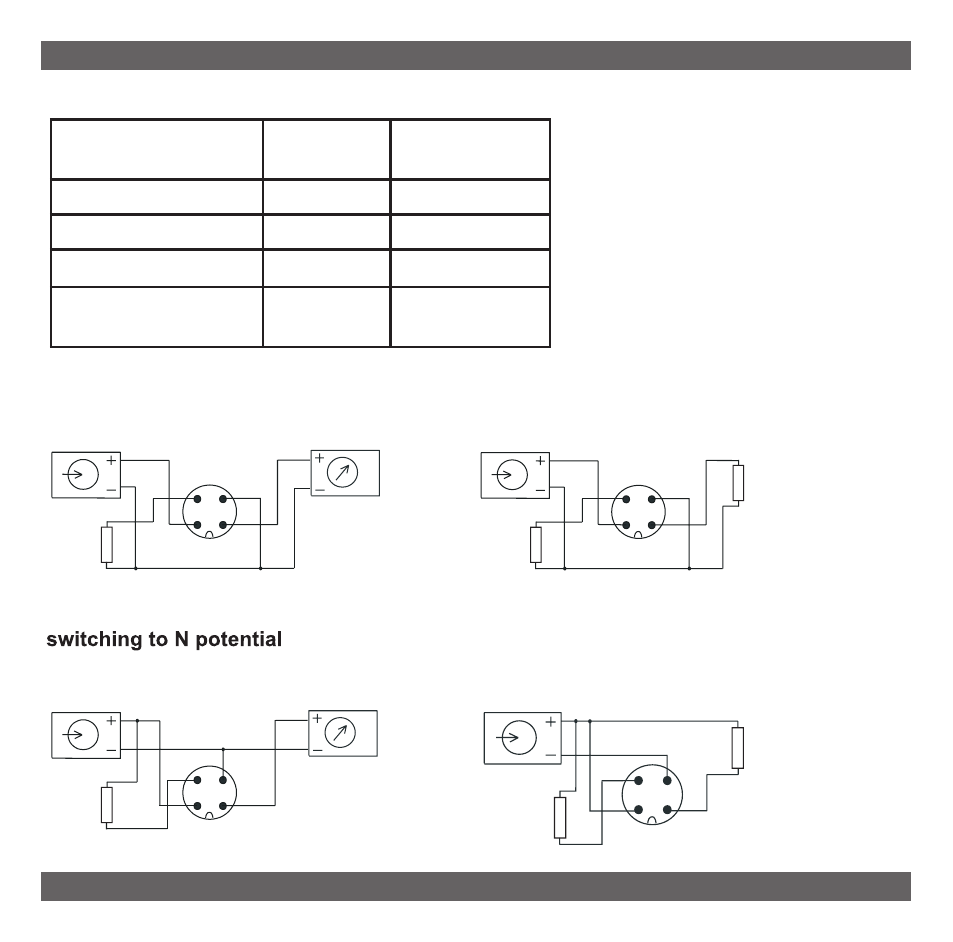

switching to P potential
1 switching output and 1 analog output
2 switching outputs
1 switching output and 1 analog output
2 switching outputs
We recommend our accessories:
M12x1 socket with 2m cable
• straight version, order no.: FS-2-4P
• angled version, order no.: FA-2-4P
+ Supply
S1
1
- Supply
2
3
4
R
L
Sig
+ Supply
S1
1
- Supply
2
3
4
S2
R
1
R
2
+ Supply
- Supply
S1
S2
1
2
3
4
R
1
R
2
3
+ Supply
S1
1
- Supply
2
3
4
R
L
Sig
Signal
Connector
Colors of
Optional Wires
Supply: +
1
brown
Supply: -
3
blue
Switch output S 1
4
black
Switch output S 2 or
analog output
2
white
Round Connector M 12 x 1 (4-pin)
N
( 4 and 6 meter cables also available)
