Instrument layout, Front view – KYORITSU 6305 Quick Manual User Manual
Page 5
−
4 −
KEW6305
KEW6305

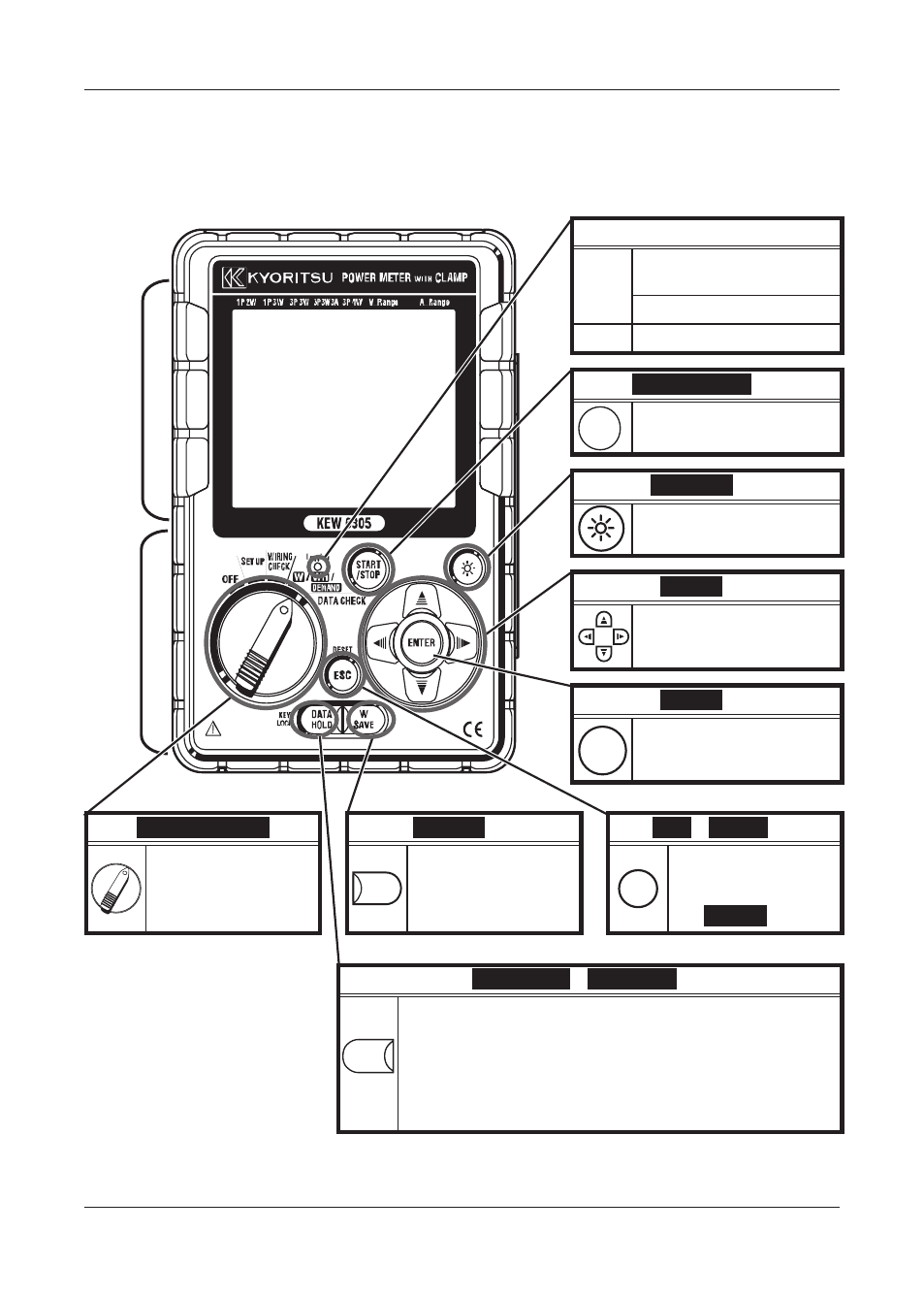

Instrument Layout
2. Instrument Layout
Front view
Display
（
LCD）
Keys
Status indicator LED
Green
Light up: Recording&
Measuring
Blink: Stand-by
Red
Light up: Recording error
START/ STOP
Key
START
/STOP
Start/stop integration &
demand measurements
Backlight
Key
Turn on/off the LCD
backlight
Cursor
Key
Select settings,
switch screens
ENTER
Key
ENTER
Confirm entries
Function Switch
W SAVE
Key
ESC
/
RESET
Key
Power on/ off, select
Measurement range.
W
SAVE
Save measured
instantaneous values
ESC
Cancel setting change
or clear integration/
demand data selected
with
Cursor
Key
DATA HOLD
/
KEY LOCK
Key
DATA
HOLD
Freeze the readings on the LCD.
* Measurement is being performed while the readings are
being fixed.
A long press (2 sec or longer) disables all Keys (except for
Backlight Key) to prevent operational errors in recording.
Another long press (2 sec or longer) can restore the disabled
Keys.
