6-5 IR
PI/DAR
Measurement
At IR
PI/DAR
measurement, PI/ DAR values are automatically calculated and
displayed. During a measurement, values of current being measured and
capacitances measured at discharging after measurement are displayed.
(1) Setting items
Setting items for IR
PI/DAR
are as follows.
● Measurement duration:
Measurement automatically stops when the preset time period passes.
● Output voltage :
For 2500V/ 5000V Range, voltage value is adjustable to – 20% of rated voltage,
can be set by 5%.
For 500V (250V) Range, either 500V or 250V is selectable.
● Breakdown/ Burn :
Either Breakdown or Burn mode is selectable. (For 250V, Burn mode only)

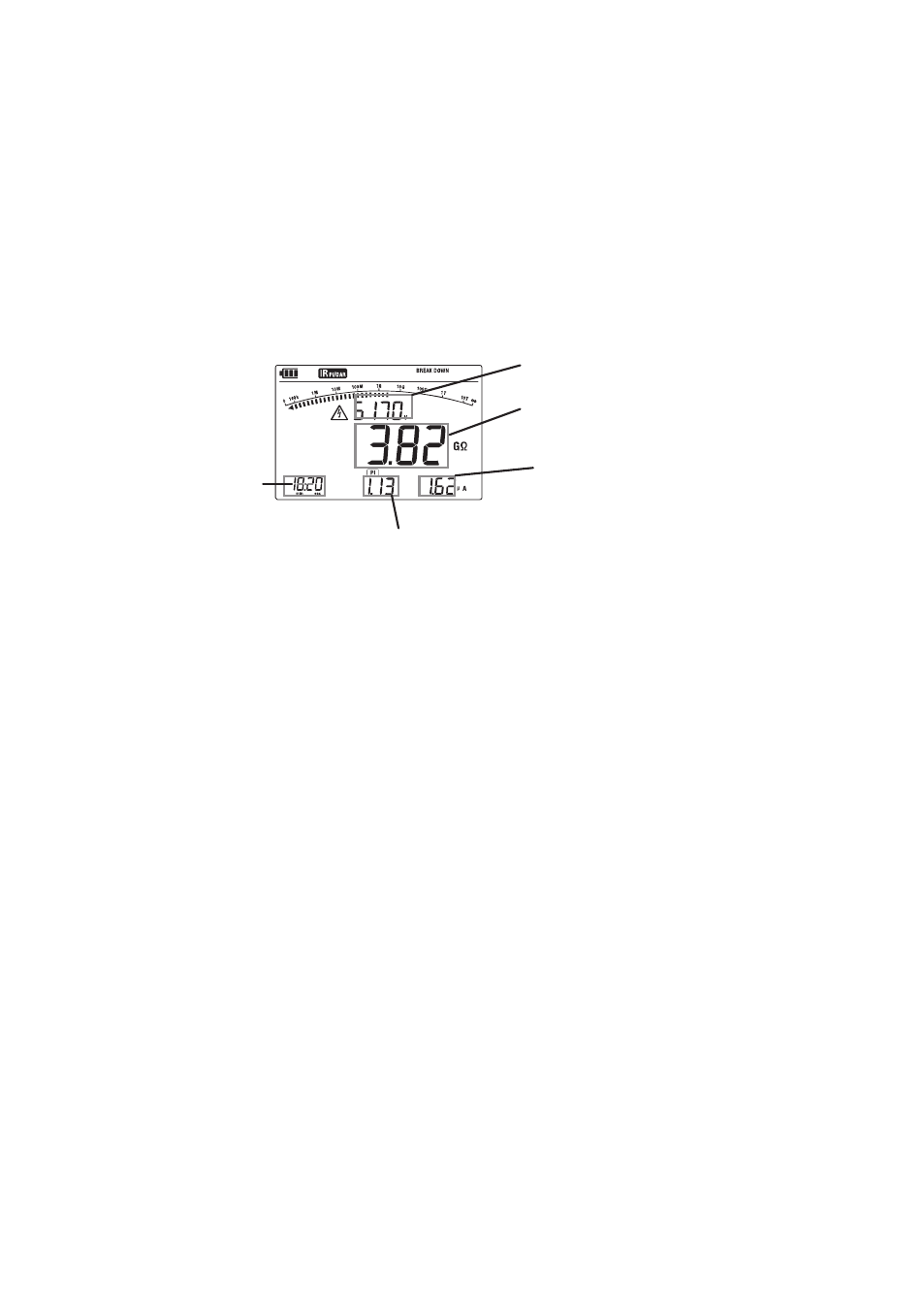

Resistance value
During measurement:
Output current
End of measurement:
Capacitance
DAR or PI value
Time when
a test ends
Output voltage
IR
PI/DAR
Measurement Result
