TECHNICAL DATA
6
47
OPTIMASS 2000
www.krohne.com 10/2010 - 4000810002- MA OPTIMASS 2000 R02 en

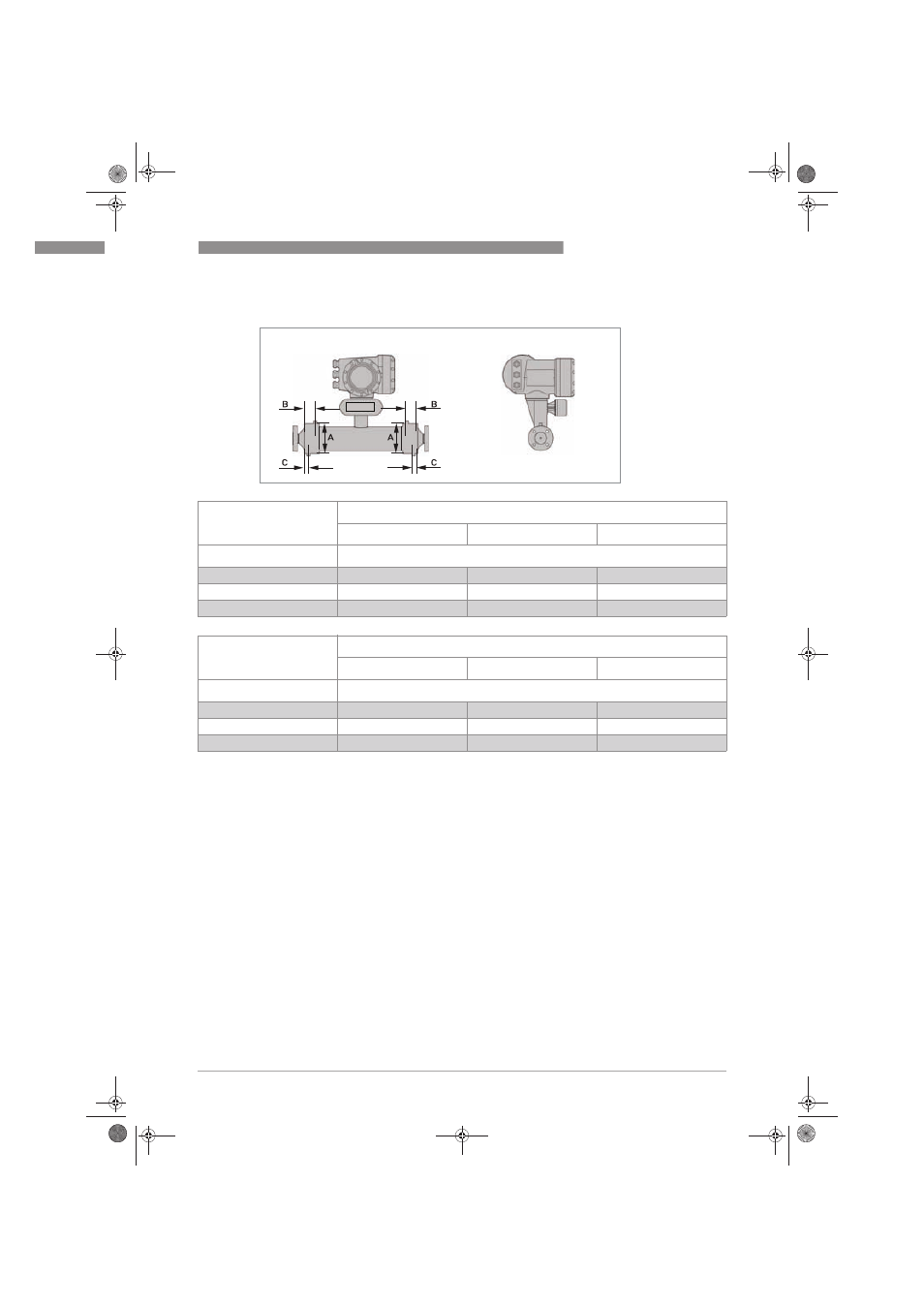

6.5.3 Heating jacket version
Dimensions [mm]
S100 S150 S250
Heating connection size 25 mm (ERMETO)
A 254 ±2.5 355 ±2.5 444 ±2.5
B 178 ±2.0 228 ±2.0 208 ±2.0
C 28 ±2.0 28 ±2.0 6.5 ±2.0
Dimensions [inches]
S100 S150 S250
Heating connection size 1" (NPTF)
A 10 ±0.1 14 ±0.1 17.5 ±0.06
B 7 ±0.08 9 ±0.08 8.2 ±0.08
C 1.1 ±0.08 1.1 ±0.08 0.25 ±0.08
