6

TECHNICAL DATA

30

OPTIMASS 2000

www.krohne.com

10/2010 - 4000810002- MA OPTIMASS 2000 R02 en

Technical data

6.1 Measuring principle (twin tube)

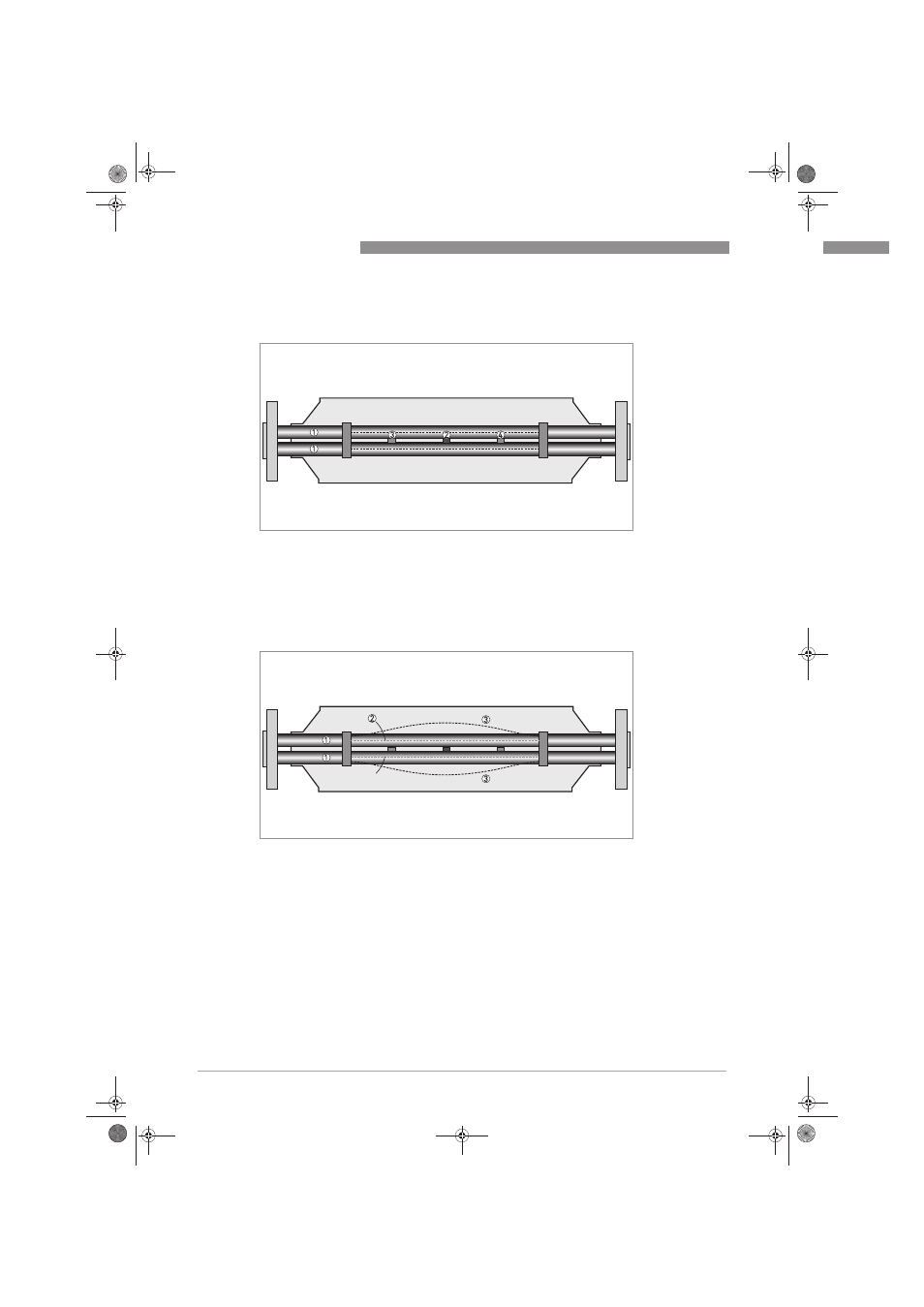

A Coriolis twin tube mass flowmeter consists of two measuring tubes 1 a drive coil 2 and two
sensors (3 and 4) that are positioned either side of the drive coil.

When the meter is energised, the drive coil vibrates the measuring tubes causing them to
oscillate and produce a sine wave 3. The sine wave is monitored by the two sensors.

Static meter not energised and with no flow

1 Measuring tubes
2 Drive coil
3 Sensor 1
4 Sensor 2

Energised meter

1 Measuring tubes
2 Direction of oscilation
3 Sine wave

MA_OPTIMASS2000_en_101022_4000810002_R02.book Page 30 Monday, November 22, 2010 5:47 PM
