INSTALLATION

3

21

OPTIMASS 2000

www.krohne.com

10/2010 - 4000810002- MA OPTIMASS 2000 R02 en

Maximum end loadings

• These (axial) loads have been calculated, based on 316L schedule 80 process pipework,

where un-radiographed butt welds have been used in pipe joints.

• The loads shown are the maximum permitted static load. If loads are cycling (between

tension and compression) these loads should be reduced. For advice, consult the
manufacturer.

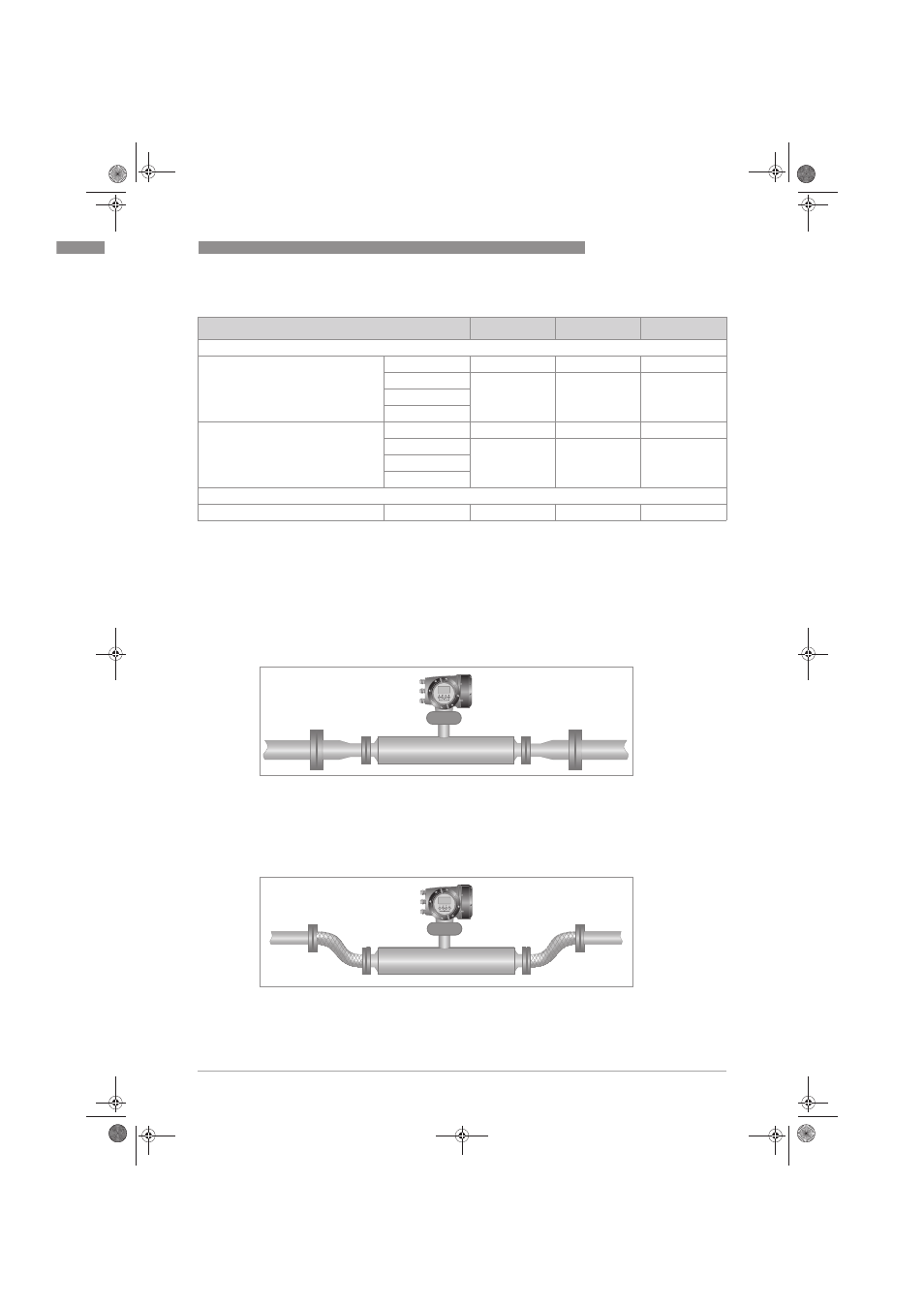

3.4.7 Pipework reducers

Always avoid extreme step changes in pipe size. Use pipework reducers, where there is a large
difference between pipework size and meter flanges.

3.4.8 Flexible connections

S100

S150

S250

Flanges

Flanges

Flanges

Flanges

20°C

40 barg

150kN

350kN

550kN

100 barg

100kN

120kN

60kN

150 barg

180 barg

130°C

32 barg

150kN

280kN

400kN

80 barg

60kN

50kN

50kN

115 barg

130 barg

Hygienic (all connections)

Hygienic (all connections)

Hygienic (all connections)

Hygienic (all connections)

130°C

10 barg

5kN

-

-

MA_OPTIMASS2000_en_101022_4000810002_R02.book Page 21 Monday, November 22, 2010 5:47 PM
