7
TECHNICAL DATA
36
OPTITEMP TRA-CXX
www.krohne.com 02/2014 - 4003290501 - MA OPTITEMP TRA-Cxx R01 en
7.3 Dimensions
7.3.1 Compact sensors
The dimensions for the compact sensors given in this subsection are standard measurements.
Upon request the manufacturer can supply devices with other dimensions.
OPTITEMP TRA-C10

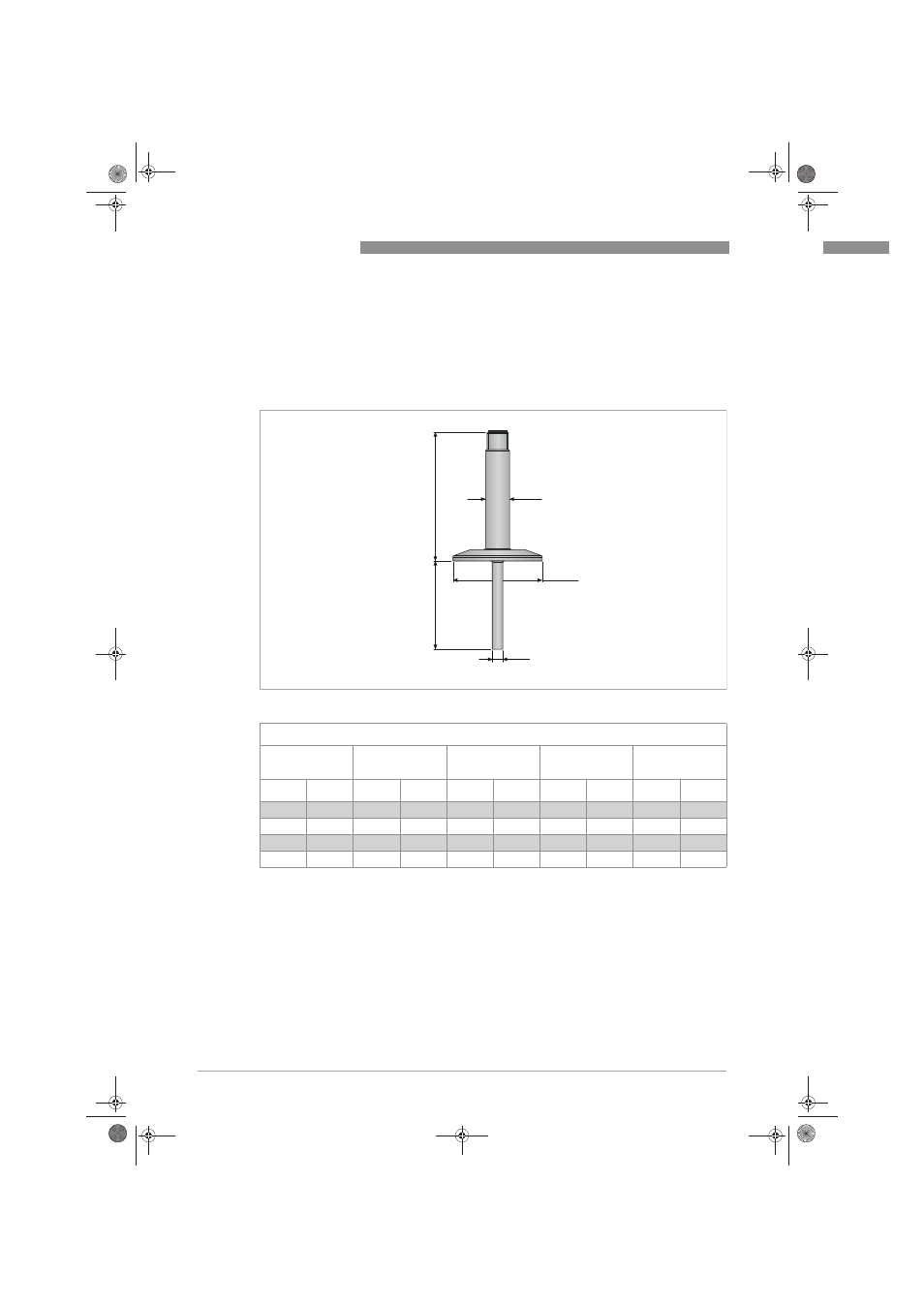

Figure 7-2: Dimensions of OPTITEMP TRA-C10
TRA-C10
"a" (insertion
length)
"b" (thermowell
diameter)
"c" (housing
length)
"d" (housing
diameter)
"e" (flange
diameter)
[mm] ["] [mm] ["] [mm] ["] [mm] ["] [mm] ["]
50 1.97 6 0.24 73 2.87 13.5 0.53 50.5 1.99
100 3.94 6 0.24 73 2.87 13.5 0.53 50.5 1.99
50 1.97 6 0.24 88 3.46 13.5 0.53 50.5 1.99
100 3.94 6 0.24 88 3.46 13.5 0.53 50.5 1.99
d
e
a
b
c
