3.6.2 Flange sensor
The compact flange sensor can be installed using a ISO 2852 DN25/38 clamp, for example, as
shown in the following drawing:

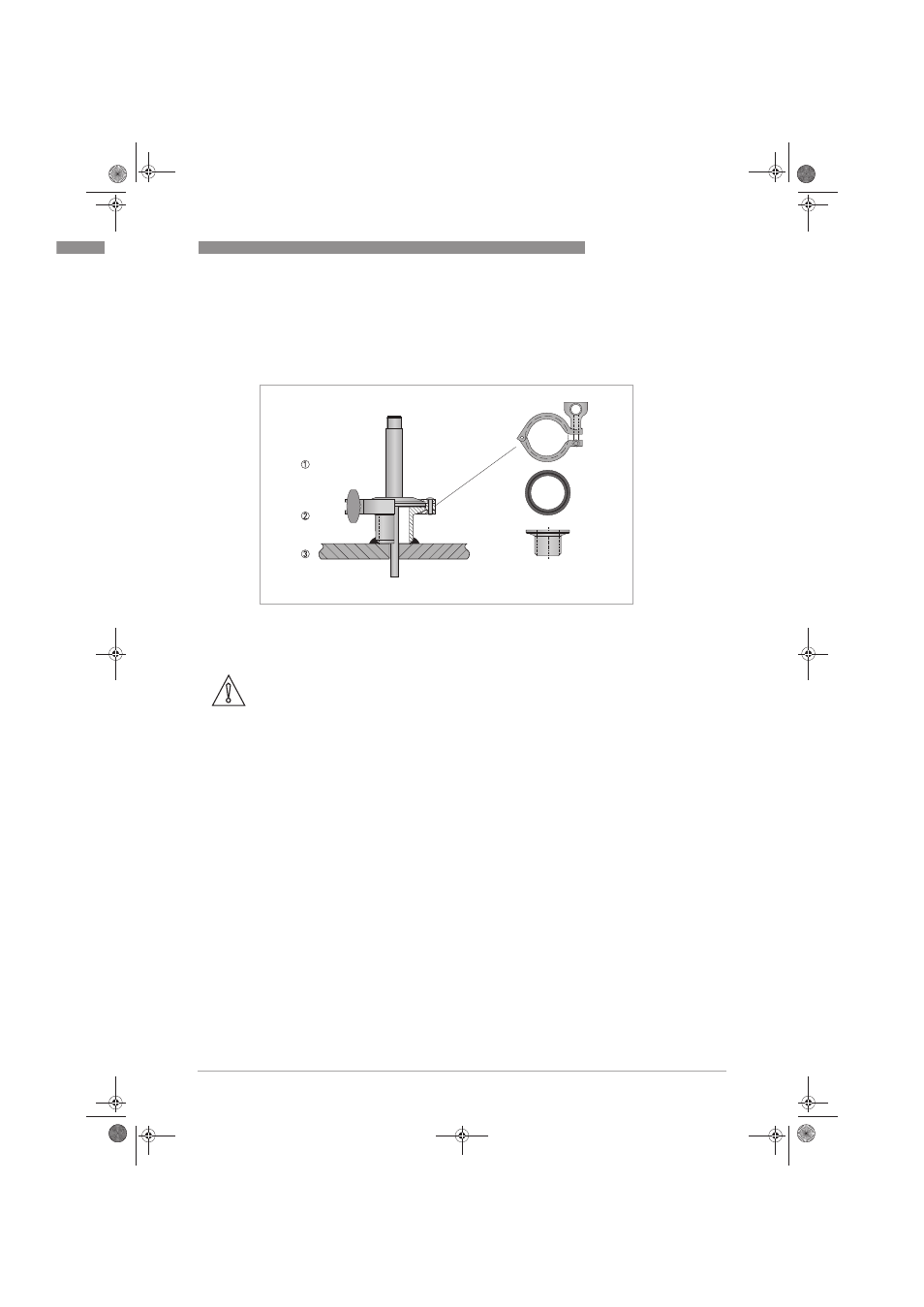

Figure 3-4: Installing a compact sensor with a ISO 2852 DN25/38 clamp
1 Housing
2 ISO 2852 DN25/38 clamp
3 Application wall
CAUTION!
You, the user, are responsible for selecting a suitable sealing material for the process
connection, not the manufacturer! When installing the seals to the process connection, always
ensure a good fit!
