ALTOFLUX IFM x080 K-EEx and ALTOFLUX IFM x080 K / i-EEx

Types of protection of primary head

Meter size

Type of protection

DN2.5 up to DN15

Field coils:

Increased safety "e" according to EN 50019

Encapsulation "m" according to EN 50028
Electrodes:

Intrinsic safety "ib" according to EN 50020

DN25 up to DN80

Housing:

Flameproof enclosure "d" according to EN

50018
Electrodes:

Intrinsic safety "ib" according to EN 50020

The IFC 090/…-EEx signal converter (described in Sect. 1.4-1.5) is mounted on top of the
primary head by four recessed head screws of size M6 with internal hexagonal socket set.

Note
The intrinsically safe electrode circuits of the IFM 6080K/…-EEx compact flowmeter are only
internal circuits and not accessible for the customer.

The two field coils inside the primary head are connected in series and provided with the

type of protection increased safety "e" and encapsulation "m" (DN2.5-15). Meter size

DN25-80 has a flameproof primary housing.

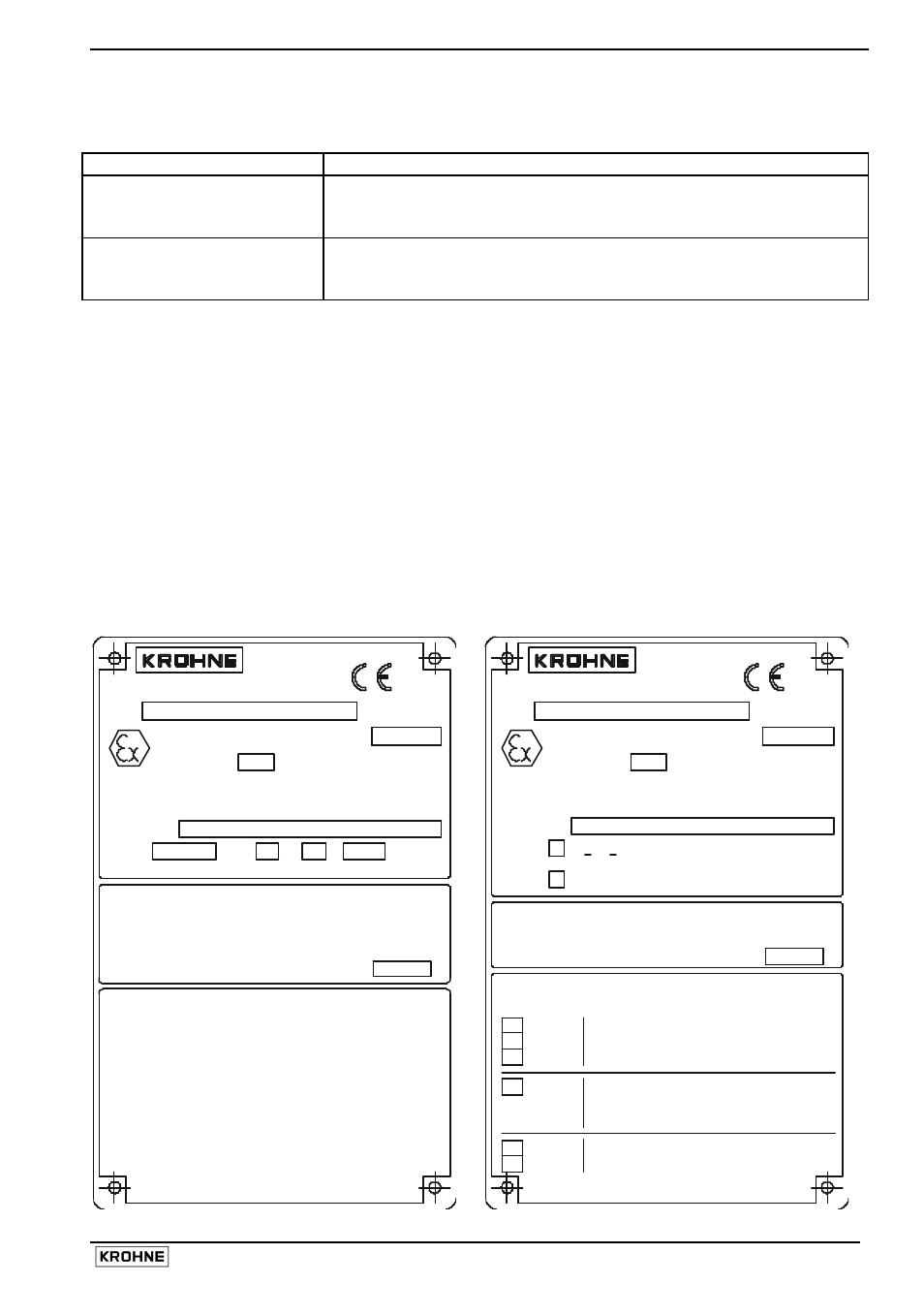

Data plates of ALTOFLUX IFM 6080 K

IFM 6080 K … EEx

IFM 6080 K / i … EEx

DO NOT OPEN ENCLOSURE WHILE ENERGIZED !

MAX. SHORT-CIRCUIT CURRENT OF MAINS:

10VA Um=253V

ENCLOSURE: T6 %%242 20 MIN.; T5 %%242 11 MIN.

WAITING TIME BEFORE OPENING OF THE FLAMEPROOF

INTRINSICALLY SAFE CIRCUITS: ELECTRODE CIRCUIT,

ONLY INTERNAL CONNECTIONS.

AMBIENT TEMPERATURE: -40...+60%%DC.

SEE CERTIFICATE FOR MAXIMUM TEMPERATURES.
