TECHNICAL DATA
7
25
OPTITEMP TT 20
www.krohne.com 10/2011 - 4000753102 - MA OPTITEMP TT 20 R02 en

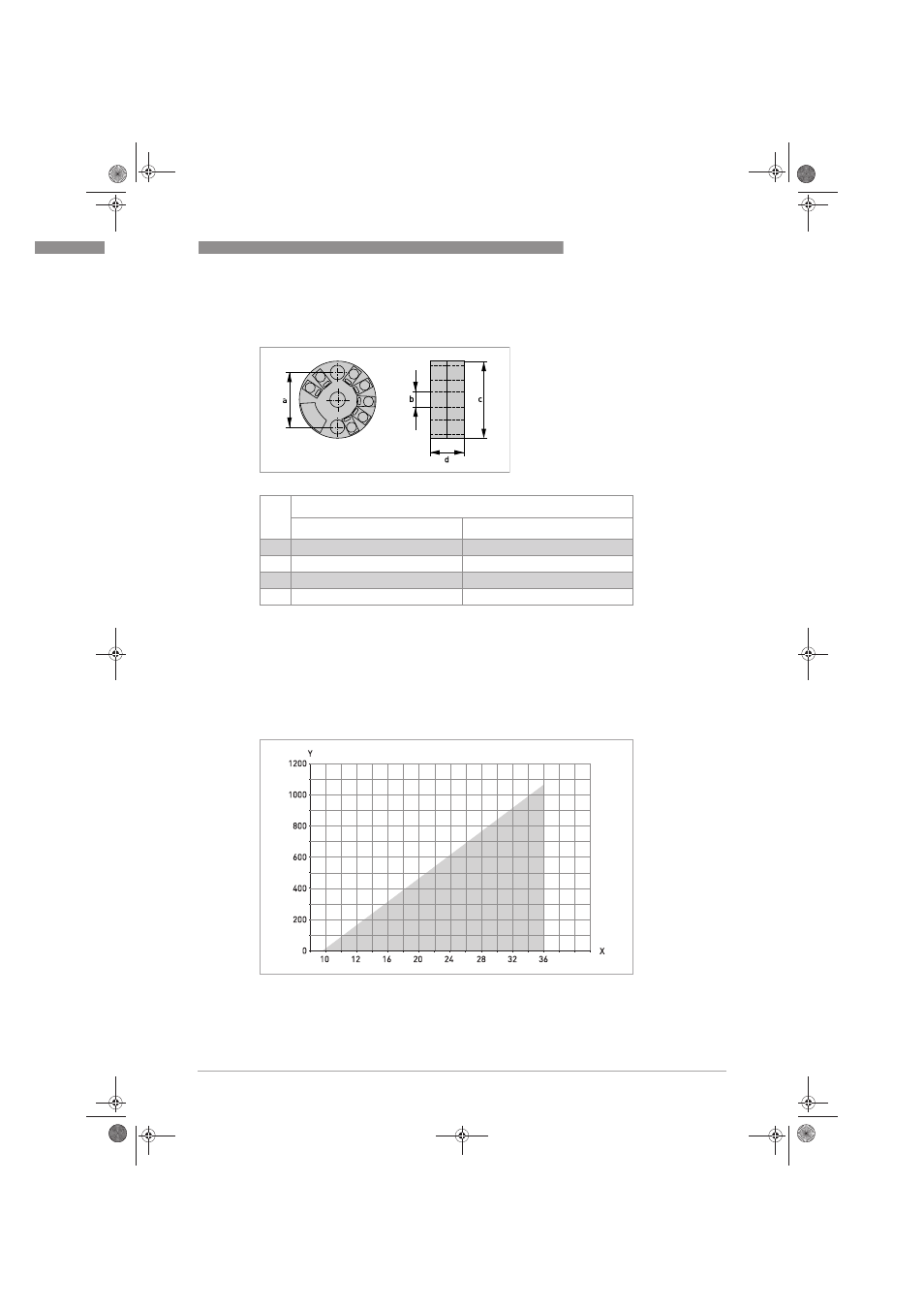

7.3 Dimensions
In-head transmitter In-head transmitter In-head transmitter In-head transmitter
7.4 Output load diagram
Formula for the maximum permissible output load:
permissible R
Load
[Ω] = (U-8.5)/0.022
Dimensions
[mm] [inch]
a 33.0 1.30
b 7.0 0.28
c 44.5 1.75
d 18.5 0.72
Figure 7-2: Output load diagram
X: Power supply U [VDC]
Y: Total output load R [Ω]
