7.3.3 Measuring insert with type K thermocouples
Type K: basic values and tolerances
Temperature
(T90) in °C / °F
Basic value
in mV
Thermal EMF
in mV/K
Tolerances acc. to DIN EN 60584-2
Class 1 Class 2
mV ° C / °F mV ° C / °F
-40 / -40 -1.527 0.037 ± 0.06 ± 1.5 / 2.7 ± 0.09 ± 2.5 / 4.5
0 / +32 0 0.039 ± 0.06 ± 1.5 / 2.7 ± 0.10 ± 2.5 / 4.5
+100 / +212 4.096 0.042 ± 0.06 ± 1.5 / 2.7 ± 0.11 ± 2.5 / 4.5
+200 / +392 8.138 0.040 ± 0.06 ± 1.5 / 2.7 ± 0.10 ± 2.5 / 4.5
+300 / +572 12.209 0.042 ± 0.06 ± 1.5 / 2.7 ± 0.11 ± 2.5 / 4.5
+400 / +752 16.397 0.042 ± 0.07 ± 1.6 / 2.9 ± 0.13 ± 3.0 / 5.4
+500 / +932 20.644 0.043 ± 0.09 ± 2.0 / 3.6 ± 0.16 ± 3.8 / 6.8
+600 / +1112 24.905 0.043 ± 0.10 ± 2.4 / 4.3 ± 0.19 ± 4.5 / 8.1
+800 / +1472 33.275 0.041 ± 0.13 ± 3.2 / 5.8 ± 0.25 ± 6.0 / 10.8
+1000 / +1832 41.276 0.039 ± 0.16 ± 4.0 / 7.2 ± 0.29 ± 7.5 / 13.5
+1200 / +2192 48.838 0.036 ± 0.17 ± 4.8 / 8.6 ± 0.32 ± 9.0 / 16.2

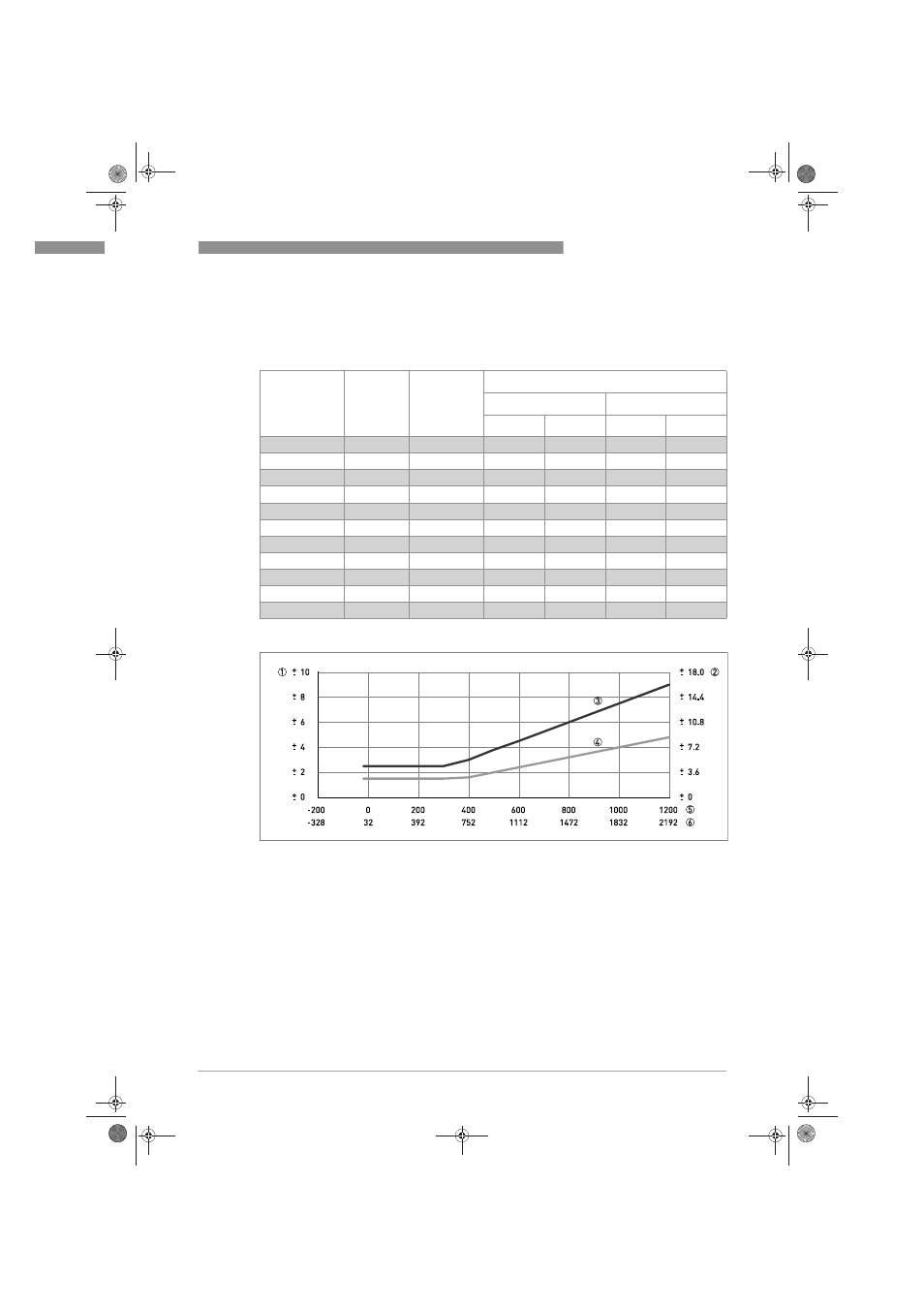

Figure 7-5: Tolerances type K
1 Tolerances in °C
2 Tolerances in °F
3 Tolerance class 2
4 Tolerance class 1
5 Temperature in °C
6 Temperature in °F
