DEVICE DESCRIPTION
10
OPTITEMP TR/TC 100
www.krohne.com 10/2009 - 4000630002 - MA OPTITEMP TR/TC 100 R02 en
Available sheath diameters
• 3 mm ± 0.05 mm / 0.118" ± 0.002"
• 6 mm ± 0.10 mm / 0.236" ± 0.004"
In addition, the measuring inserts are available in single or double design, i.e. with one or two
measuring points. The drawing on the next page illustrates the components of the TR 100 or
TC 100 measuring insert:

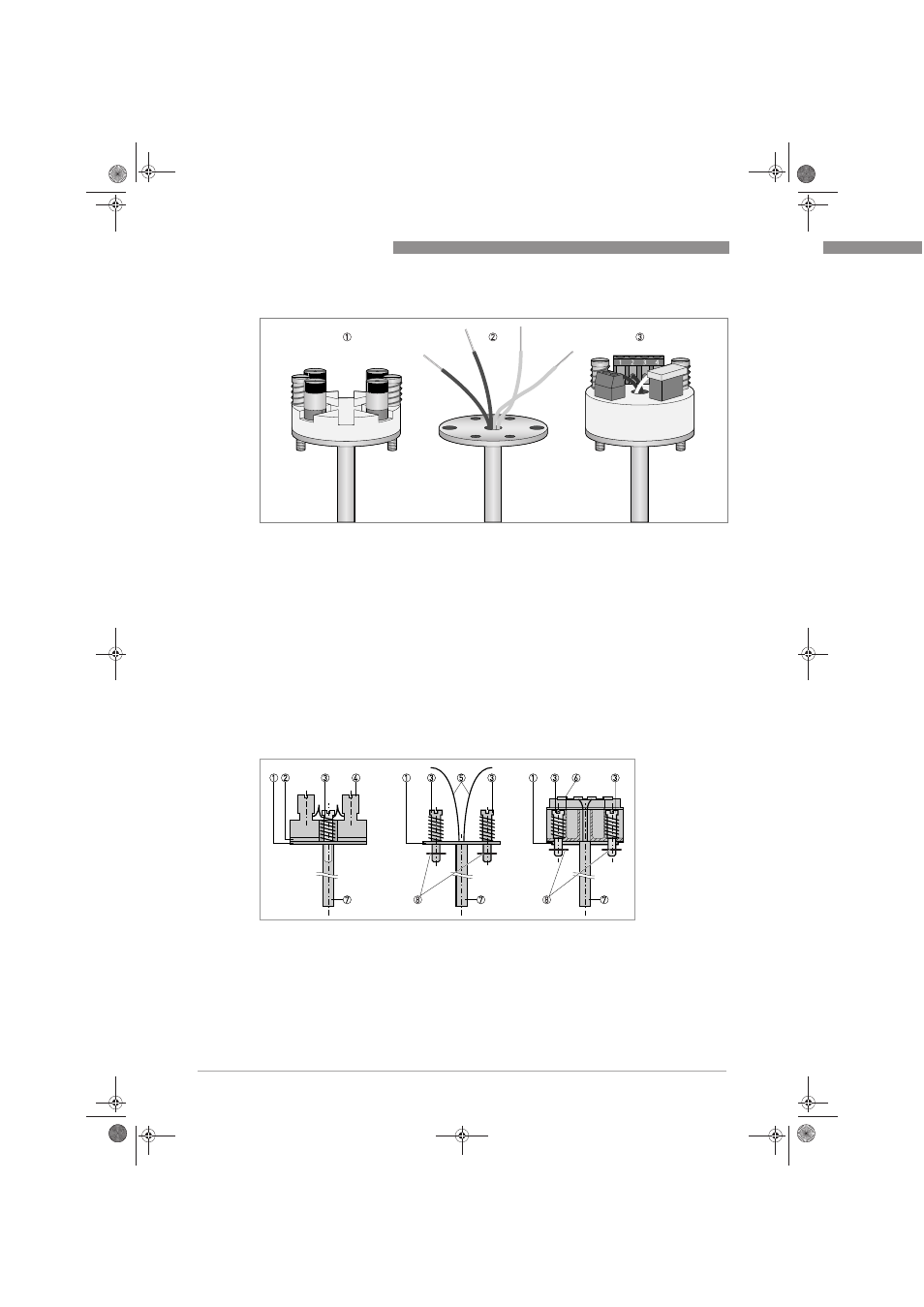

Figure 2-1: Basic variants of the measuring insert.
1 Measuring insert with terminal block
2 Measuring insert with flying wires for transmitter mounting
3 Measuring insert with transmitter
1 Washer disc
2 Insulating disc
3 Spring loaded mounting
4 Connection terminal
5 Flying wires
6 Transmitter
7 Sheath
8 Safety bolt
