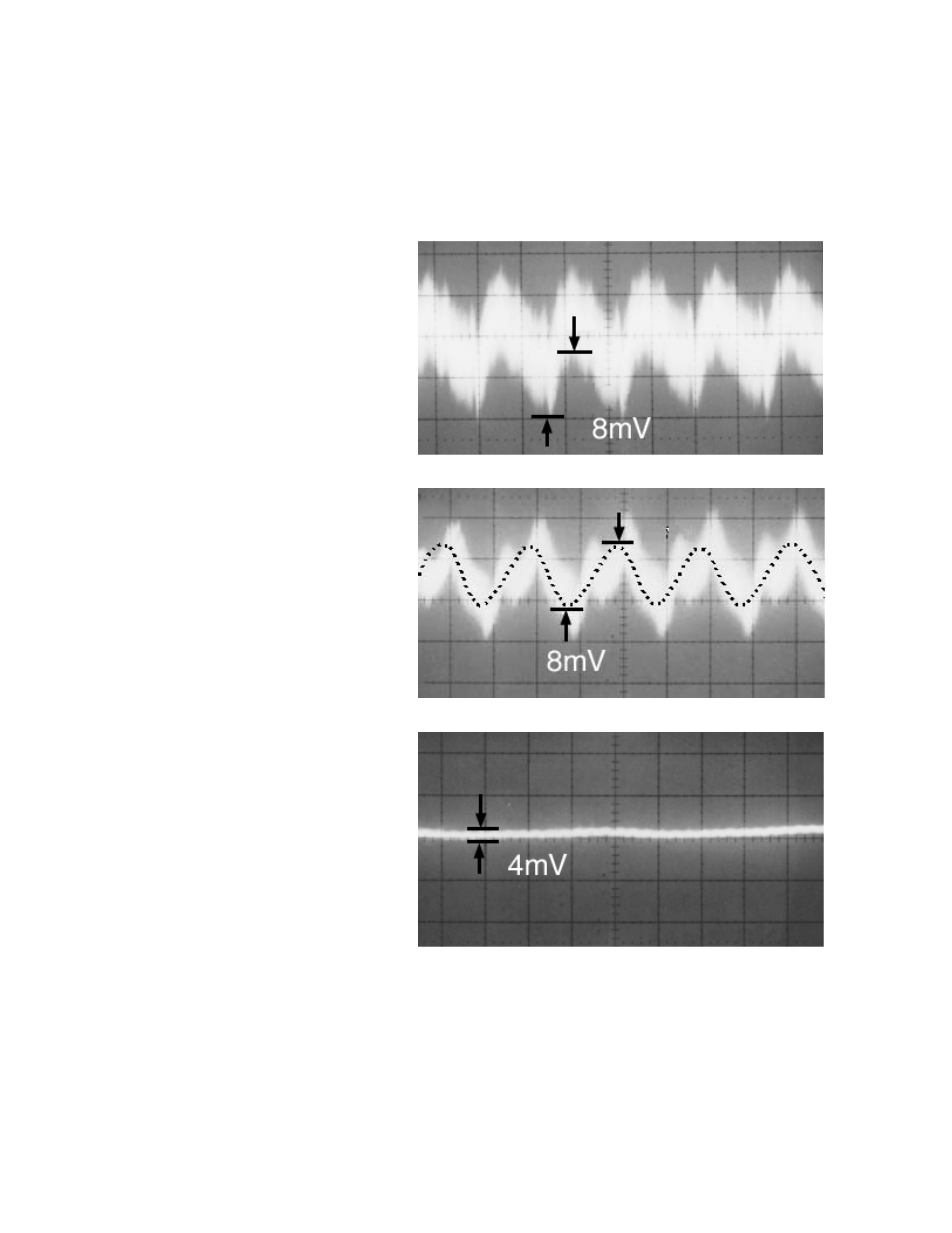

FIGURE 6. ABC 125-1DM MEASUREMENT DATA
A
2 × SOURCE FREQUENCY
RIPPLE: 8mVP-P
VERTICAL 5 mV/DIV
HORIZONTAL 5 mS/DIV
B
SWITCHING FREQUENCY
RIPPLE: 8mVP-P
VERTICAL 5 mV/DIV
HORIZONTAL 5
µ
S/DIV
C
SPIKE NOISE
4mVP-P
VERTICAL 20 mV/DIV
HORIZONTAL 2
µ
S/DIV
(Scope set to 2 mV/DIV)
ABC 125-1DM
