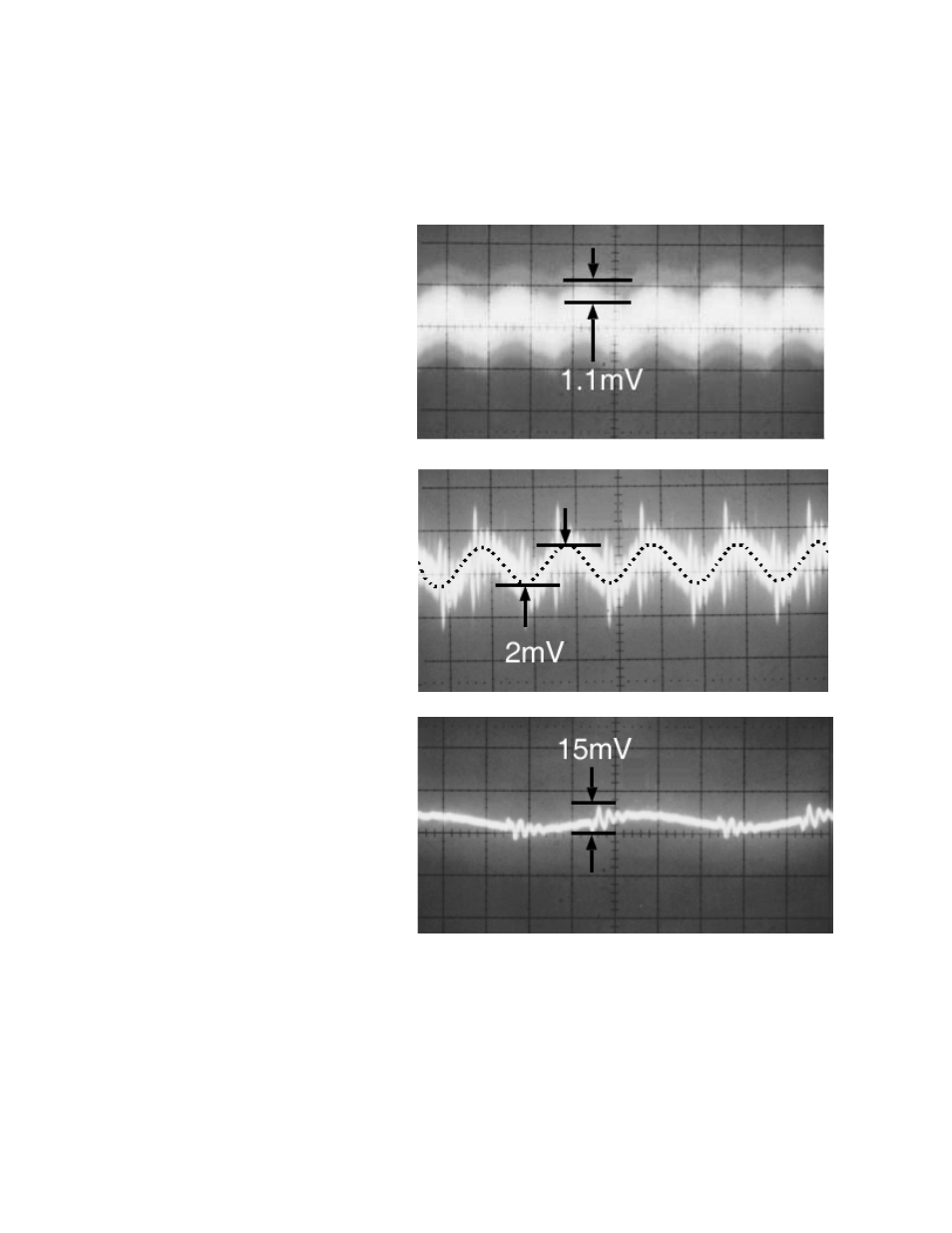

FIGURE 2. ABC 15-7DM MEASUREMENT DATA
A
2 × SOURCE FREQUENCY
RIPPLE: 1.1mVP-P
VERTICAL 2 mV/DIV
HORIZONTAL 5 mS/DIV
B
SWITCHING FREQUENCY
RIPPLE: 2mVP-P
VERTICAL 2 mV/DIV
HORIZONTAL 5
µ
S/DIV
C
SPIKE NOISE
15mVP-P
VERTICAL 20 mV/DIV
HORIZONTAL 2
µ
S/DIV
(Scope set to 2 mV/DIV)
ABC 15-7DM
