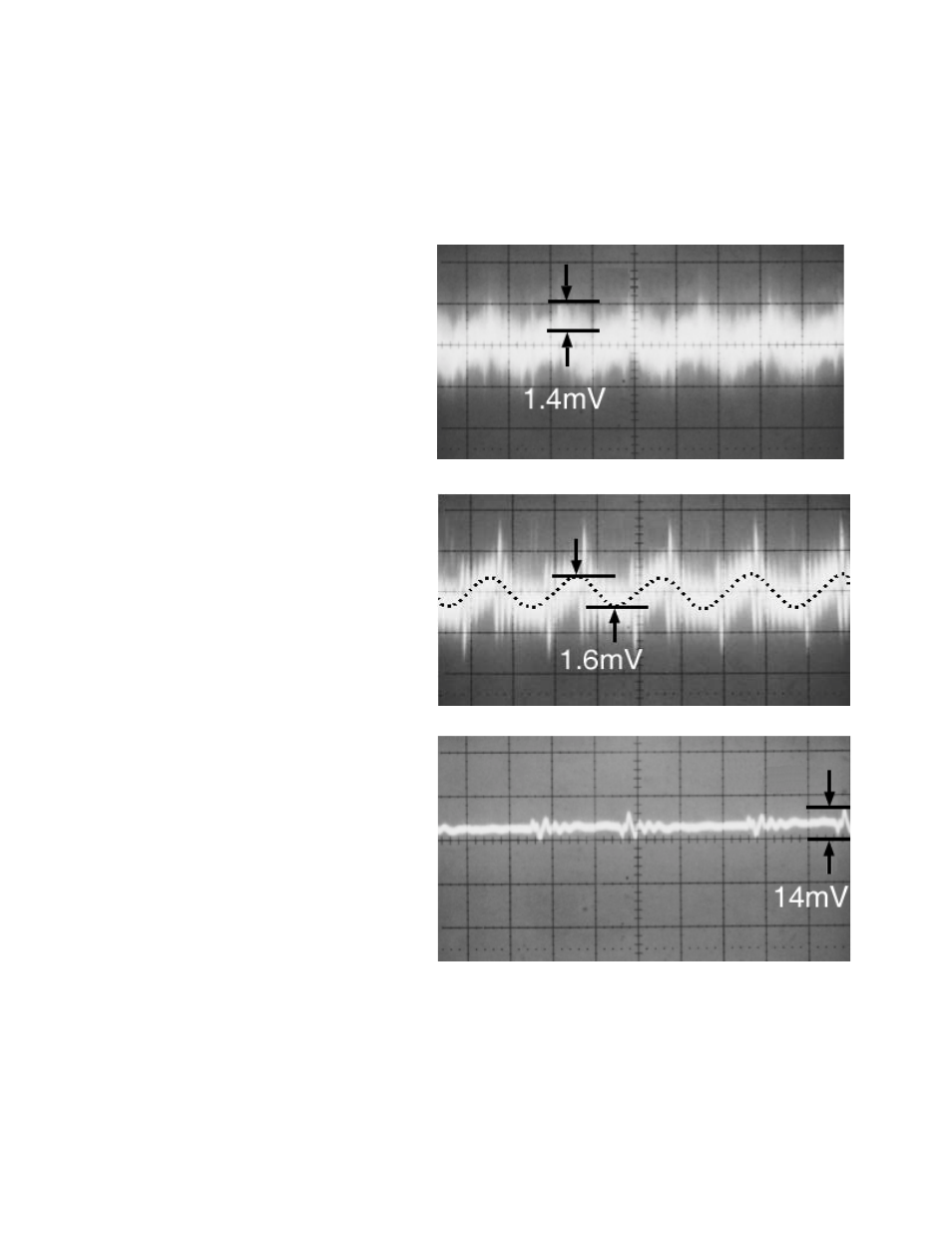

FIGURE 1. ABC 10-10DM MEASUREMENT DATA
A
2 × SOURCE FREQUENCY
RIPPLE: 1.4mVP-P
VERTICAL 2 mV/DIV
HORIZONTAL 5 mS/DIV
B
SWITCHING FREQUENCY
RIPPLE: 1.6mVP-P
VERTICAL 2 mV/DIV
HORIZONTAL 5
µ
S/DIV
C
SPIKE NOISE
14mVP-P
VERTICAL 20 mV/DIV
HORIZONTAL 2
µ
S/DIV
(Scope set to 2 mV/DIV)
ABC 10-10DM
