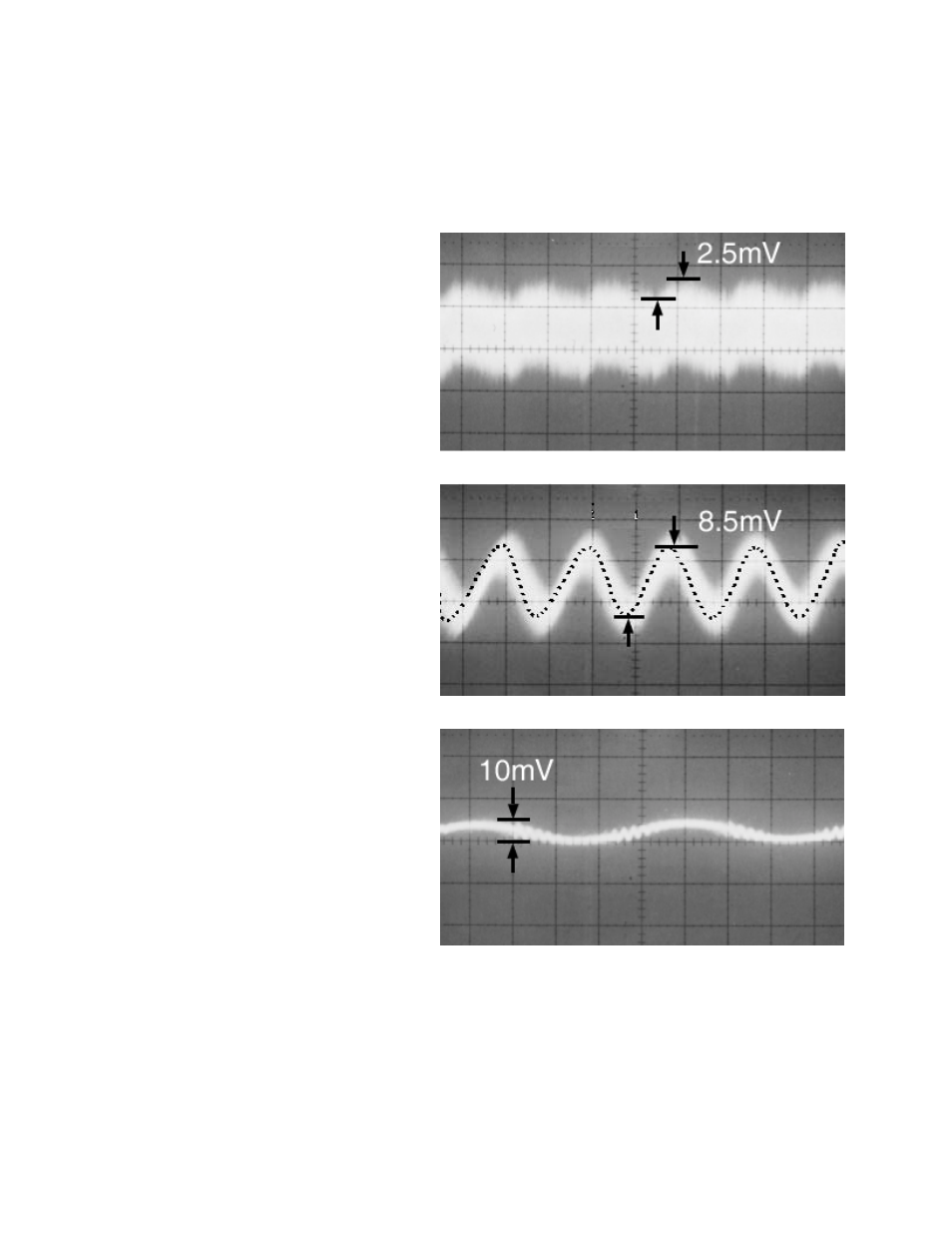

FIGURE 5. ABC 60-2DM MEASUREMENT DATA
A
2 × SOURCE FREQUENCY
RIPPLE:2.5 mVP-P
VERTICAL 5 mV/DIV
HORIZONTAL 5 mS/DIV
B
SWITCHING FREQUENCY
RIPPLE:8.5 mVP-P
VERTICAL 5 mV/DIV
HORIZONTAL 5
µ
S/DIV
C
SPIKE NOISE
10mVP-P
VERTICAL 20 mV/DIV
HORIZONTAL 2
µ
S/DIV
(Scope set to 2 mV/DIV)
ABC 60-2DM
