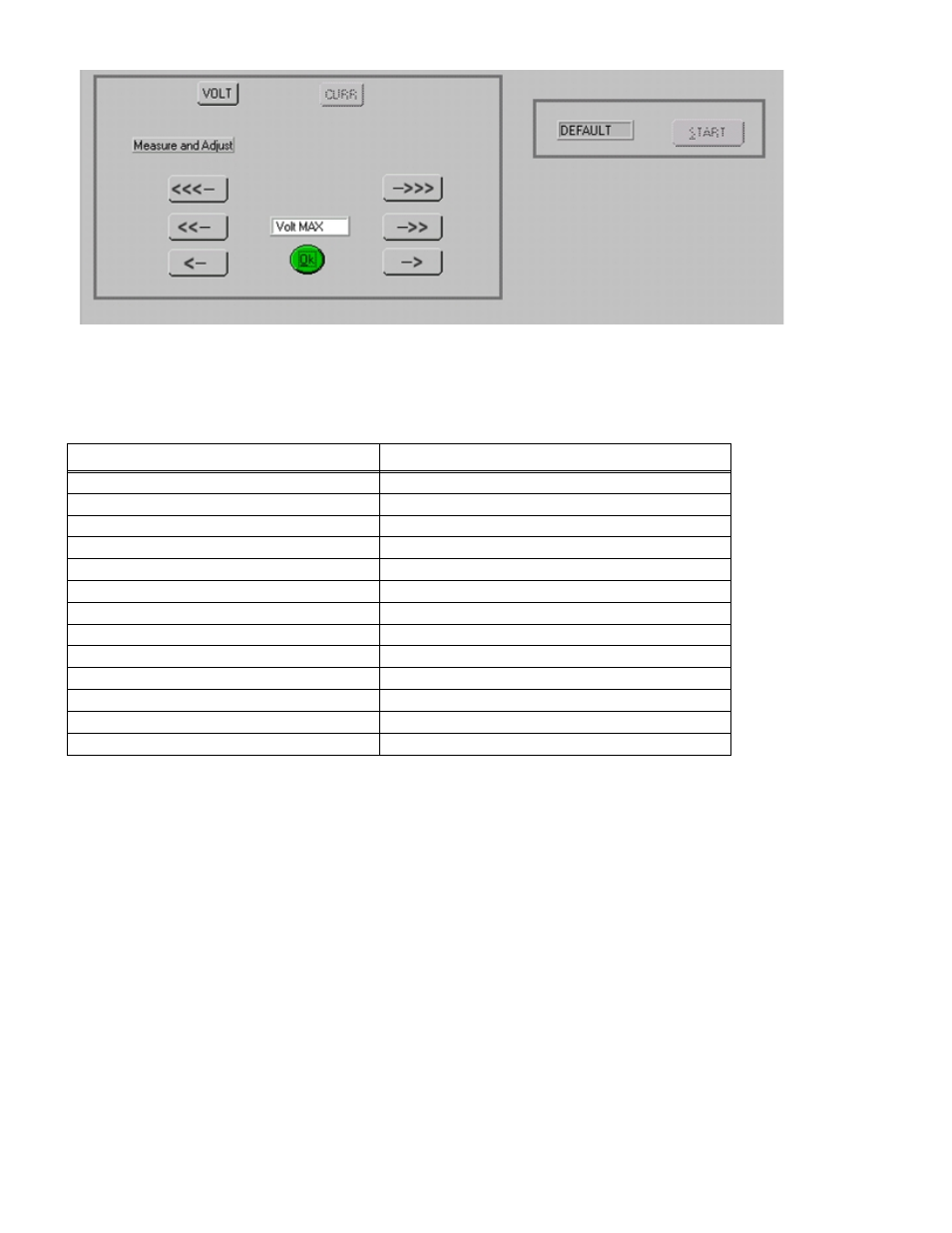

FIGURE 3-4. CALIBRATION PANEL
3.3.1.2 CALIBRATION PROCEDURE
1. Click on the Calibration Off button on the main panel (see Figure 3-3).This will open a calibration panel
(see Figure 3-4 and Table 3-1) that allows calibration in either voltage or current mode.
2. The password (DEFAULT) has been set at the factory. If it has not been changed, it will be displayed in
the box adjacent to the Start button on the right side of the panel. If the password has been changed
from DEFAULT, substitute the proper password in the box adjacent to the Start button and click the
Start button. If the password has been forgotten, consult factory. If the password is correct, the Volt and
Curr buttons will become active. Otherwise the message
ERROR! - Wrong Password
is displayed
and you must enter the correct password and click Start again.
3. For Voltage Calibration, click Volt button. The text window reads
Volt ZERO
and the message Adjust
for ZERO R81 (Eo Zero) on BOP A1 card. is displayed.
TABLE 3-1. CALIBRATION PANEL FUNCTIONS
BUTTON OR WINDOW Function
START button Initiates calibration
Text box (Adjacent to START button) Used to enter unit password
VOLT button Initiates Voltage calibration
CURR button Initiates Current calibration
Message box (below VOLT buttons) Provides instructions about the calibration process.
White text window (above OK button) Displays the parameter currently being calibrated.
Á button Fine Adjustment - Decreases the output value by one LSB.
Ë button Fine Adjustment - Increases the output value by one LSB.
!
button Adjustment - Decreases the output value by five LSBs.
8 button Adjustment - Decreases the output value by five LSBs.
<<<— button Coarse Adjustment - Decreases the output value by 80 LSBs.
—>>> button Coarse Adjustment - Increases the output value by 80 LSBs.
OK button Enters the value displayed in the white text window
