Operation

F232201

4. On UW150 models, use left hand to press and

hold the door unlock button located on the door
box. Refer to Figure 9.

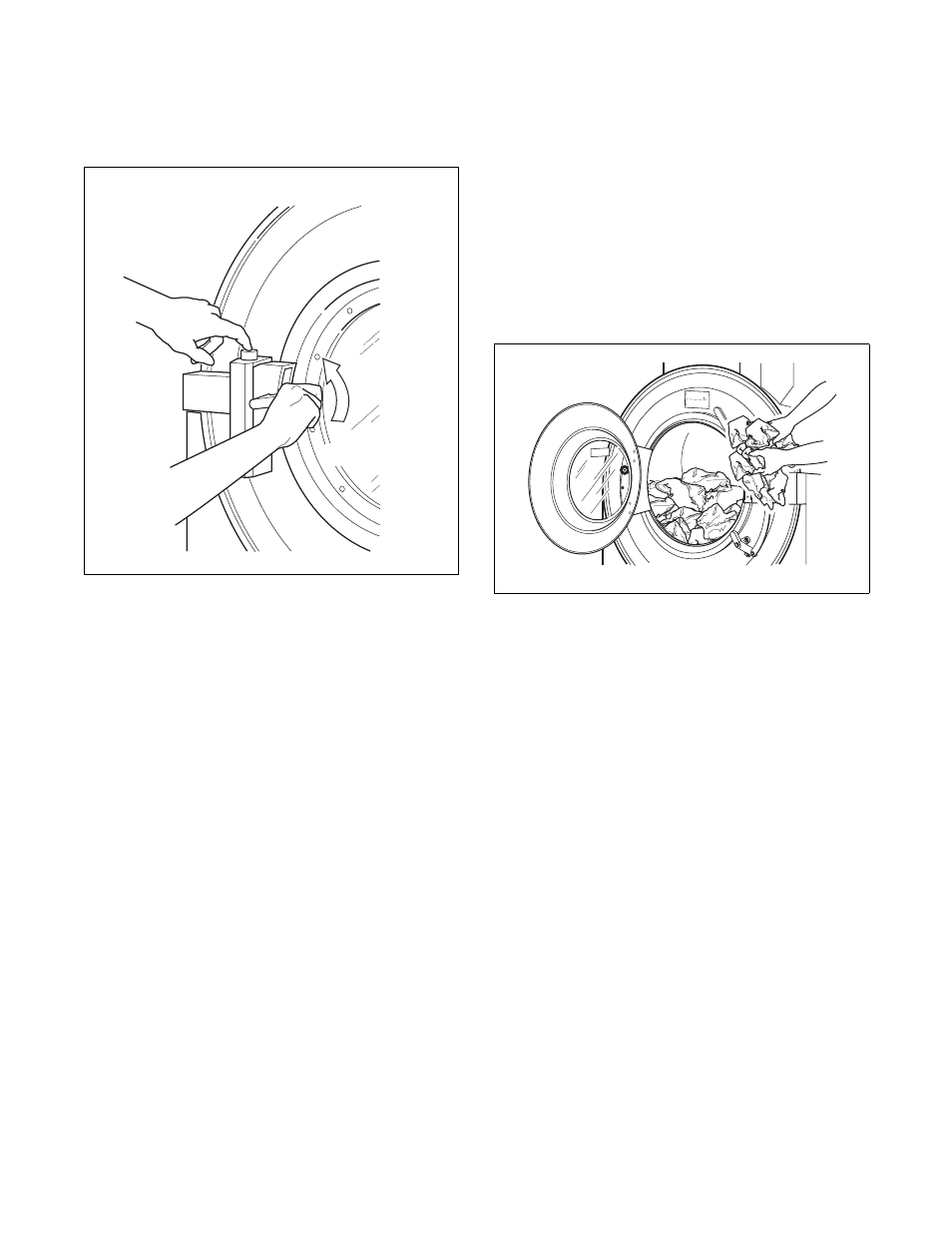

Figure 9

5. On UW150 models, use right hand to turn door

handle counterclockwise and swing the door
right to open. Refer to Figure 9.

6. Load the washer-extractor to full capacity

whenever possible, but do not exceed the rated
dry-weight capacity of the machine if the fabric
to be washed is quite dense, closely woven, and
heavily soiled.

Overloading can result in an inferior wash. The
operator may need to experiment to determine
load size based on fabric content, soil content,
and level of cleanliness required. Do not
underload the machine. Underloading can result
in premature bearing and sealing failure and out-
of-balance situations.

Figure 10

PHM597N

UW150 MODELS

PHM590N

WARNING

MACHINE MAY BE HOT

AND CAUSE BURNS

ATTEMPT NO ENTRY UNTIL

BASKET HAS STOPPED

SERIOUS INJURY MAY RESULT
