© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 11 F232201
Operation
Machine Familiarization Guide
The machine familiarization guide in Figure 3 and
Figure 4 identifies major operational features of the
UWPV washer-extractor.

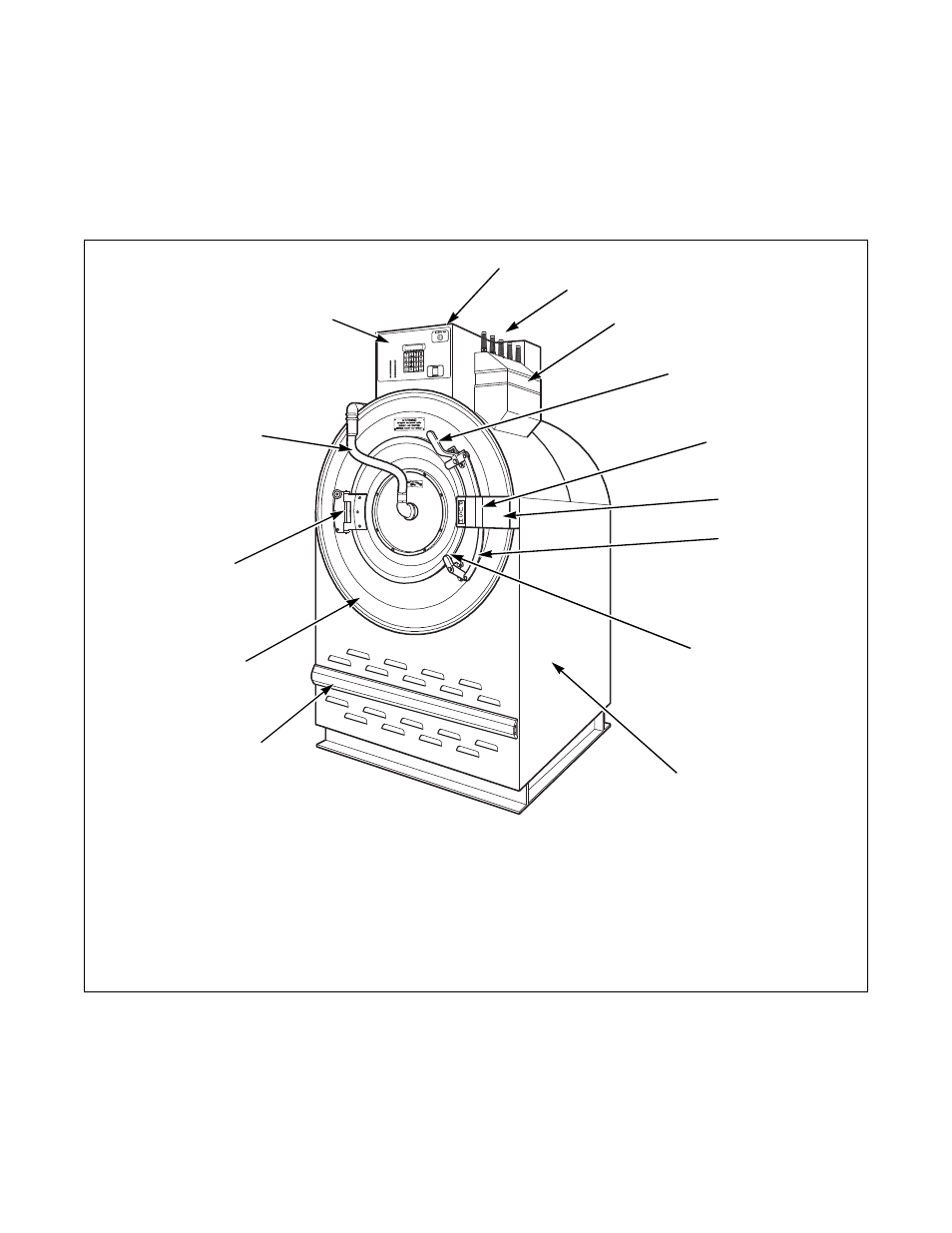

Figure 3
PHM1389C
1 Emergency Stop Button 8 Door Latch
2 Supply Valve Box 9 Side Panel
3 Supply Dispenser 10 Rub Rail
4 Door Latch Handle 11 Shell Front
5 Door Handle 12 Door Hinge
6 Door Box 13 Spray Rinse Tube
7 Door Latch Extension Arm 14 Control Module
PHM1389C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
UW35 – UW125 MODELS
