Operation
F232201 18
Located to the left of the control keypad are 20 LED
indicator lights for the control outputs. During the time
that a cycle is running, one or more of these lights will

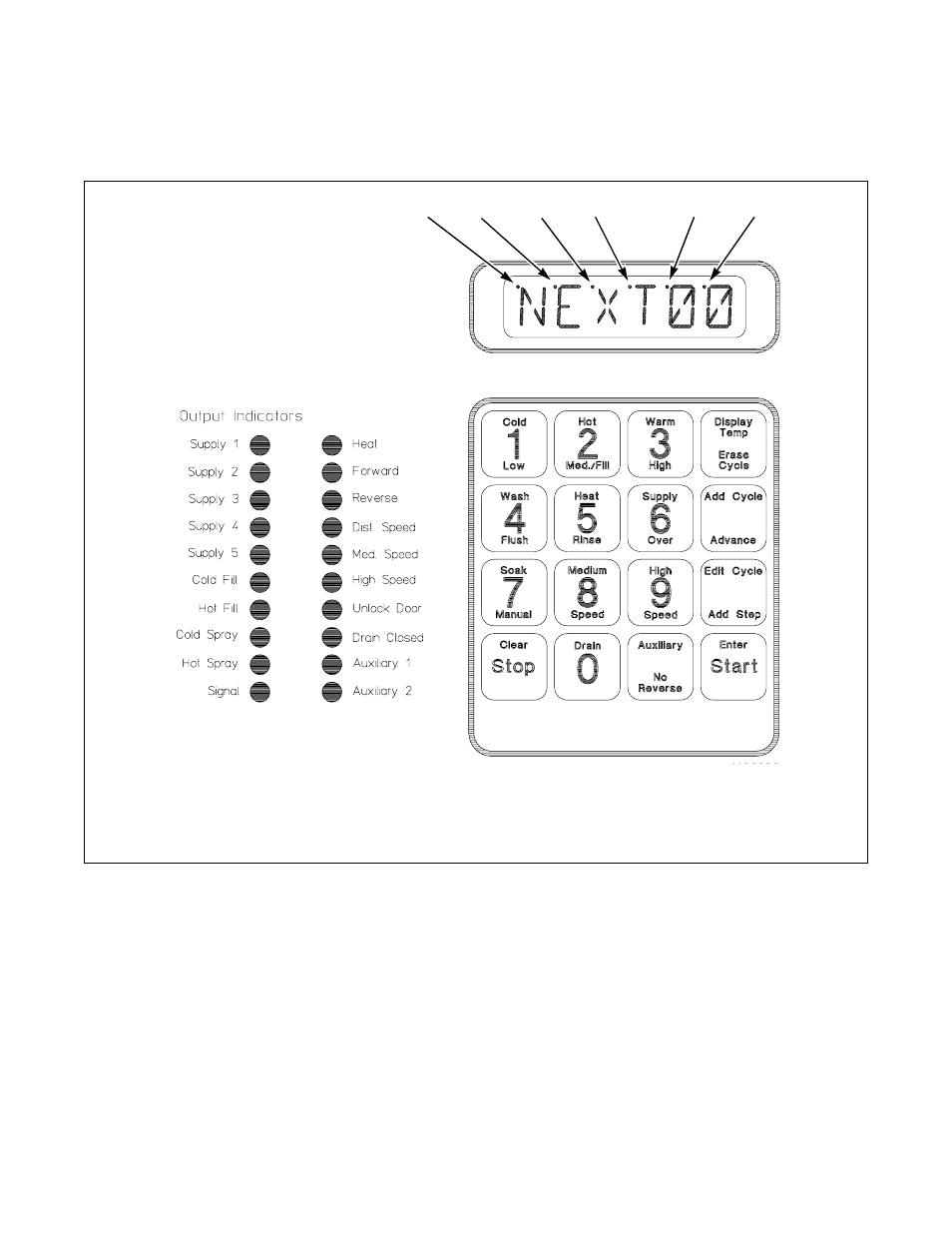

be on to indicate steps in use. Refer to Figure 6.
Figure 6
MC008G
1 Out-of-Balance Indicator 4 High Level Fill Indicator
2 Door Lock Switch 5 Medium Level Fill Indicator
3 Program Mode 6 Low Level Fill Indicator
1 2 3 4 5 6
