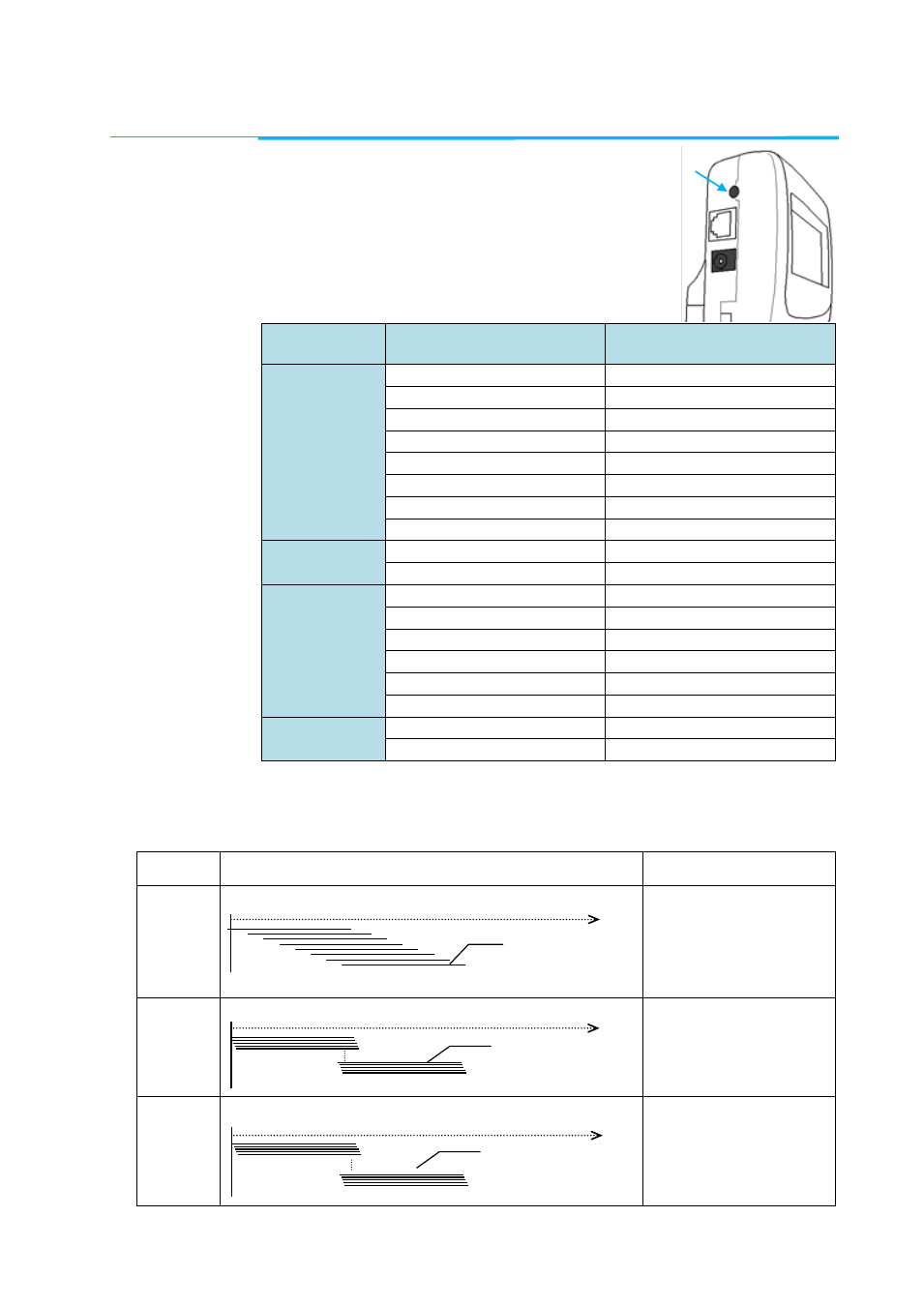

§ 9 Analog Output
1. Data Update……every 0.1 sec
(Except Humidity; updated every 1sec)
2. Load Impedance……Above 5KΩ
3. Output Voltage……DC 0 to 1V
For analog output, you must select one setting
from the table below.
(There is no analog output for Flow Rate)
Parameter Output Range
Conversion Formula
(V: voltage)
Velocity
(U)
0 to 5 m/s U= 5×Ｖ m/s
0 to 10 m/s U= 10×Ｖ m/s
0 to 30 m/s U= 30×Ｖ m/s
0 to 50 m/s U= 50x V m/s
0 to 1000 FPM U= 1000×Ｖ FPM
0 to 2000 FPM U= 2000×Ｖ FPM
0 to 6000 FPM U= 6000× V FPM
0 to 10000 FPM U= 10000×Ｖ FPM
Humidity
(H)
0 to 50 %RH H= 50×Ｖ %RH
0 to 100 %RH H= 100×Ｖ %RH
Temperature
(T)
-20 to 30 °C T= 50×Ｖ－20 °C
0 to 50 °C T= 50×Ｖ °C
0 to 100 °C T= 100×Ｖ °C
-4 to 86 o F T= 90×Ｖ - 4 o F
32 to 122 o F T= 90×Ｖ＋32 o F
32 to 212 o F T= 180×Ｖ＋32 o F
Pressure
(P)
-2 to +2 kPa P= 4×Ｖ- 2 kPa
-5 to +5 kPa P= 10×Ｖ- 5 kPa
For the output range, the low end will be set at 0V and the high end
will be set at 1V. The voltage is linear.
The Time Constant will be in effect.
Mode Ways To Take In Measured Data (Analog Output） Explanation
TC1
Take 10
measurements each
second and indicate
the average as an
instantaneous value
at every 1 sec.
TC5
Output the average
measured value for
5 seconds at every
0.1 second. Data
shifts by 0.1 second.
TC10
Output the average
measured value for
10 seconds at every
0.1 second. Data
shifts by 0.1 second.
Analog Output
Terminal
0 5 10 15 20sec
Measuring time
0 0.5 1.0 1.5 2.0sec
0 2.5 5.0 7.5 10sec
Average of 10sec
Average of 5sec
Average of 1 sec
■ Analog output is only
available on
MODEL6501-A0/-C0.
■ To change the setting
of Time Constant,
refer to “To change
Time Constant” on
P.20.
