34 Print Out
§ 7 Print Out
Preparation for Printing

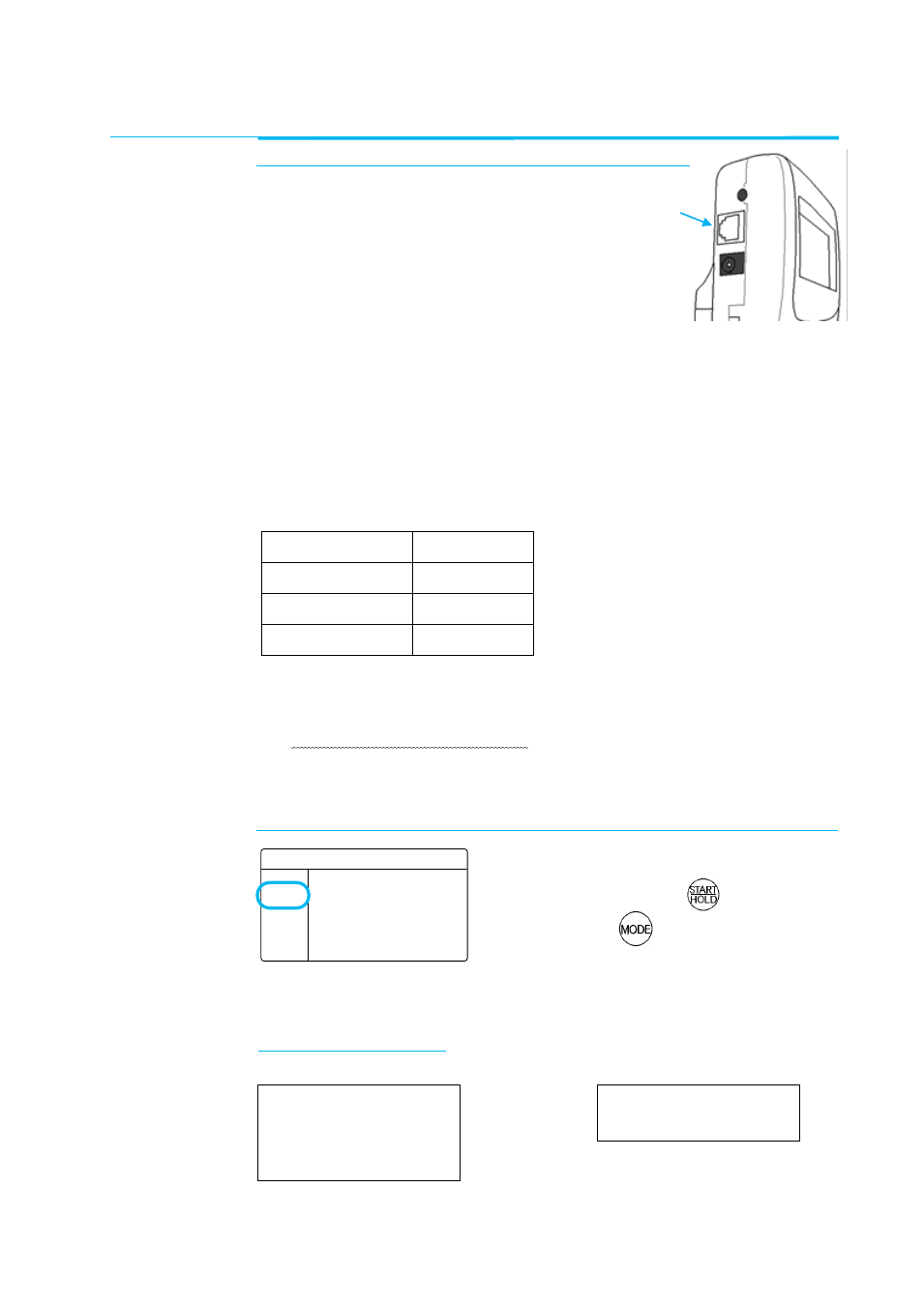

Connect the printer cable to the Serial
Communication terminal located on
the side of the instrument to print out
measurement data.
● Printer (optional)……Recommended: Seiko Instruments Model
DPU-S245
● Printer Cable (optional)
You need to enter the same baud rate and data transmission
conditions on both the Main Body and the printer.
The factory setting of the Main Body is as follows:
1. Connect the printer to the Main Body (Serial Communication
Terminal) using the printer cable.
2. Turn ON the CLIMOMASTER first, and then turn the printer ON.
3. Make sure that the CLIMOMASTER is displaying NORMAL Mode.
Print Out in NORMAL Mode
When the screen is displaying in
NORMAL Mode, press to HOLD the
display. Press to print out the data
on the screen.
* If the printer is not connected properly, ”PERR” will be displayed in
the lower left of the display.
Examples of Print Out
Air Velocity Mode Pressure Mode
Data Bit Length 8 bits
Parity None
Baud Rate Set Value ＊
Stop Bit 1
'12/04/12 a 15:40:23 ~
TC
C 1
HOLD
0.87f
25.3e
64.1g
* To change the BAUD RATE, refer to
“Units and Baud Rate” on P. 46.
* To configure the settings of the
printer, refer to the printer operation
manual.
2001/06/19 13:42:09
Velocity 0.12 m/s
Temperature 25.9 ﾟ C
Humidity 62.7 %RH
…Air Velocity
…Air Temperature
…Humidity
2001/06/19 13:42:28
Pressure 0.23 kPa
Serial
Communication
Terminal
■ Humidity is only
available on
MODEL6531/6533.
■ Air temperature is
only available on
MODEL6531/6541
/6542/6533/6543/
6561.
■ Pressure is only
available on
MODEL6501-B0
/-C0.
