3. Display Description and Operation Procedure 24

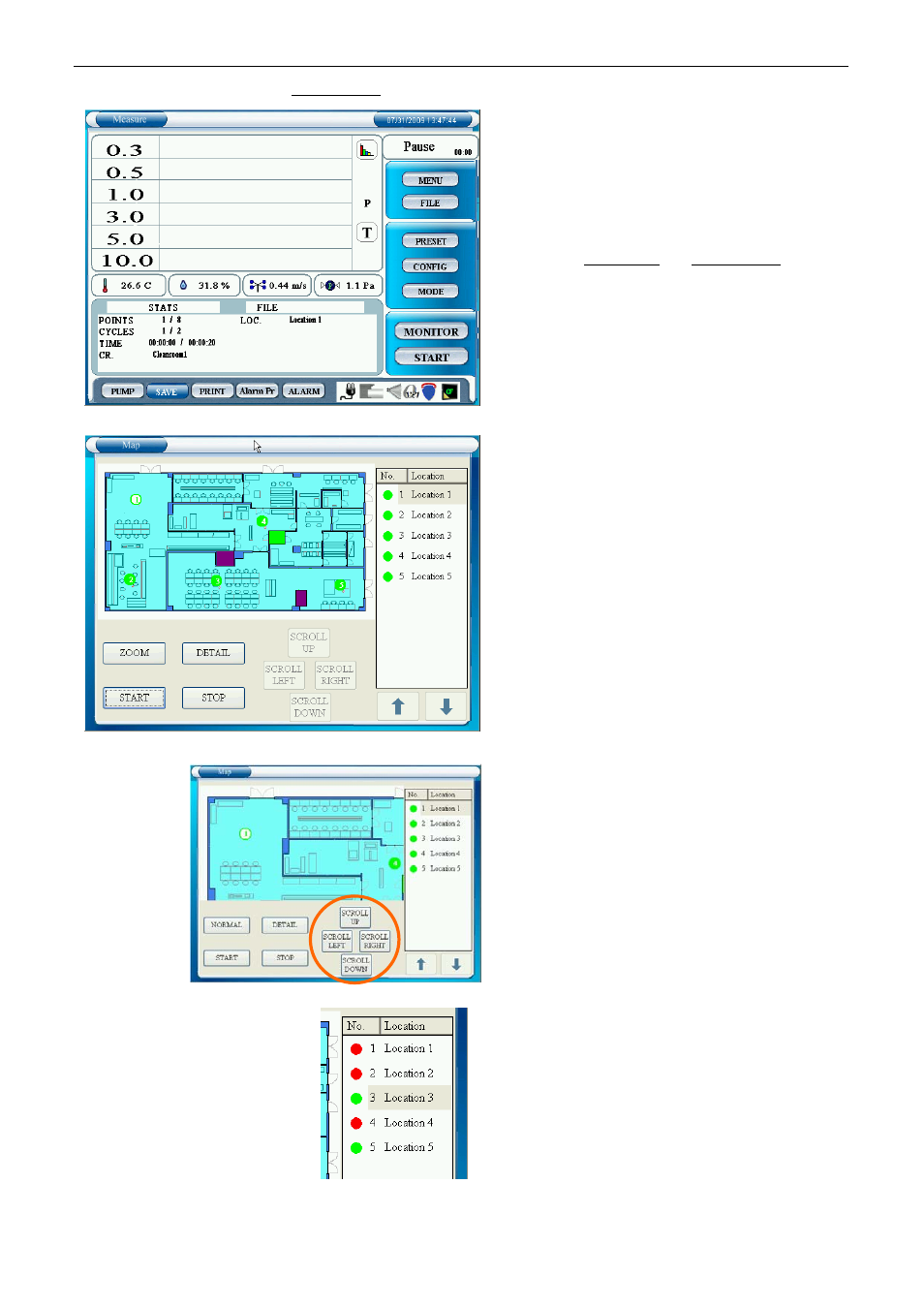

- When using MAP (Refer to 3.7 CONFIG for using a MAP.)
In STATS mode, MAP will be displayed upon
tapping [START].
A measurement will start based on the setting
configured in 3.5 MODE and 3.7 CONFIG.
Select a measurement point and tap [START] to start
a measurement.
Tap [STOP] to stop a measurement.
Tap [ZOOM] to enlarge a MAP.
(This button will become [NORMAL] button. Press
[NORMAL] to display an entire MAP when a map is
enlarged.)
Select Location point and tap [DETAIL] to view the
details of the selected Location point
When a MAP is enlarged, [SCROLL UP], [SCROLL
DOWN], [SCROLL LEFT] and [SCROLL RIGHT]
buttons are activated, which enables you to move the
MAP.
.
The color of the measurement point changes from
green to red once a measurement is done.
