3.4 Installing the Main structure

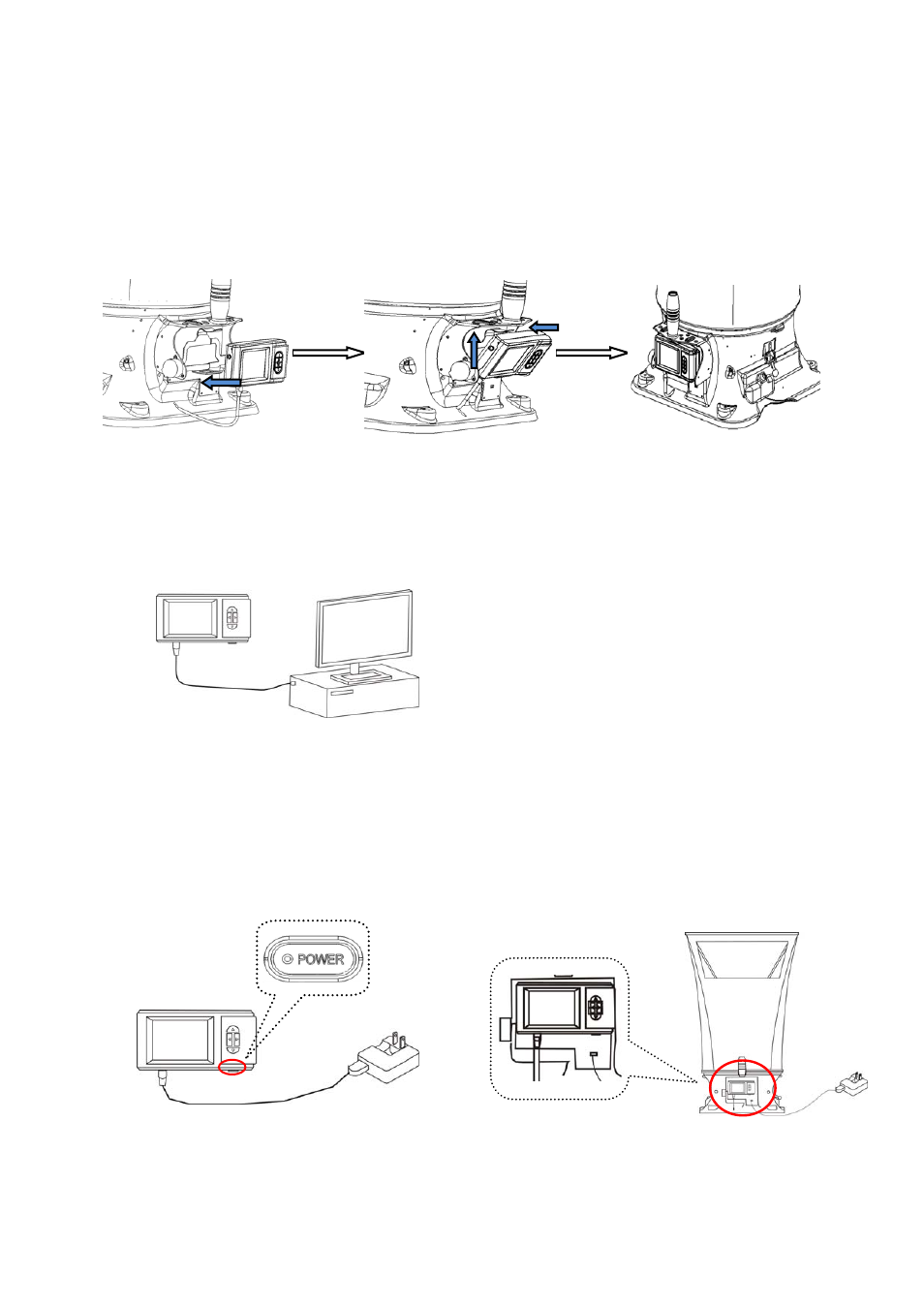

To install the Main structure ①, set the bottom of the panel in the holder on the unit base ②
and gently push the top of the panel backwards ③ until it locks into place. To remove it, simply
reverse the procedure.
4. Operation directions
4.1 Communication and Supplying Power with the AC Adapter
Connect the main structure to a PC (refer to figure ①).
To power the instrument with the optional AC adapter, refer to figures ② and ③. When the AC
adapter is connected and batteries are installed, power will be supplied from the AC adapter .
The specification of the AC adapter is: I/P: AC 110-240V 50/60 HZ O/P: DC 5V/ 2A
①
②
③
① The main structure is connected to a PC.
③ The AC adapter also supplies power for the
Capture hood.
② The AC adapter supplies power for the main
