3

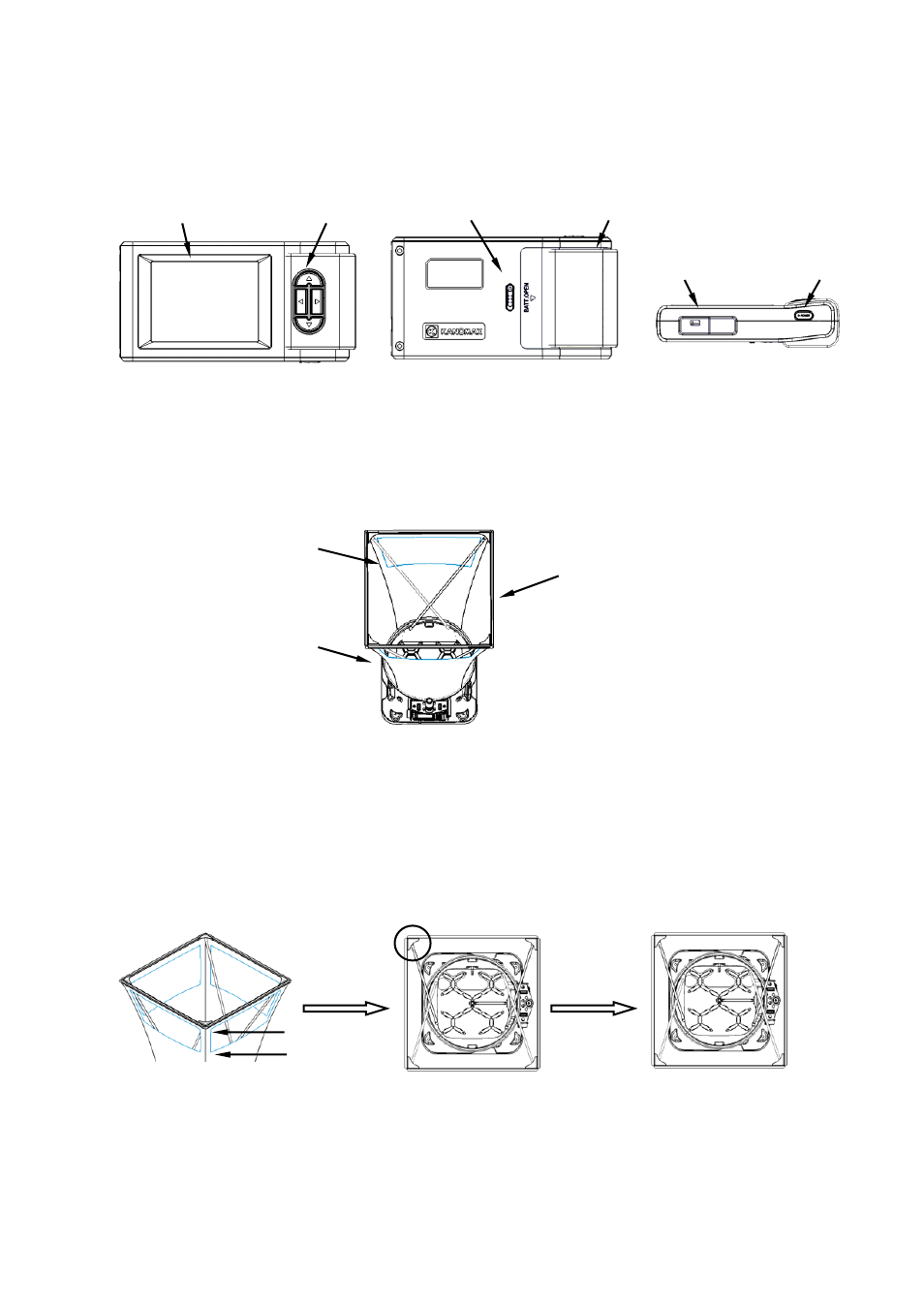

2.2 Main structure
2.3 Fabric Hood
The fabric hood kit consists of a frame, and a fabric hood with four windows as shown below:
3. Installation and Assembling
3.1 Capture Hood Installation
1）Assemble the fabric hood and the frame as shown below:
Battery Compartment
Cover
Back
Cover lock
Use the angled corners ① and
the stitching ② as a guide to
ensure the hood is straight. If
the fabric hood is twisted it will
not assemble correctly.
③
Insert a frame pole into the
frame and hook it under the
corner of the hood ③.
Side view
POWER
Socket for
communicatio
Continue until all 4
corners are supported
by poles ④.
Fabric hood
Frame
Window
③
①
②
④
Keypad
Front view
Display LCD
