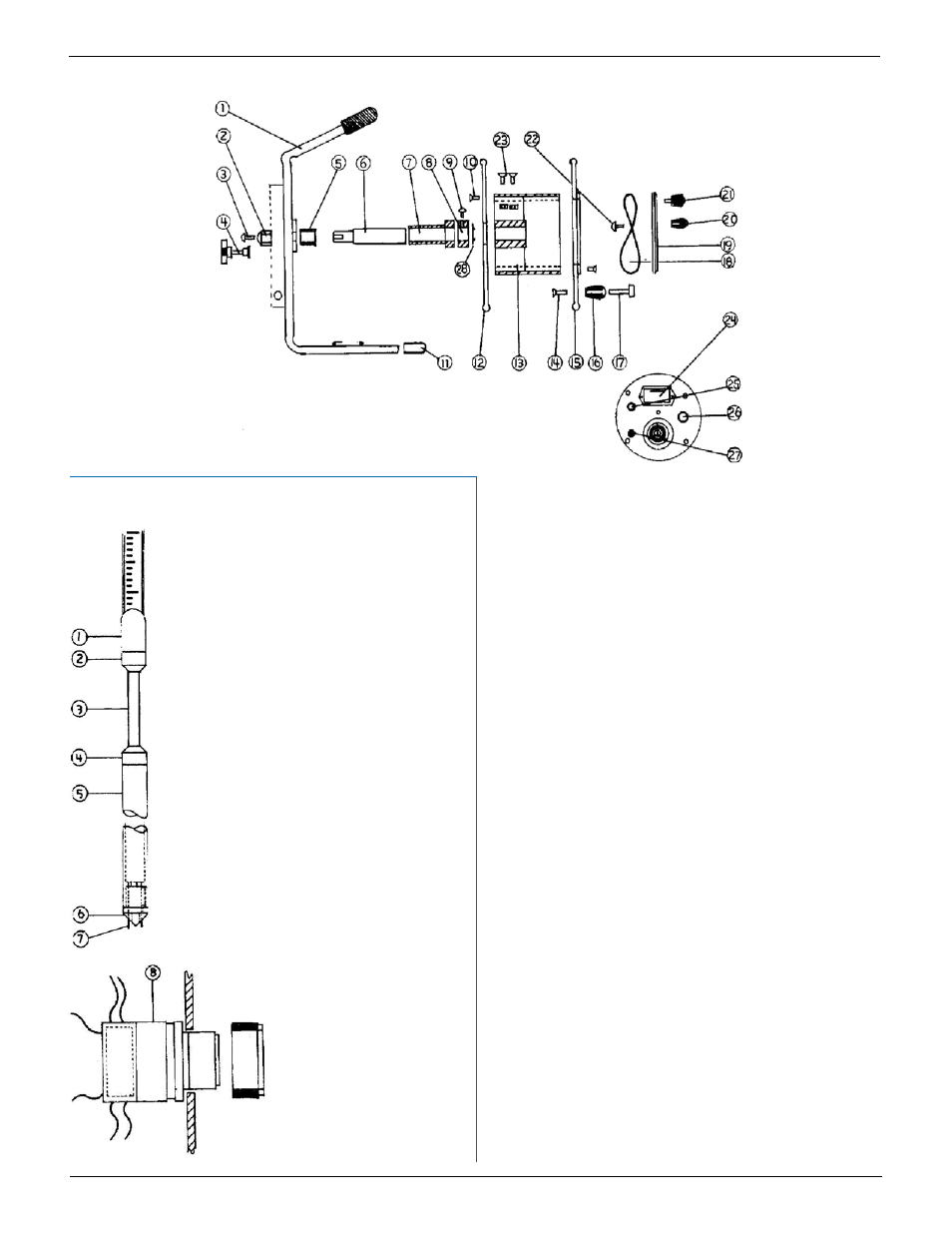

Probe Electronics
1 - Tape Connector
2 - Link/Tape Connector
3 - Link
4 - Link/Probe Connector
5 - Probe Body
6 - 1/F Lens, WLM Tip
7 - Conductivity Pins
8 - Reel Electronics
Note: Items 1 to 8 are serviceable only
by supplier.
1 - Frame 15 - Front Plate
2 - Nut 16 - Cranking Handle
3 - Screw 17 - Spindle
4 - Brake 18 - O-ring
5 - Spacer 19 - Electric Disk
6 - Shaft 20 - Disk Handle
7 - Bearing 21 - Disk Retaining Knob
8 - Ground Ring 22 - Screw
9 - Screw 23 - Tape Screws
10 - Screw 24 - Battery Holder
11 - Frame Boot 25 - Battery L.E.D.
12 - Rear Plate 26 - Oil/Water L.E.D.
13 - Hub 27 - On/Off Button
14 - Screw
Reel Electronics
