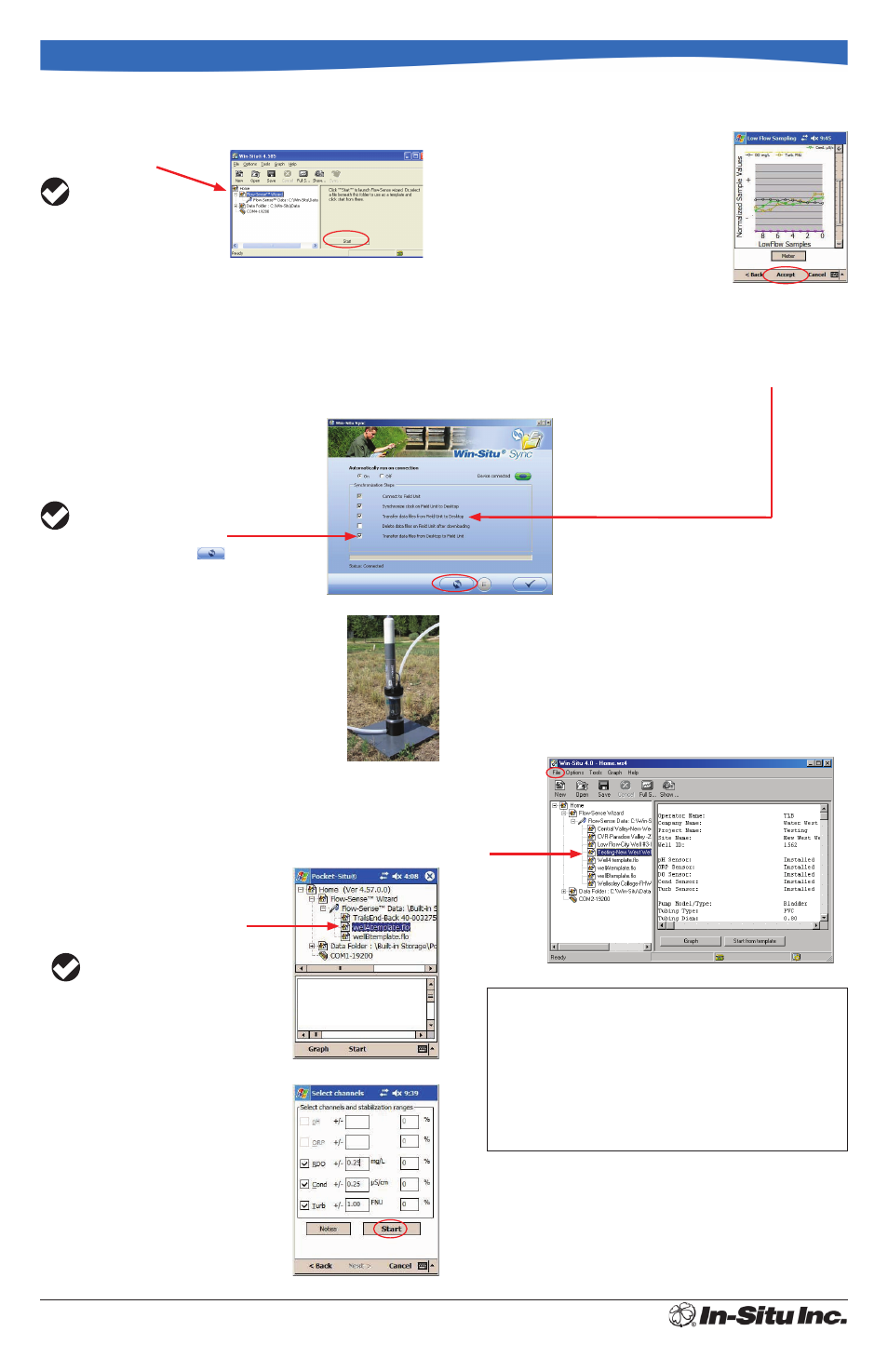

Let the Wizard run until values stabilize, then collect samples

15

When values appear stable, select

Accept.

Save the data file under a different name than the template file.
The default file name is the Project name, Site name, Well I.D.,
and date, but you can rename it any way you like.

In the office: copy .flo files back to desktop PC

16

Connect the computers in ActiveSync, and the Win-Situ Sync utility will automatically copy the
resultant .FLO files back to the PC. This time, be sure to select the option “Transfer data files
from Field Unit to Desktop”.

In the office: Launch the Flow-Sense Wizard

7

Tap the Wizard, tap

Start.

TIP: Low-flow setup
can optionally be
done on the

RuggedReader. To reduce
the need for input on a PDA
in the field, prepare a
template on your office PC
in advance, as described
here.

In the office: Enter values & save field template files

8

For each well, execute the Wizard and enter site information. Estimate tubing length, pumping
rate, and final drawdown. Let stabilization phase run for at least one reading, then click

Accept.

When the Wizard asks if you want to save the file, give each one a meaningful name, for
example: “Well ABC template.flo”

In the office: Copy template files

9

to the RuggedReader

Connect the computers in ActiveSync. The
In-Situ synchronization utility, Win-Situ Sync,
will prompt you for Low Flow templates you
wish to transfer to the RuggedReader.

TIP: If Win-Situ Sync does not launch
automatically, select it from the In-Situ
group in Programs on the Windows Start

Menu. Be sure the option “Transfer data files from
Desktop to Field Unit” is checked
. Click

to transfer files.

In the field: Prepare the flow cell

10

Select the NPT barbed fitting for the tubing to be used (

3

/

8

” or ½”). Tape the

NPT threads with plumbing tape. Screw into base (inflow) and top (outflow)
of flow cell. Tighten by hand or with a wrench. Do not overtighten. 3-way
valve at inflow and anti-siphon valve at outflow are optional. Attach tubing
and secure with clamps. Attach flow cell to spike or base plate. Insert the
calibrated TROLL 9500 into the flow cell.

Start the pump

11

Turn on the pump and determine the optimum final pumping rate and final
stabilized drawdown from static water level.

Connect the TROLL 9500 to the RuggedReader

12

Launch Pocket-Situ 4 but do not “Find” the device

Launch the Flow-Sense Wizard on the RuggedReader

13

In Pocket-Situ, navigate to the Flow-Sense

a.

Wizard/Flow-Sense Data branch of the tree
and select the template file for the well you
are sampling.
Tap

b.

Start. Values from the highlighted file

will be used to initialize the Wizard.

TIP: When prompted in the Wizard, verify that the
Pocket-Situ unit settings are the same as those on
your desktop PC. We recommend milligrams per
liter for D.O. (stabilizes faster than micrograms
per liter).

Supply final pumping rate and stabilized

14

drawdown

Include any other variables that are not in the

a.

template file—tubing length, sampling rate, etc.
Enter or verify stabilization ranges—you can use

b.

units or percentages—then click

Start.

0049582 rev. 003 12/08

Guidelines & Precautions

Batteries—If shipping the TROLL 9500 or RuggedReader, remove the batteries first.

Ship the RuggedReader battery in separate, marked plastic bag.
Keep the

pH/ORP sensor hydrated between uses and during transport. Be sure to

remove the hydration bottle before calibrating or using the sensor.
The

RDO sensor requires very little maintenance. Clean the body with a brush &

clean water. Gently wipe the sensing foil with a damp cloth.
For heavy fouling, follow the cleaning procedure described in the RDO chapter of

the TROLL 9500 Operator’s Manual.
Air bubbles are unavoidable in low-flow sampling. Because of this, expect a

somewhat longer stabilization time for the RDO sensor than for other sensors.

Low-Flow with RDO

®

Company Name:

Water West

Project Name:

Central Valley

Site Name:

New West Well

Well ID:

1562

Open a file in Win-Situ and create an output report in

17

Microsoft

®

Excel

®

Launch Win-Situ, navigate to the Flow-Sense Wizard/Flow-Sense Data branch of

a.

the tree, and select your low-flow data file from step 15.
Select File menu > Export to Excel.

b.

The report will open in an Excel spreadsheet. The spreadsheet includes brief instructions for
using a custom Excel output report template installed with Win-Situ. The template is named
InSituLowFlow.xlt. If Excel does not display it in the default folder, look for it in the Templates
directory of the Microsoft operating system.
