Appendix A - Communication Device
The Communication Device is an accessory product that can be used to calibrate and
set up RDO probes.
Install and Open the Software
The Comm Kit Software must be installed on a computer before you connect to the
probe.
Connect the Probe to the Communication Device
The Communication Device connects a stripped-and-tinned probe to a computer via
USB connection.
1. Disconnect the instrument from the PLC.

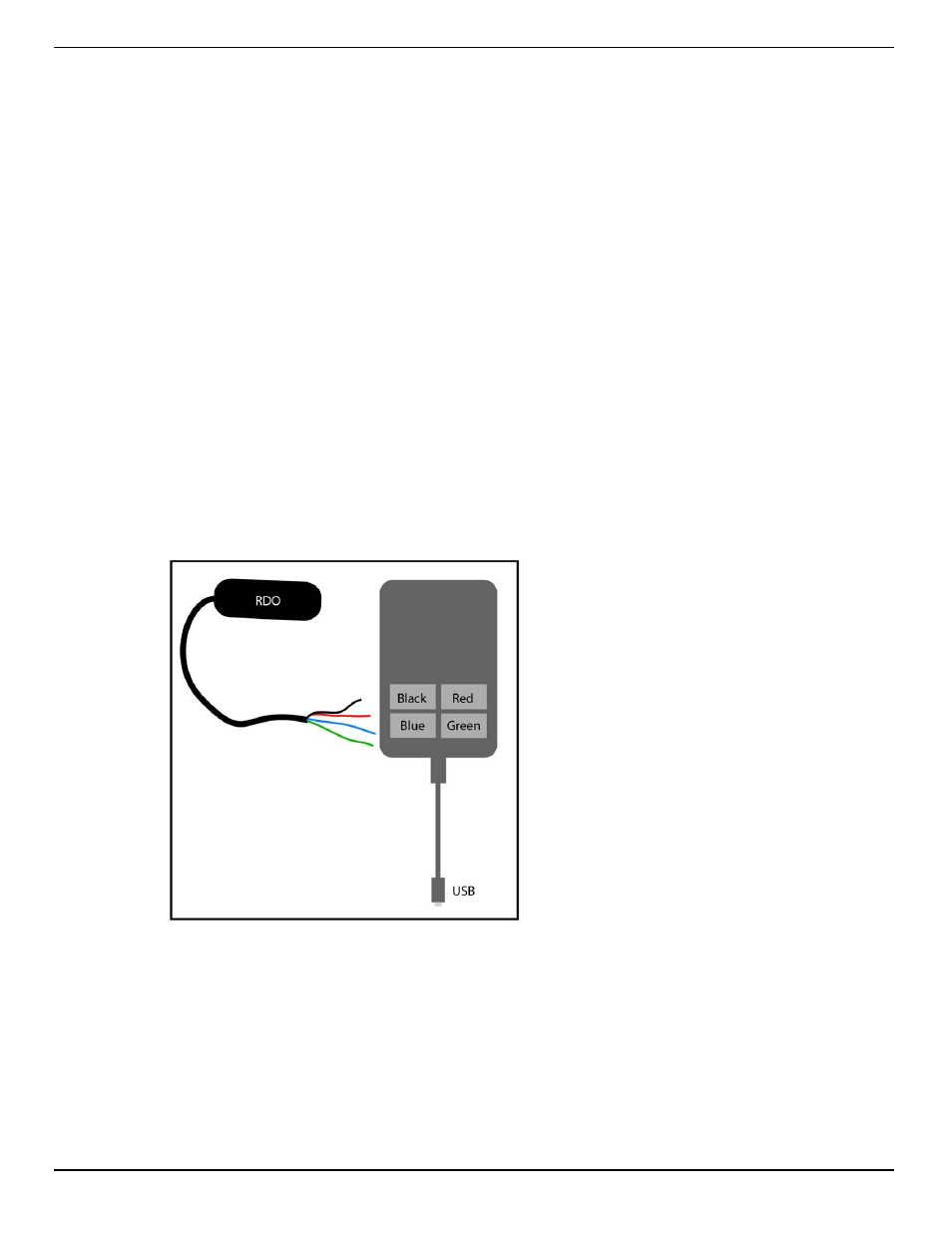

2. The communication device includes an electrical connection diagram label. To
attach the instrument to the communication device, depress a lever and insert the
appropriate wire in the location specified by the diagram.
3. Attach the USB connector to a USB port on the computer. Follow the directions
provided in the Communication Device Kit to set up the probe.
