Chapter 2: Broadcom Advanced Control Suite 2 (BACS 2) Applications
52
Modifying a
Team
After you have created a team, you can modify the team in the following
ways:
ˆ Change the type of team
ˆ Change the members assigned to the team
ˆ Add a VLAN
ˆ Remove a team or a VLAN
To modify a team, perform the following procedure.
1. Select the team name.
2. From the Tools menu, click Configure a Team.
The Welcome page of the Broadcom Teaming Wizard is shown in
Figure 11 on page 39.
3. Click Next.
The Team Name page asks for a name for the team, as shown in
Figure 12 on page 39.
4. Type the name of the team you want to modify and click Next.
The Team Properties tab is displayed with the properties of the team
you selected, as shown in Figure 29.

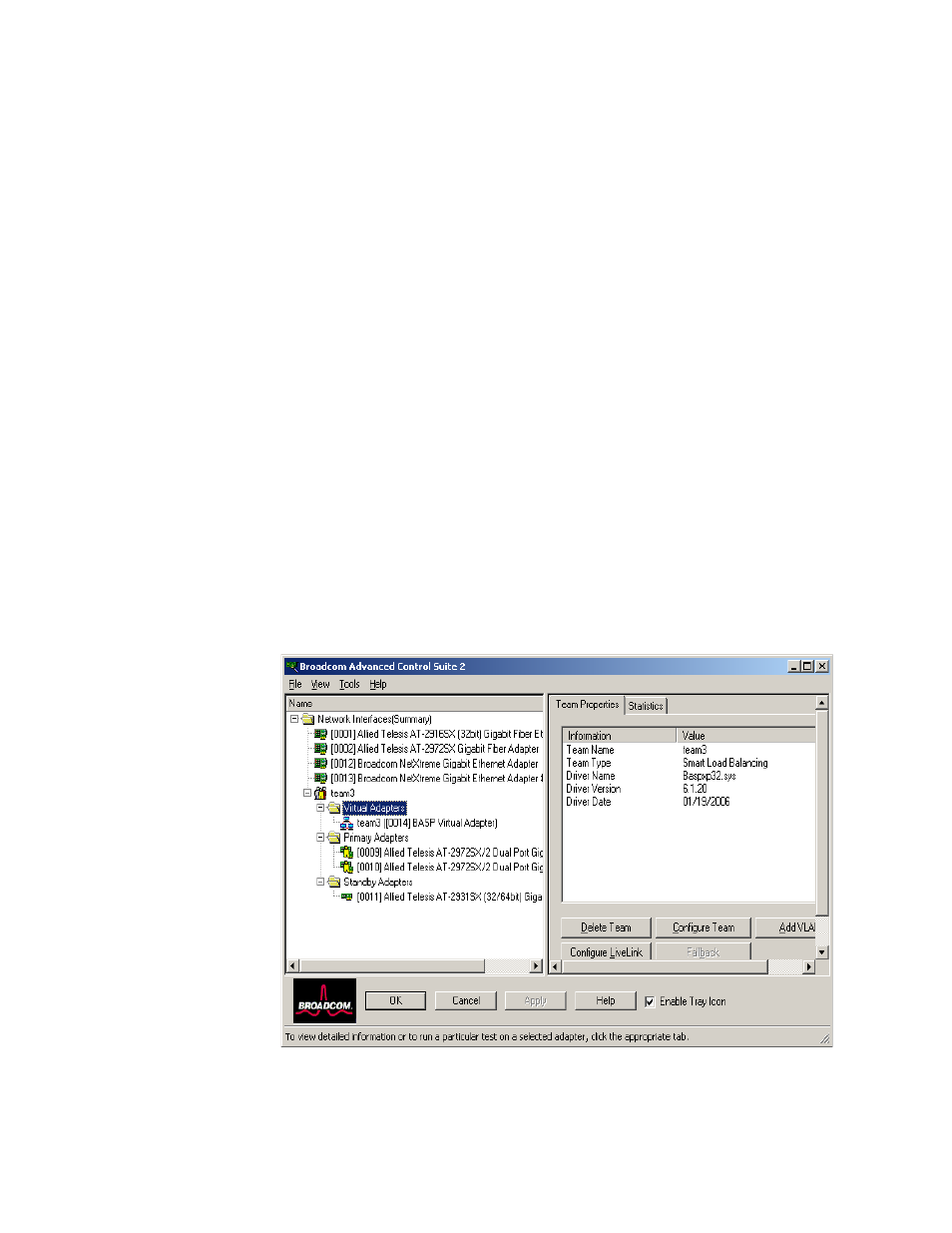

Figure 29. Team Properties Tab
