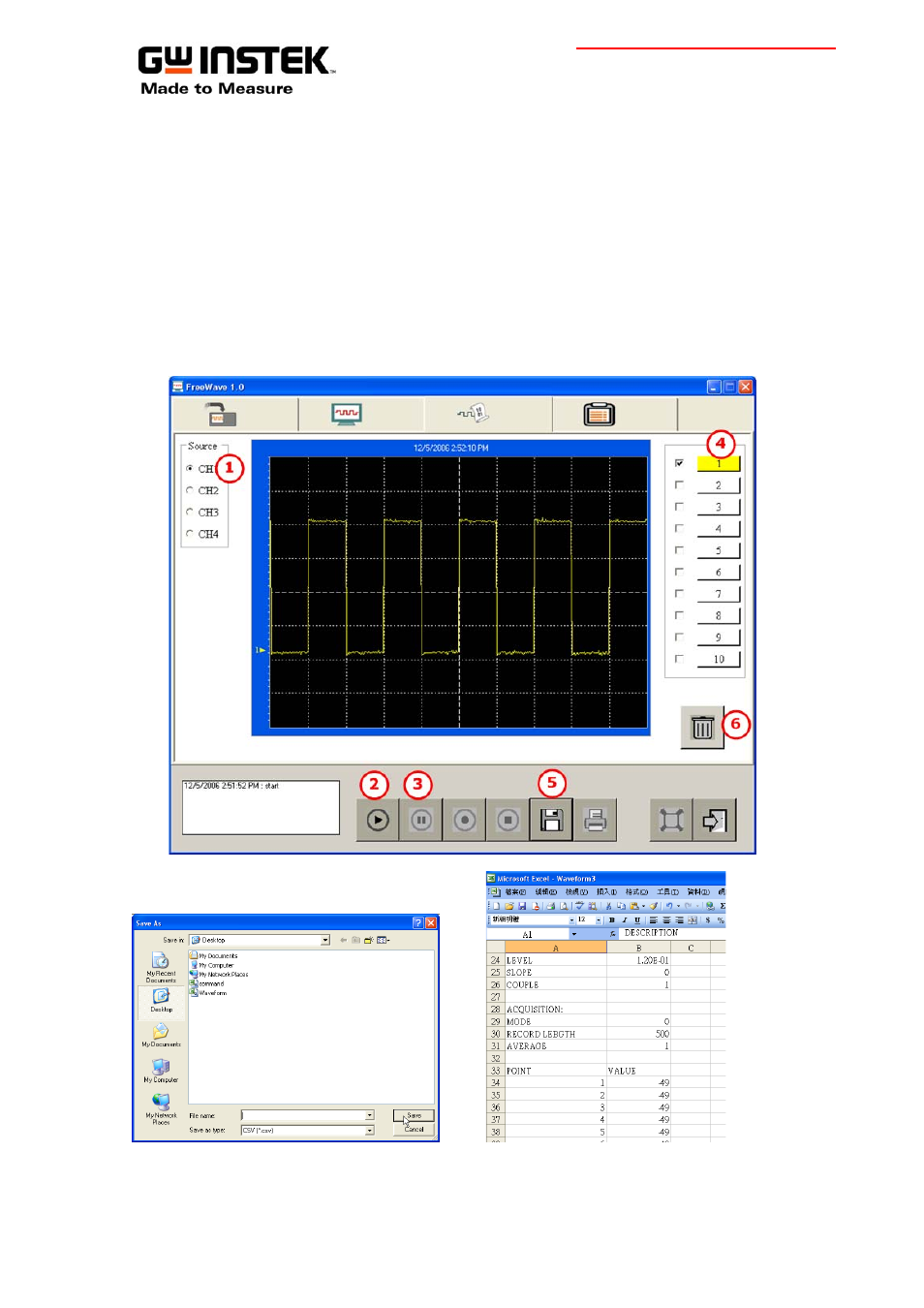

3. Waveform Data Capture
Example for how to get waveform data:
(1) Select Source: CH1
(2) Press [READ] button.
(3) When waveform display in the PC screen, Press [Stop] button
(4) You can see there is a mark in the “NO1” box, and the [Save] button is active.
(5) Press [Save] button and save the waveform data to *.csv file.
(6) Press [Delete] button to remove this waveform box.
