OPERATION
7
VIEW Status
Description VIEW status is used to select a manual test in
the MANU mode or an automatic test/step in
AUTO mode. VIEW status will display all the
parameters of the current test.
VIEW status is also used to put the tester into
MANU or AUTO mode.
G B A CW D CW I R
E
F R E Q = 0 H z 6
0 100
k V
R A C = F F O
E I V
M T I E = 0 0 1 . 0 S R
0 0 m A E R F = # 0 . 0
1 . 0 0 m A I H E S = 0 T
0 0 . 1 S 0 A M P = R
A U T O = 0 0 1 - 0 0 2
W

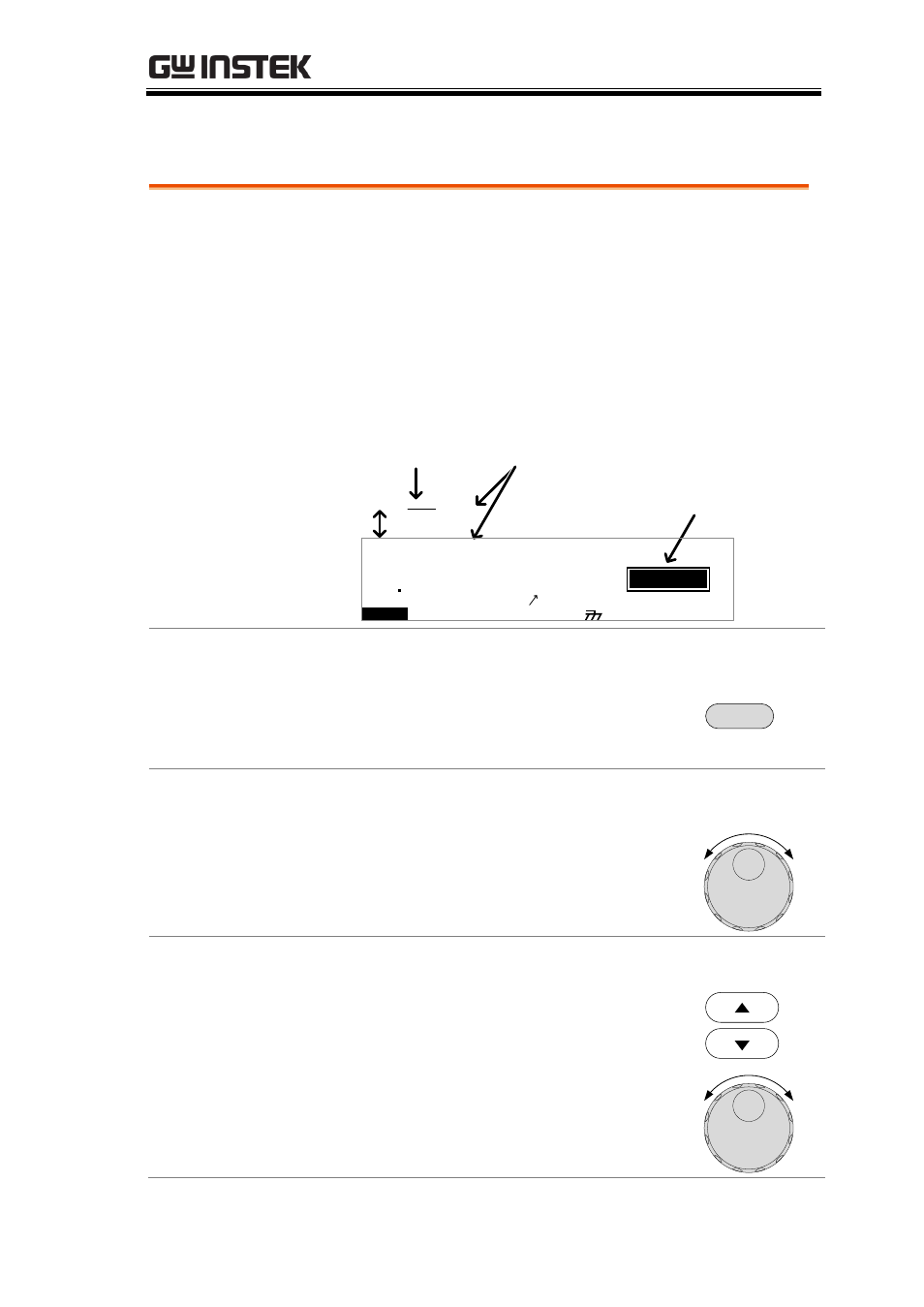

VIEW status
M M A U N N A _ 2 M A N U = * * * - 0 0
AUTO number MANU number
M A U O T N A _
m A
E
Switch Between AUTO/MANU
 Press and hold the MANU/AUTO key to switch
between AUTO and MANU when the tester is in
VIEW status. MANU/AUTO
Choose a MANU Number (MANU mode)
 Use the scroll wheel to choose a test number.
Choose AUTO Number and MANU Number
(AUTO mode)
 Use the UP/DOWN cursors to highlight either the
AUTO number (automatic test) or MANU number
(step).
 Use the scroll wheel to select the AUTO/MANU
number.
