7. MAINTENANCE
The following instructions are used by qualified person only to avoid
electrical shock, do not perform any service other than contained in the
operation instructions unless you are qualified to do so.
7-1.Fuse Rating and type
If the fuse blows, the FUNCTION GENERATOR will not operate. Try
to determine and correct the cause of the blown fuse, then replace the fuse
with correct rating and type shown as below:
FUSE Rating and Type Rating Input
MODEL
115V 230V Watts VA
GFG-8215A T0.315A 250V T0.16A 250V 22 28
GFG-8216A T0.315A 250V T0.16A 250V 25 32
GFG-8217A T0.315A 250V T0.16A 250V 27 34
GFG-8219A T0.315A 250V T0.16A 250V 29 36
GFG-8250A T0.315A 250V T0.16A 250V 25 32
GFG-8255A T0.315A 250V T0.16A 250V 29 36
WARNING: For continued fire protection, replace only
with 250V fuse of the specified type and rating, and
disconnect the power cord before proceeding fuse
replacement.
FUNCTION GENERATOR-SERIES
INSTRUCTION MANUAL
34
7-2.Fuse Replacement Procedure
When you proceed calibration or maintenance of the Function
Generators, if you want to replace the fuse, the upper cover must be removed
according to the following steps:

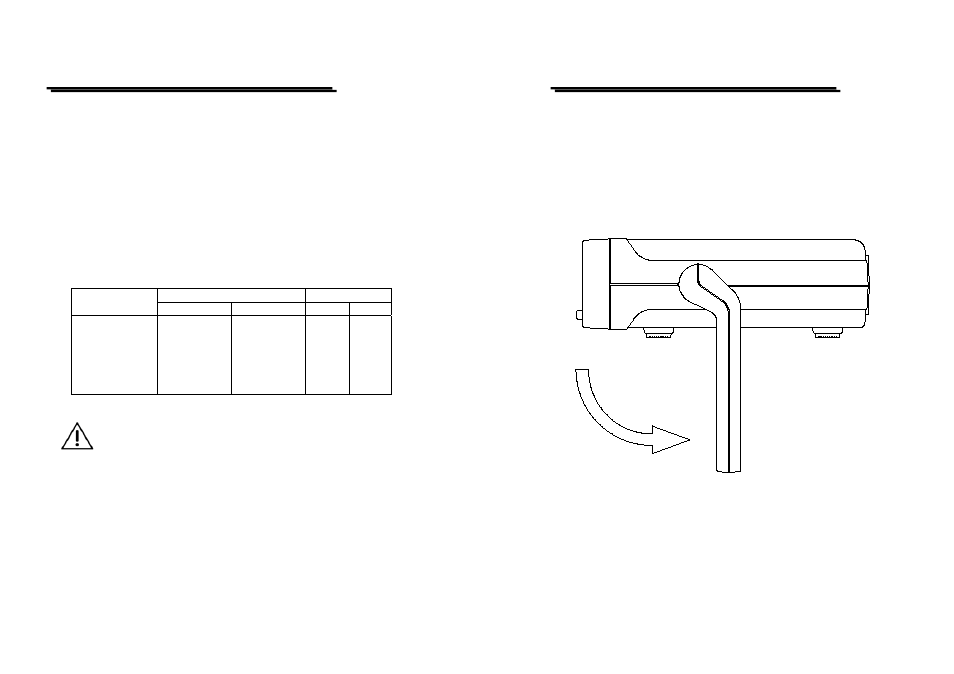

1).The handle must be turned downward 90 degrees first.
