GRC-1201 User Manual

11







































GRC-1201 User Manual

12

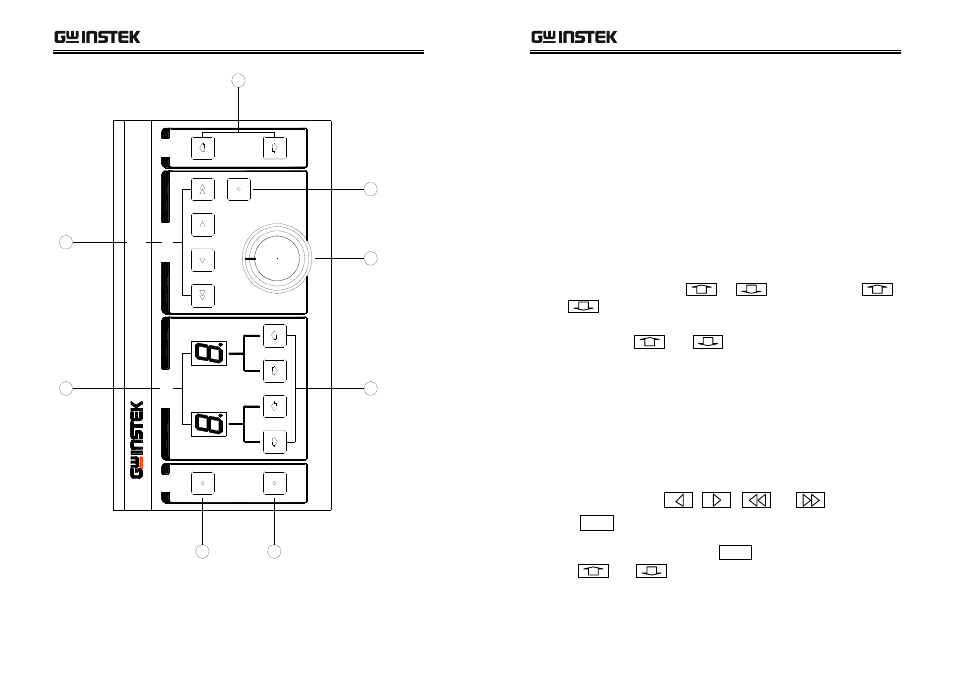

CONNECTION METHOD

Turn off the POWER SW of the signal generator , set the connector at
the tip of the GRC1201 cable to the REMOTE connector on the rear
panel of the signal generator , and turn on the POWER SW.
If information is not displayed correctly , turn off the POWER SW and
turn it on again.

OPERATON METHOD

(A) Each time the higher digit

or

key or lower digit

or

key in MEMORY block is pressed, the value of the

relevant digit of memory address increases or decreases by 1.

(B) The lower digit

and

keys in MEMORY block and

MOD, PILOT keys in MOD block have the same functions as those
keys on the signal generator front panel.

(C) The same memory address is displayed on the GRC1201 and on the

signal generator and the PILOT , MOD indicator in the MOD block
of GRC1201 shows the same status as that on the signal generator.

(D) Data must be written into memory in advance by use of keys on

signal generator. (See section 4-5(2) of GSG120/122 Operation
Manual.)

(E) Before using the rotary knob . move the cursor to the item to be

modified by use of the

,

,

and

key(s).

(F) If the LOCK key is pressed. the data value cannot be changed by

turning the rotary knob; that is . the data is fixed at the value
specified immediately before the LOCK key was pressed.

(G) The

and

KEYS in LEVEL block use to increase or

decrease the output levels (continuity).
