Section 3: programming options – Fire-Lite FCPS Series Field Charger/Power Supply User Manual
Page 19

FCPS-24FS Series Instruction Manual — P/N 51883-L8:J1 8/30/13
19
Section 3: Programming Options
This section describes the programming options available via DIP switch settings. The FCPS can
be field programmed using option DIP switch SW1 which is located in the lower center of the cir-
cuit board. Refer to the following illustration for switch location and DIP switch placement in the
ON and OFF positions.
Important: Change DIP switch settings only when all power (AC & DC) is removed.
Switches 1 through 7 shown
in OFF (Open) position
Switch 8 shown in
ON (Closed) position

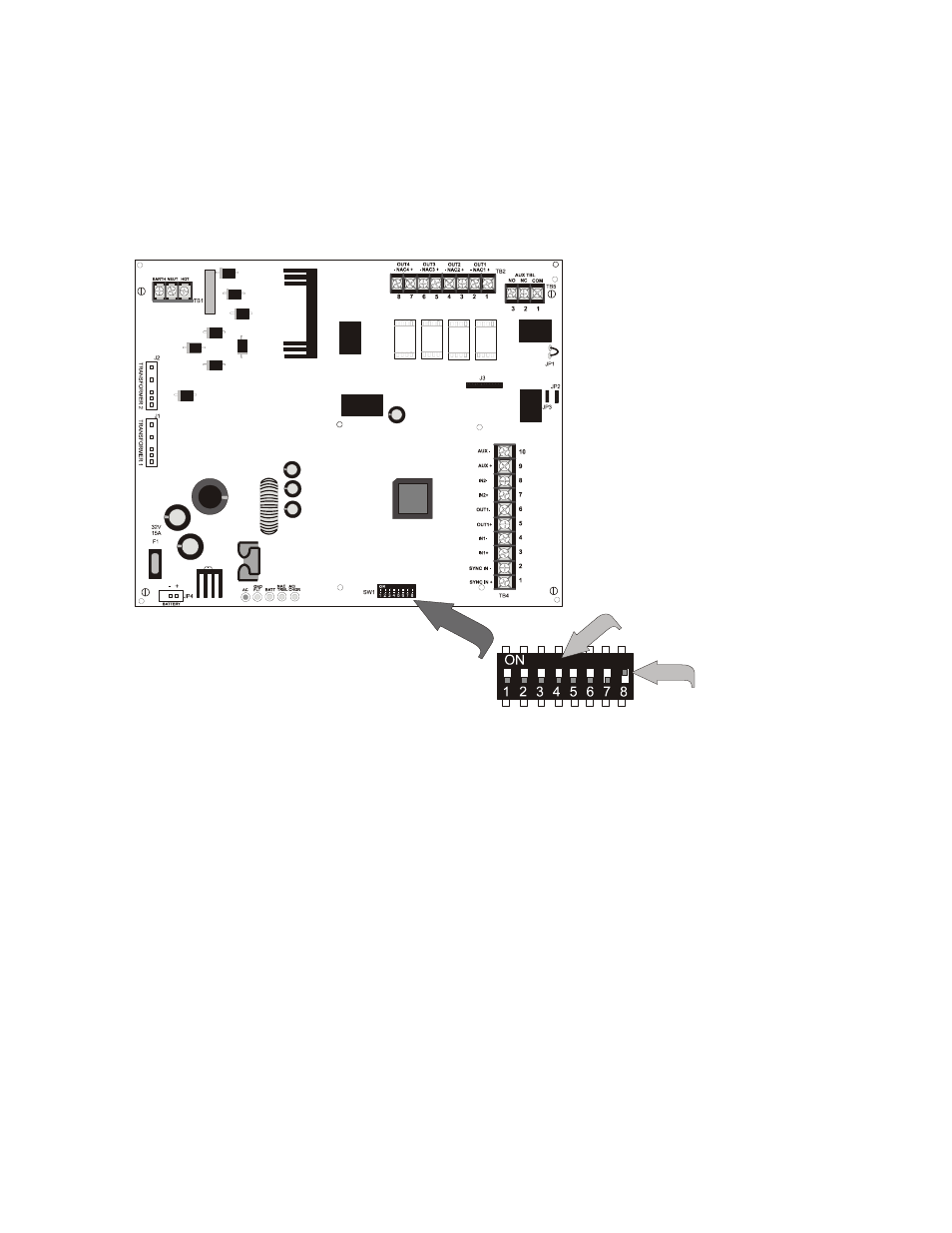

Figure 3.1 Field Programming DIP Switches
24
fsswitc.wmf
