s E r V I c E
ED2 & EU2 Series Operation & Care Manual • 23
Part numbers and drawings are subject to change without notice . Part numbers and drawings are subject to change without notice .
10
3
4
6
9
7
8
11
1
5
12
2
MoDEl > ED2(sys)-48 ED2(sys)-72 ED2(sys)-96
ItEM DEscrIPtIon Part no. Qty Part no. Qty Part no. Qty
1 PAnEL, BASE 1001859 1 1001860 1 1001861 1
2 FILLER, UPPER, REAR 1001862 1 1001863 1 1001864 1
3 FRAME WELD FR-26725 1 FR-26726 1 FR-26727 1
4 EnD PAnEL, RH black 1001852 1 1001852 1 1001852 1
stainless steel 1002055 1 1002055 1 1002055 1
custom color 1002050 1 1002050 1 1002050 1
5 BRACKET, MOUnTInG, LEG 1001915 2 1001915 2 1001915 2
6 FROnT PAnEL black 1001854 1 1001855 1 1001856 1
stainless steel 1002057 1 1002056 1 1002059 1
custom color 1002052 1 1002053 1 1002679 1
7 BUMPER, RAIL 4ft (1 .22m) 1010952 1 — — — —
6ft (1 .83m) — — 1010953 1 — —
8ft (2 .44m) — — — — 1010954 1
8 BUMPER, EnD CAP BM-29064 2 BM-29064 2 BM-29064 2
9 BUMPER, TRACK 1010949 1 1010950 1 1010951 1
10 EnD PAnEL, LH black 1001853 1 1001853 1 1001853 1
stainless steel 1002056 1 1002056 1 1002056 1
custom color 1002051 1 1002051 1 1002051 1
11 COnTROL PAnEL SPOT ASSEMBLY 5001211 1 5001211 1 5001211 1
12 ACCESS PAnEL 1001858 1 1001858 1 1001858 1
13 TERMInAL BLOCK BK-3023 2 BK-3023 2 BK-3023 2

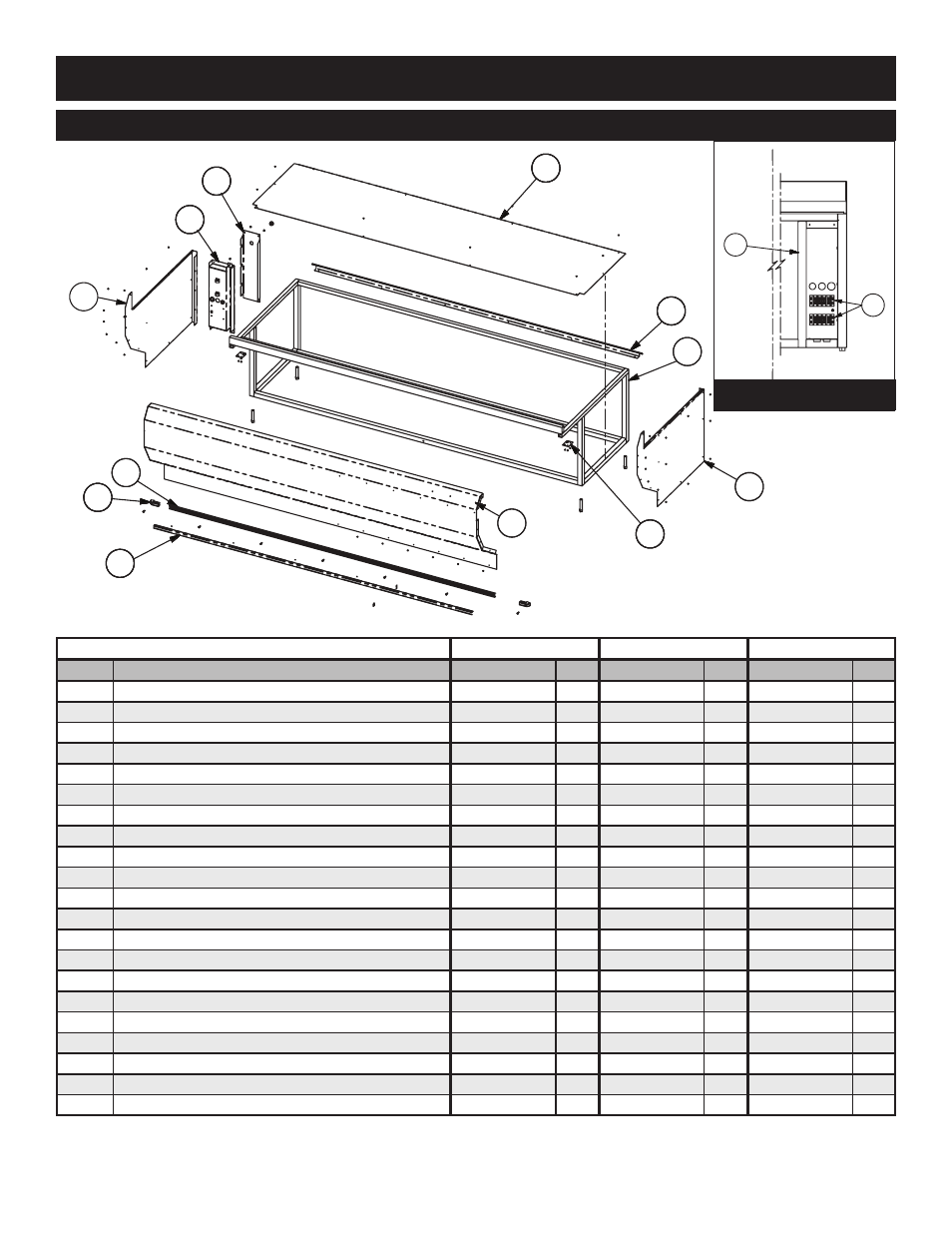

B a s E a s s E M B l y ( E D 2 s y s - 9 6 s h o w n )
11
13
control panel rear view
(
access panel removed
)
