o P E r a t I n G I n s t r u c t I o n s
ED2 & EU2 Series Operation & Care Manual • 11
stanDarD Pan DIVIDEr anD sEParator Bars
PArt NO.
DEsCrIPtION
DIMENsIONs
(W
X
L)
48
72
96
1002584 FULL, HALF AND THIRD SIZE-LONG
2-1/2" x 28" (64mm x 711mm)
4
4
—
1002590 FULL, HALF AND THIRD SIZE-LONG
1-13/16" x 28" (46mm x 711mm)
—
—
6
1002621 FULL, HALF AND THIRD SIZE-SHORT
1-15/32" x 13-1/2" (37mm x 343mm)
3
5
7
11318 FULL, HALF AND THIRD SIZE-SHORT
1" x 13-1/2" (25mm x 343mm)
9
15
21

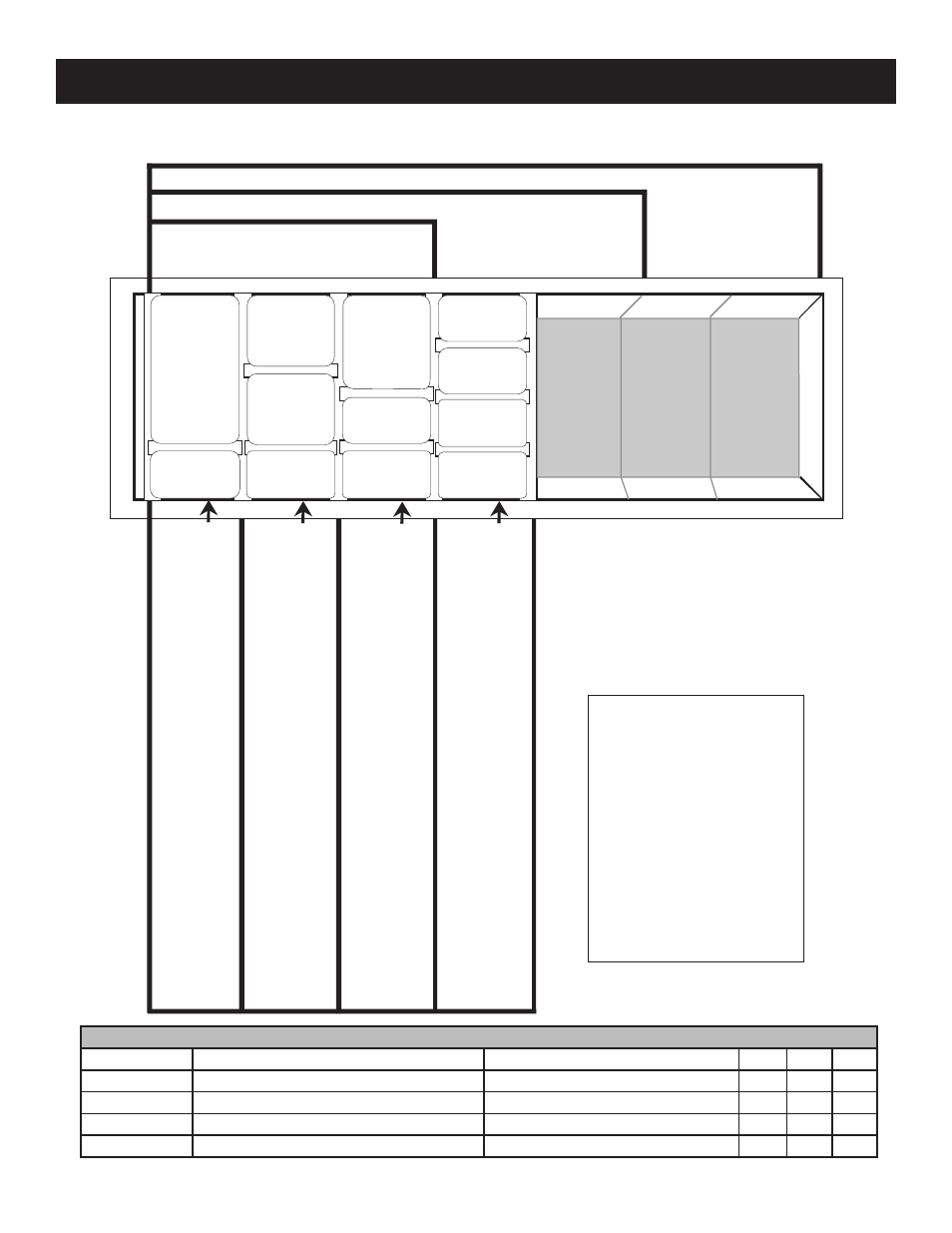

P a n c o n f i G u r a t i o n s • H e a t e d d i s P l a y c a s e s
4 8 M o D E l s
3 PAN ZONEs
7 2 M o D E l s
5 PAN ZONEs
9 6 M o D E l s
7 PAN ZONEs
fUll-sIZE
PAN
GN 1/1
ONE-hAlf
sIZE PAN
GN 1/2
ONE-thIrD
sIZE PAN
GN 1/3
ONE-hAlf
sIZE PAN
tWO-thIrDs
sIZE PAN
GN 2/3
ONE-thIrD
sIZE PAN
ONE-thIrD
sIZE PAN
ONE-thIrD
sIZE PAN
ONE-thIrD
sIZE PAN
ONE-thIrD
sIZE PAN
ONE-thIrD
sIZE PAN
ONE-thIrD
sIZE PAN
NOtE: ADDItIONAl PAN sEPArAtOr
BArs MAy BE rEQUIrED
tO ACCOMMODAtE
MAXIMUM CAPACItIEs.
Four (4) OnE-THIRD SIZE PAnS per pan zone .
— 48 MODELS: Up to 12 One-Third Size Pans per display case
— 72 MODELS: Up to 20 One-Third Size Pans per display case
— 96 MODELS: Up to 28 One-Third Size Pans per display case
One (1) TWO-THIRDS SIZE PAn and two (2) OnE-THIRD SIZE PAnS per pan zone .
— 48 MODELS: Up to 3 Two-Thirds Size Pans with 6 One-Third Size Pans per display case
— 72 MODELS: Up to 5 Two-Thirds Size Pans with 10 One-Third Size Pans per display case
— 96 MODELS: Up to 7 Two-Thirds Size Pans with 14 One-Third Size Pans per display case
One (1) FULL-SIZE PAn and one (1) OnE-THIRD SIZE PAn per pan zone .
— 48 MODELS: Up to 6 One-Half Size Pans with 3 One-Third Size Pans per display case
— 72 MODELS: Up to 5 One-Half Size Pans with 5 One-Third Size Pans per display case
— 96 MODELS: Up to 7 One-Half Size Pans with 7 One-Third Size Pans per display case
One (1) FULL-SIZE PAn and one (1) OnE-THIRD SIZE PAn per pan zone .
— 48 MODELS: Up to 3 Full-Size Pans with 3 One-Third Size Pans per display case
— 72 MODELS: Up to 5 Full-Size Pans with 5 One-Third Size Pans per display case
— 96 MODELS: Up to 7 Full-Size Pans with 7 One-Third Size Pans per display case
stANDArD PAN sIZEs
fUll-sIZE PAN*
Gn1/1
12" x 20" x 2-1/2"
(325mm x 530mm x 65mm)
ONE-hAlf sIZE PAN* Gn1/2
12" x 10" x 2-1/2"
(325mm x 265mm x 65mm)
tWO-thIrDs sIZE PAN* Gn2/3
12" x 14" x 2-1/2"
(325mm x 352mm x 65mm)
ONE -thIrD sIZE PAN* Gn1/3
12" x 6" x 2-1/2"
(325mm x 176mm x 65mm)
*Will also accept 4" (100mm) pans .
