o P E r a t I n G I n s t r u c t I o n s
ED2 & EU2 Series Operation & Care Manual • 12
stanDarD Pan DIVIDEr anD sEParator Bars
PArt NO. DEsCrIPtION DIMENsIONs (W
X
L) 72 96
1002584 FULL, HALF AND THIRD SIZE-LONG 2-1/2" x 28" (64mm x 711mm) 4 —
1002590 FULL, HALF AND THIRD SIZE-LONG 1-13/16" x 28" (46mm x 711mm) — 6
1002621 FULL, HALF AND THIRD SIZE-SHORT 1-15/32" x 13-1/2" (37mm x 343mm) 5 7
11318 FULL, HALF AND THIRD SIZE-SHORT 1" x 13-1/2" (25mm x 343mm) 15 21

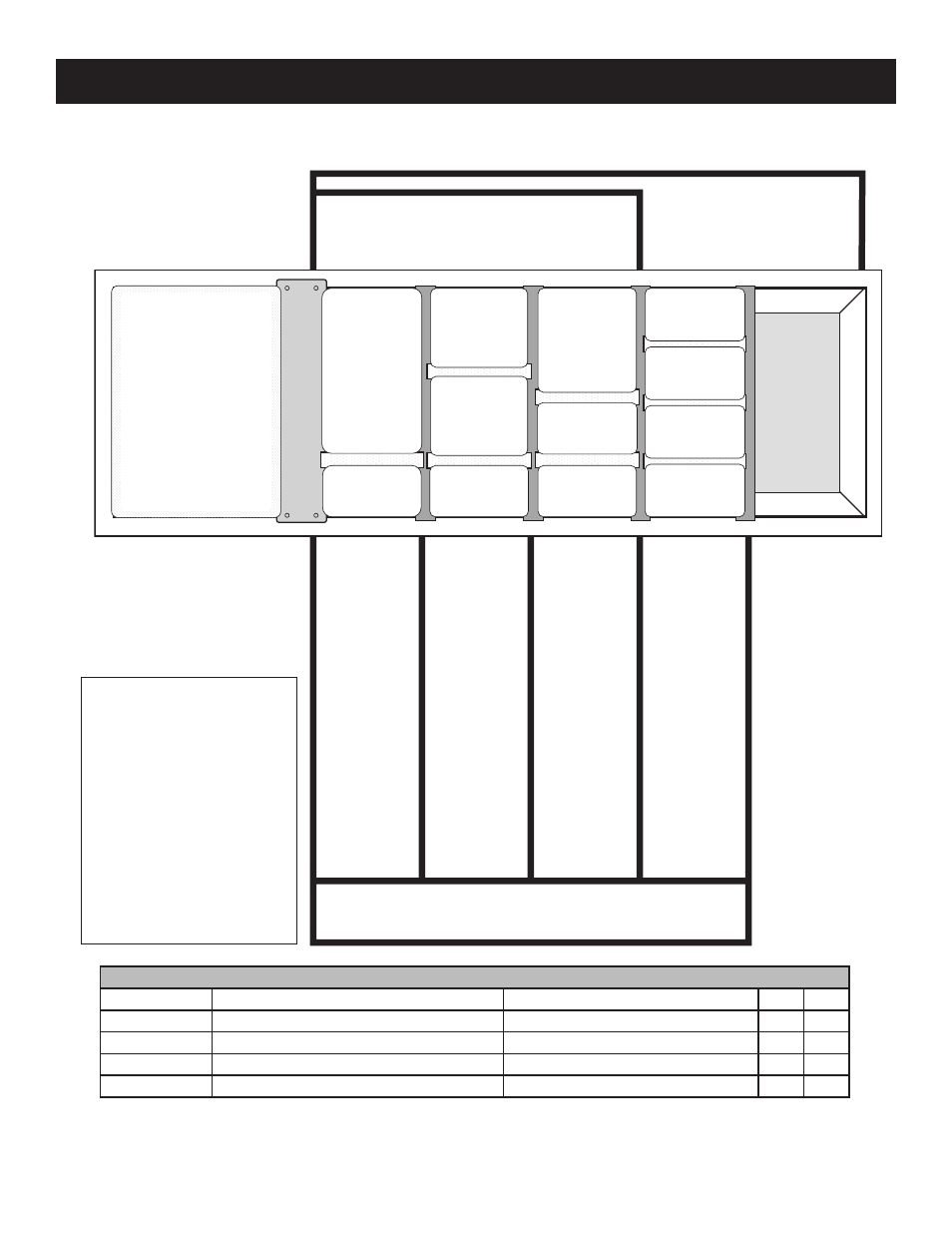

P a n c o n f i G u r a t i o n s • s e l f - s e r v e H e a t e d d i s P l a y c a s e s
➔ ➔ ➔ ➔
➔
7 2 M o D E l s
( 7 2 - / P L & 7 2 - / P R )
3 PAN ZONEs
9 6 M o D E l s
( 9 6 - / P L & 9 6 - / P R )
5 PAN ZONEs
fUll-sIZE
PAN
GN 1/1
ONE-hAlf
sIZE PAN
GN 1/2
ONE-thIrD
sIZE PAN
GN 1/3
ONE-hAlf
sIZE PAN
tWO-thIrDs
sIZE PAN
GN 2/3
ONE-thIrD
sIZE PAN
ONE-thIrD
sIZE PAN
ONE-thIrD
sIZE PAN
ONE-thIrD
sIZE PAN
ONE-thIrD
sIZE PAN
ONE-thIrD
sIZE PAN
ONE-thIrD
sIZE PAN
Four (4) OnE-THIRD SIZE PAnS per pan zone .
— 72 MODELS:
Up to 12 One-Third Size Pans per display case
— 96 MODELS:
Up to 20 One-Third Size Pans per display case
One (1) TWO-THIRD SIZE PAnS and Two (2) OnE-THIRD SIZE PAnS per pan zone
— 72 MODELS:
Up to 3 Two-Thirds Size Pans with 6 One-Third Size Pans per display case
— 96 MODELS:
Up to 5 Two-Thirds Size Pans with 10 One-Third Size Pans per display case
Two (2) OnE-HALF SIZE PAnS and One (1) OnE-THIRD SIZE PAnS per pan zone
— 72 MODELS:
Up to 6 One-Half Size Pans with 3 One- Third Size Pans per display case
— 96 MODELS:
Up to 10 One-Half Size Pans with 5 One-Third Size Pans per display case
One (1) FULL-SIZE PAnS and One (1) OnE-THIRD SIZE PAnS per pan zone
— 72 MODELS:
Up to 3 Full-Size Pans with 3 One- Third Size Pans per display case
— 96 MODELS:
Up to 5 Full-Size Pans with 5 One- Third Size Pans per display case
sElf-sErVE
PAN ZONE
PAn SIZE: ITEM #1000521
21-5/8" x 26-3/8 x 2"
(549mm x 670 mm x 51mm)
FULL-SIZE SHEET PAnS: 18" x 26" x 1"
— 72 MODELS: 2 Sheets Pans per display case
— 96 MODELS: 3 Sheets Pans per display case
shEEt PANs
(nOT SHOWn)
stANDArD PAN sIZEs
fUll-sIZE PAN* Gn1/1
12" x 20" x 2-1/2"
(325mm x 530mm x 65mm)
ONE-hAlf sIZE PAN* Gn1/2
12" x 10" x 2-1/2"
(325mm x 265mm x 65mm)
tWO-thIrDs sIZE PAN* Gn2/3
12" x 14" x 2-1/2"
(325mm x 352mm x 65mm)
ONE -thIrD sIZE PAN* Gn1/3
12" x 6" x 2-1/2"
(325mm x 176mm x 65mm)
*Will also accept 4" (100mm) pans .
