880-N1R
880-N1R Instruction Manual Rev. 0.0 Page 27 of 38

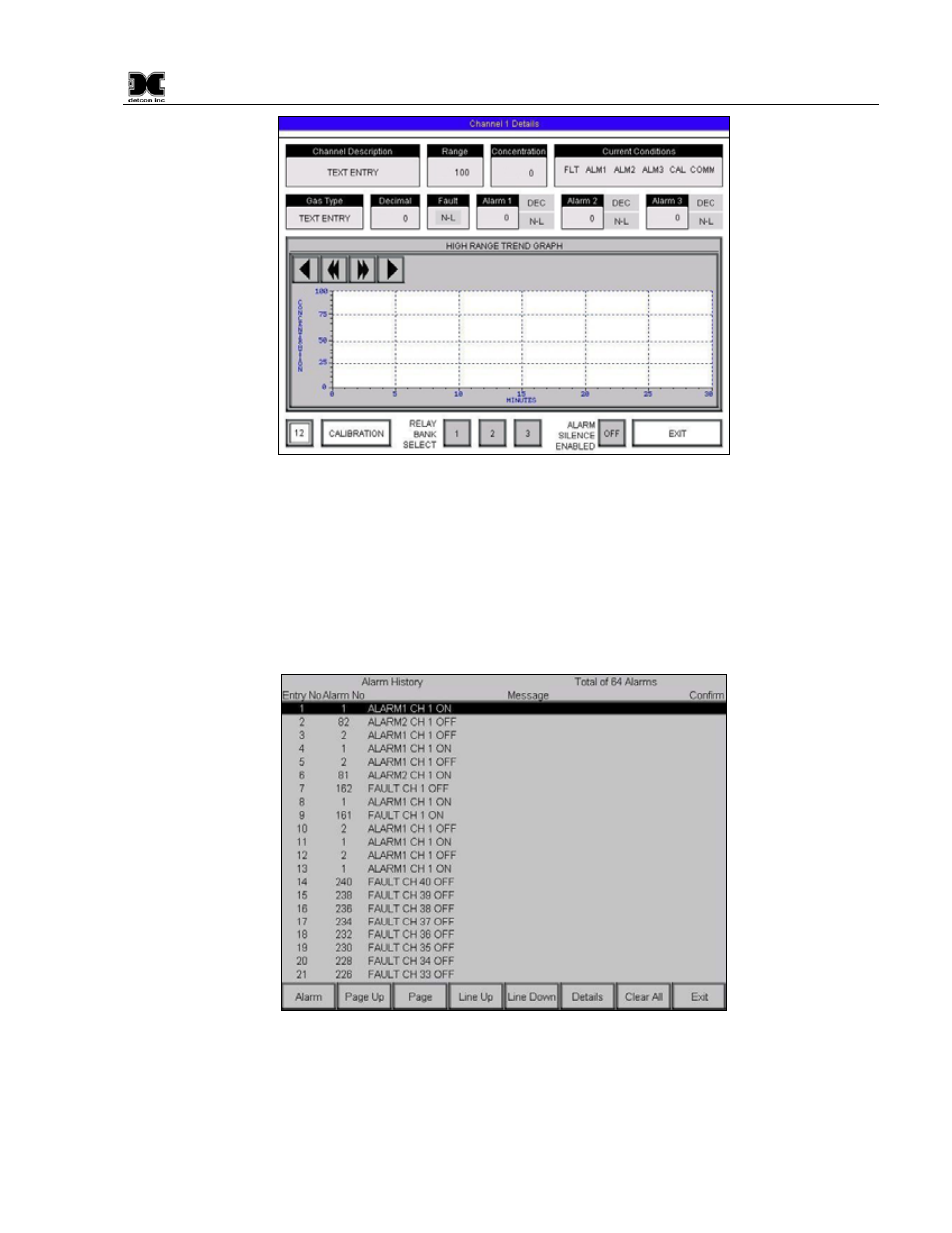

Figure 35 Channel Details Screen
5.4 Alarm History Screen
When alarms are initiated, the unit stores information about these alarms into memory. If a USB Drive is
installed in the back of the display, this information is written onto the drive for permanent storage (USB
Drive sold separately). The information can also be viewed on the “Alarm History Screen” by using the wand
to select the “Alarm History” button on the Main Screen. All alarms that have been cleared or acknowledge
may be deleted by selecting the “Clear All” button on the Alarm History Screen.
Figure 36 Alarm History Screen
The Alarm History Screen displays Fault and Alarm events throughout operation of the unit (Figure 36).
Navigation buttons located at the bottom of the page allow the user to view all logged data. The view can be
changed from Alarm History to Alarm Count, with a detail button that allows viewing more information on
each event recorded.
