3 battery backup - auxiliary 24vdc input, 4 initial power checks, Battery backup - auxiliary 24vdc input – Detcon 880S-N1R User Manual

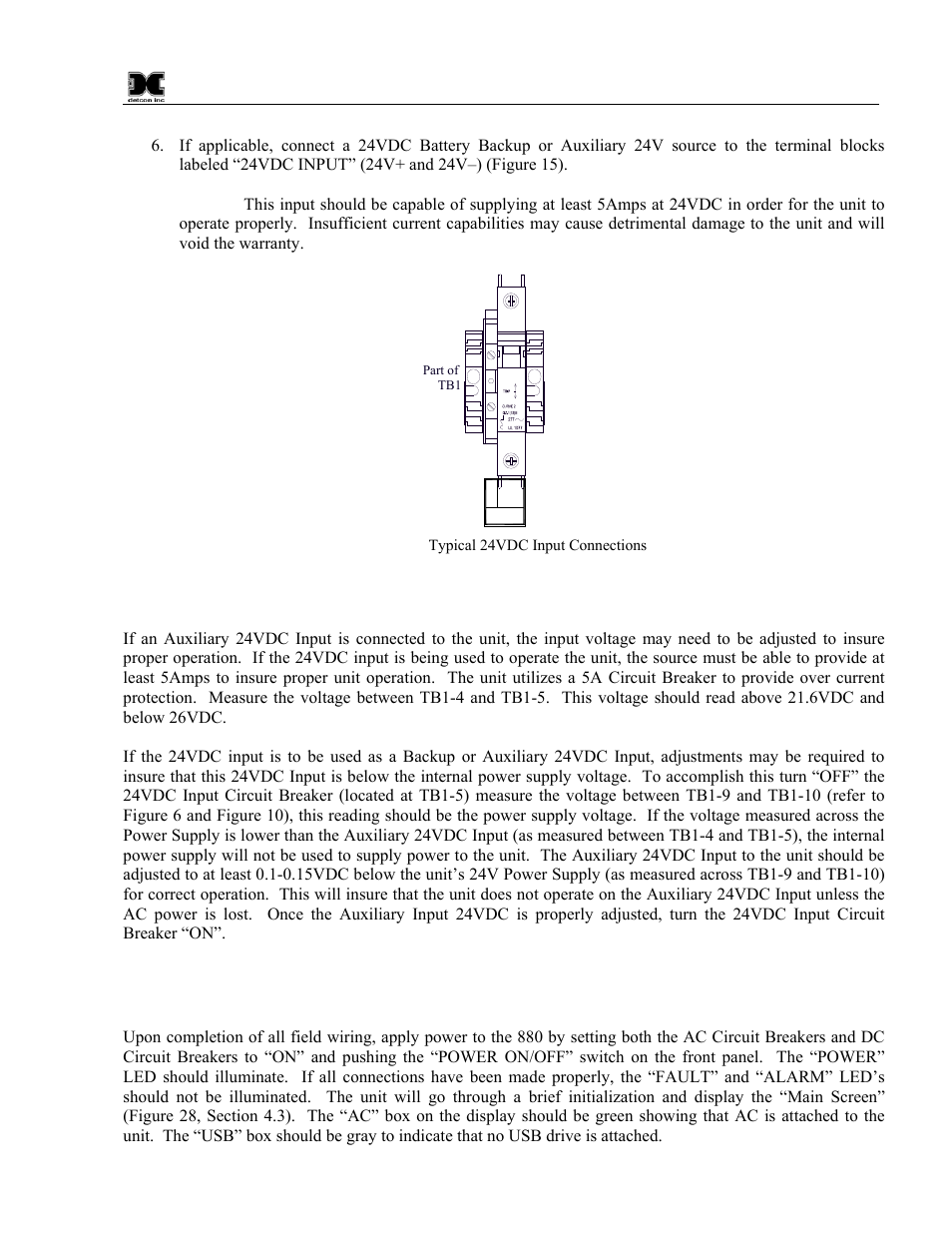

Page 15: Initial power checks, Figure 15 typical 24vdc input connections
